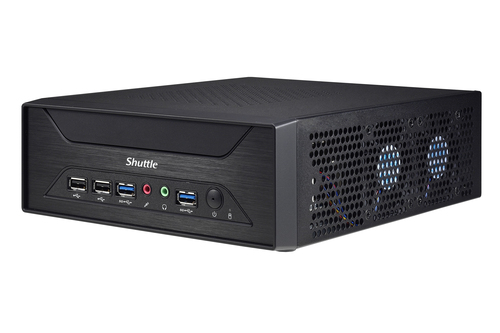

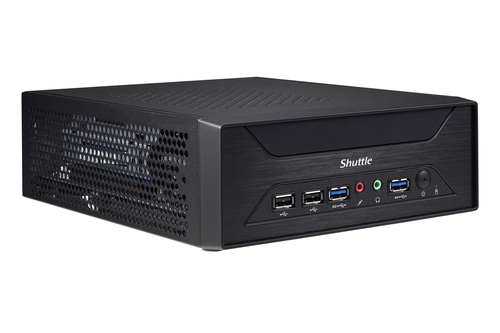

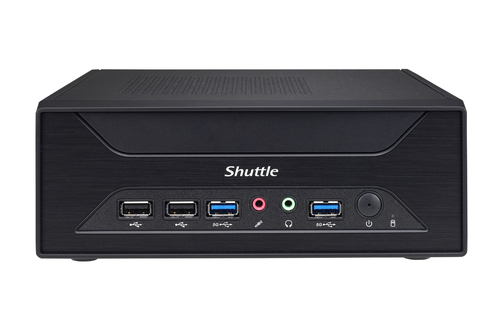

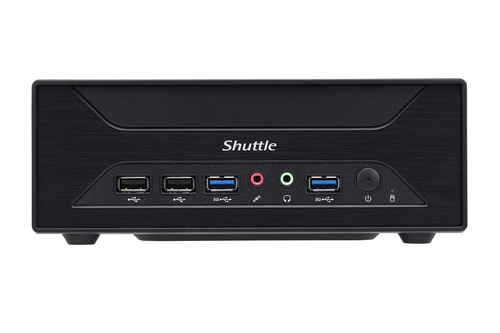

Shuttle XPC slim Barebone XH510G - S1200, Intel H510, 1xDP, 1xHDMI, 1x PCI-E 16X, 1x LAN
Shuttle

XPC slim Barebone XH510G - S1200, Intel H510, 1xDP, 1xHDMI, 1x PCI-E 16X, 1x LAN

1x 2.5", 2x M.2, 24/7 permanent operation

Model XH510GEAN 887993005041

66 specifications
  • TypePC barebone
  • OSNo
  • Weight3.2 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
3.2 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
XH510G
Part number
XH510G
EAN / UPC
887993005041
Also known as
Shuttle XPC slim Barebone XH510G - S1200, Intel H510, 1xDP, 1xHDMI, 1x PCI-E 16X, 1x LAN, 1x 2.5", 2x M.2, 24/7 permanent operation

Specifications

66 specifications in 17 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Supported memory clock speeds2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfaceM.2, Serial ATA III
NVMeYes
Number of storage drives supported2

Graphics

On-board graphics cardYes
Graphics card familyIntel

Performance

Motherboard chipsetIntel H510
Processor socketLGA 1200 (Socket H5)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Trusted Platform Module (TPM)Yes
Audio output channels7.1 channels

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I219-LM

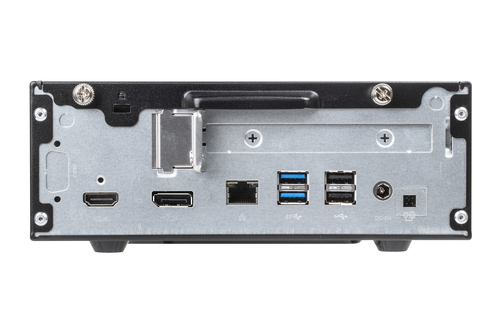

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0a
DisplayPorts quantity1
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots1

Design

Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Product typePC barebone

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeExternal AC adapter
AC adapter output current9.23 A
AC adapter output voltage19.5 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply180 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width250 mm
Depth200 mm
Height78.5 mm
Weight3.2 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
