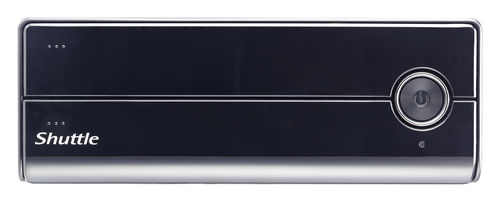

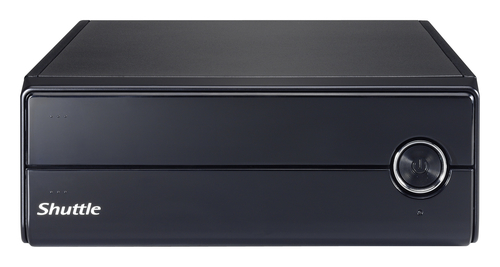

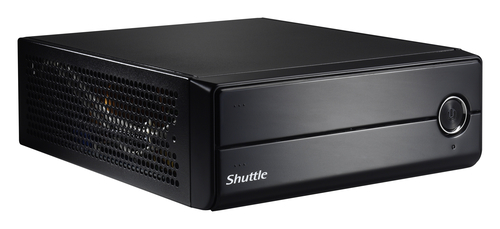

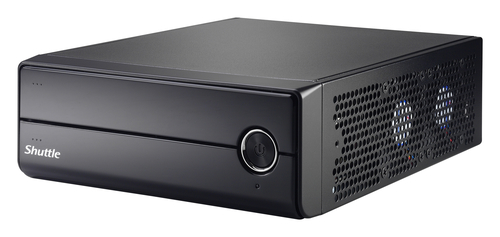

Shuttle XPС slim XH310RV Black Intel® H310 LGA 1151 (Socket H4)
Shuttle

XPС slim XH310RV Black Intel® H310 LGA 1151 (Socket H4)

Model XH310RVPart no. PIB-XH310RV21EAN 887993001623

68 specifications
  • TypePC barebone
  • OSNo
  • Weight2.2 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
2.2 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
XH310RV
Part number
PIB-XH310RV21
EAN / UPC
887993001623, 887993002637
Also known as
Shuttle XPС slim XH310RV Black Intel® H310 LGA 1151 (Socket H4)

Specifications

68 specifications in 17 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceM.2, Serial ATA III
Card reader integratedNo

Graphics

On-board graphics cardYes
Graphics card familyIntel

Performance

Motherboard form factormini ITX
Motherboard chipsetIntel® H310
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
BIOS typeUEFI AMI
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I211

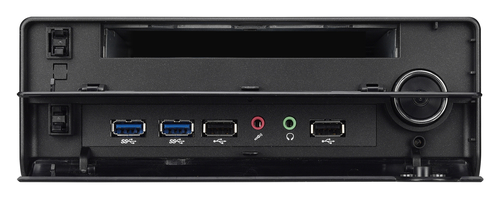

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
Microphone inYes
Headphone outputs2
COM ports quantity2
Ethernet LAN (RJ-45) ports2

Design

Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
SafetyETL, CB, BSMI

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84713000

Certificates

CertificationFCC, CE, BSMI, C-Tick, RoHS, ErP

Power

Power supply typeExternal AC adapter
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width242 mm
Depth200 mm
Height72.5 mm
Weight2.2 kg
Package weight3.5 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo

Other features

Country of originChina
