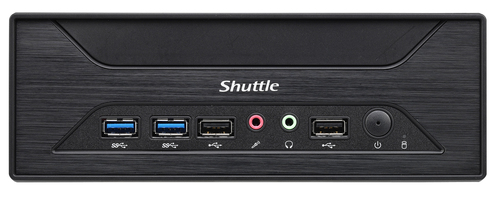

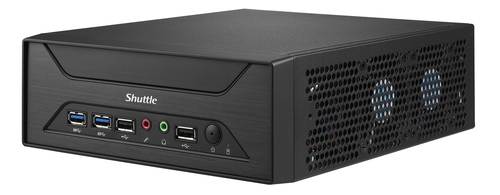

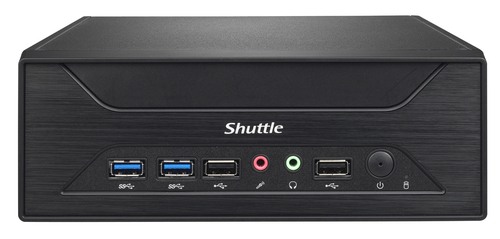

XPС slim Barebone XH270 black, LGA 1151, Intel H270, HD-Graphics
120W
Model XH270Part no. PIB-XH27011EAN 887993001340
73 specifications
- TypePC barebone
- OSNo
- Weight2.2 kg
- ColourBlack
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- PC barebone
- OS
- No
- Weight
- 2.2 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XH270
- Part number
- PIB-XH27011
- EAN / UPC
- 887993001340
- Also known as
- Shuttle XPС slim Barebone XH270 black, LGA 1151, Intel H270, HD-Graphics, 120W
Specifications
73 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |

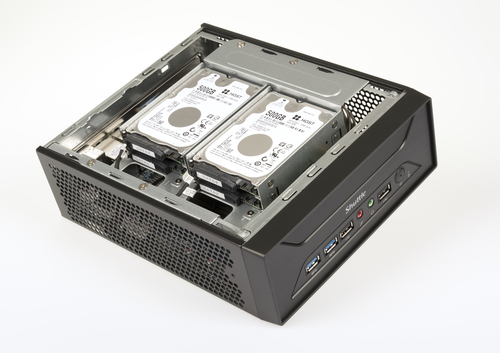

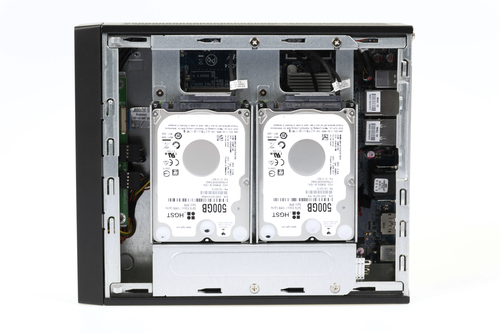

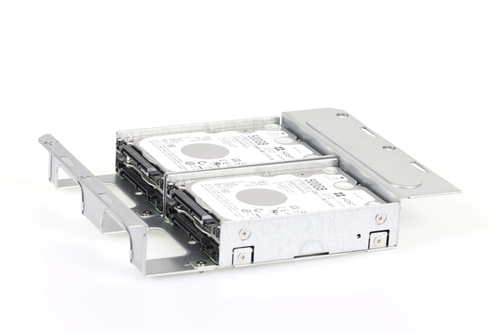

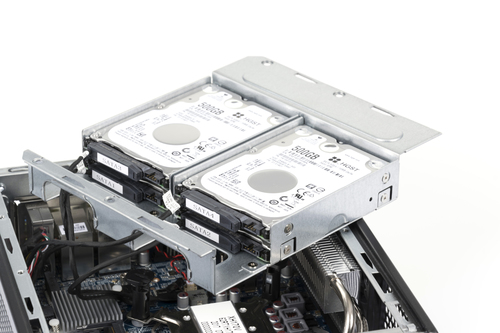

Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel® H270 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| BIOS type | UEFI AMI |
| Audio output channels | 5.1 channels |
| Audio system | HD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |

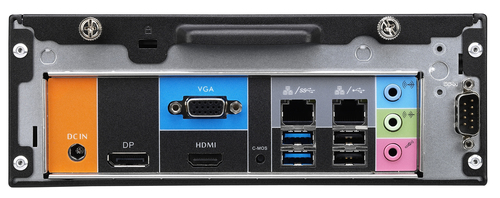

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 3L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
| Safety | CB, BSMI, ETL |
Processor special features
| Specification | Value |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 6.32 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 200 mm |
| Height | 72 mm |
| Weight | 2.2 kg |
| Package weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
