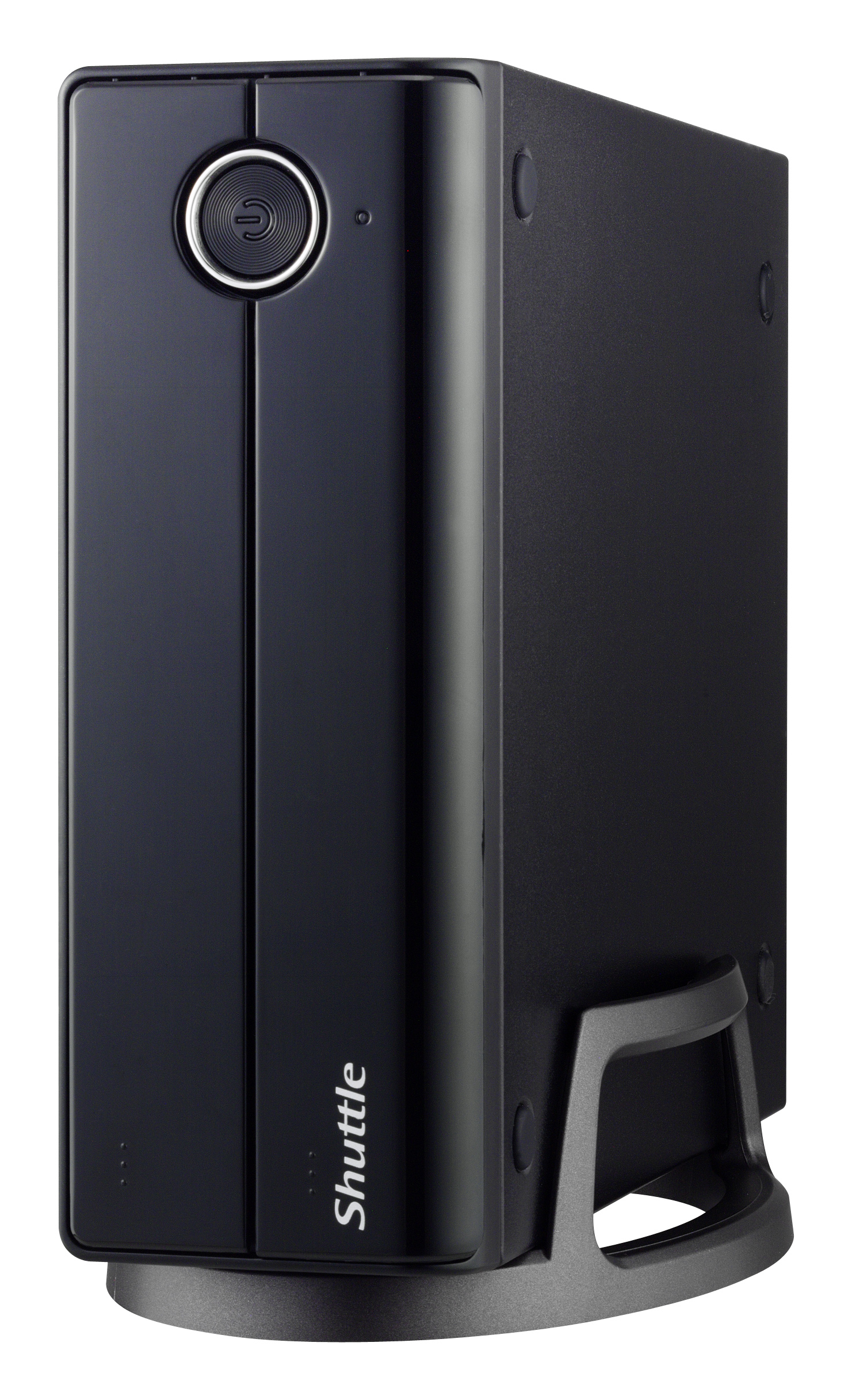

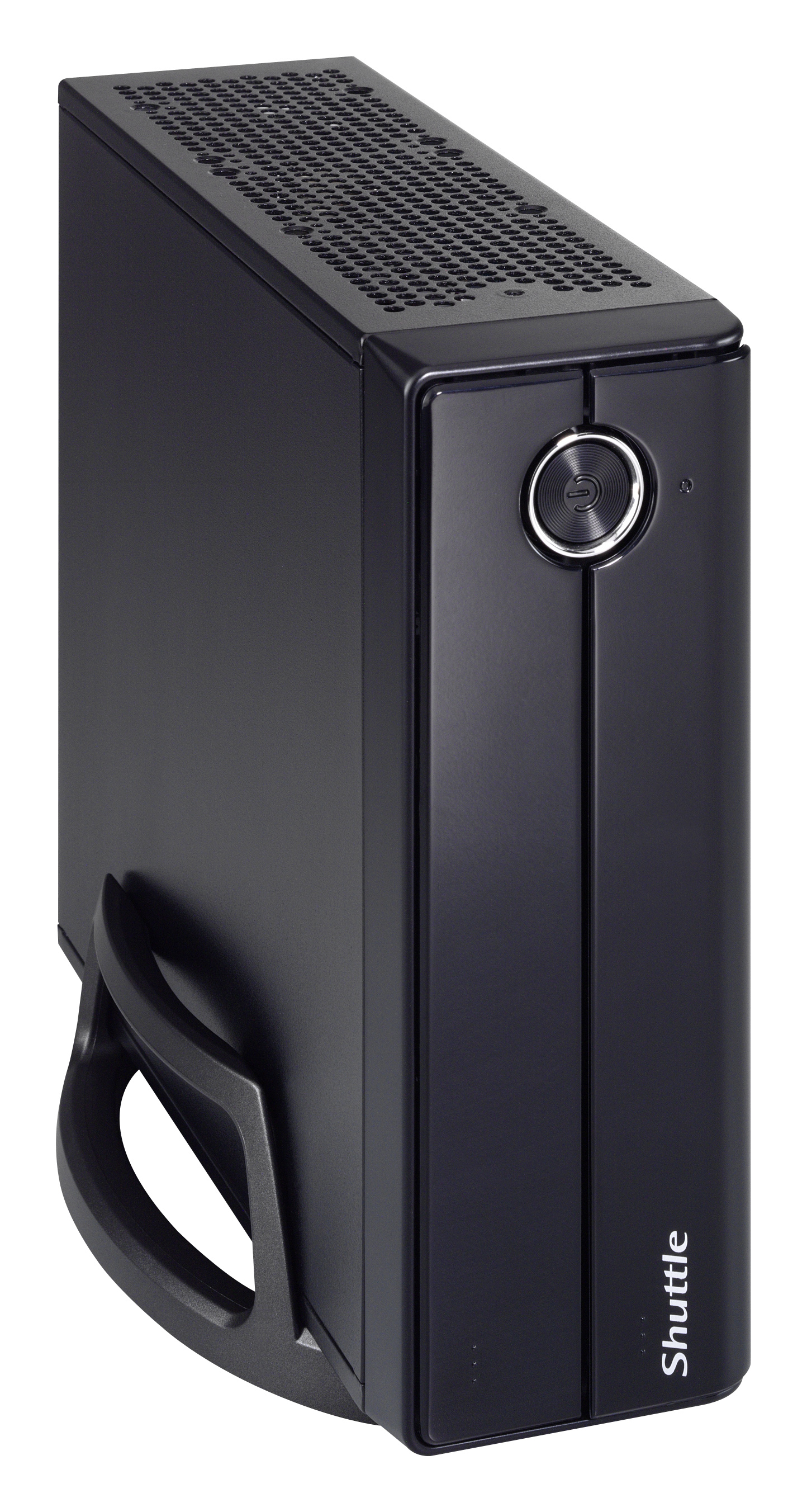

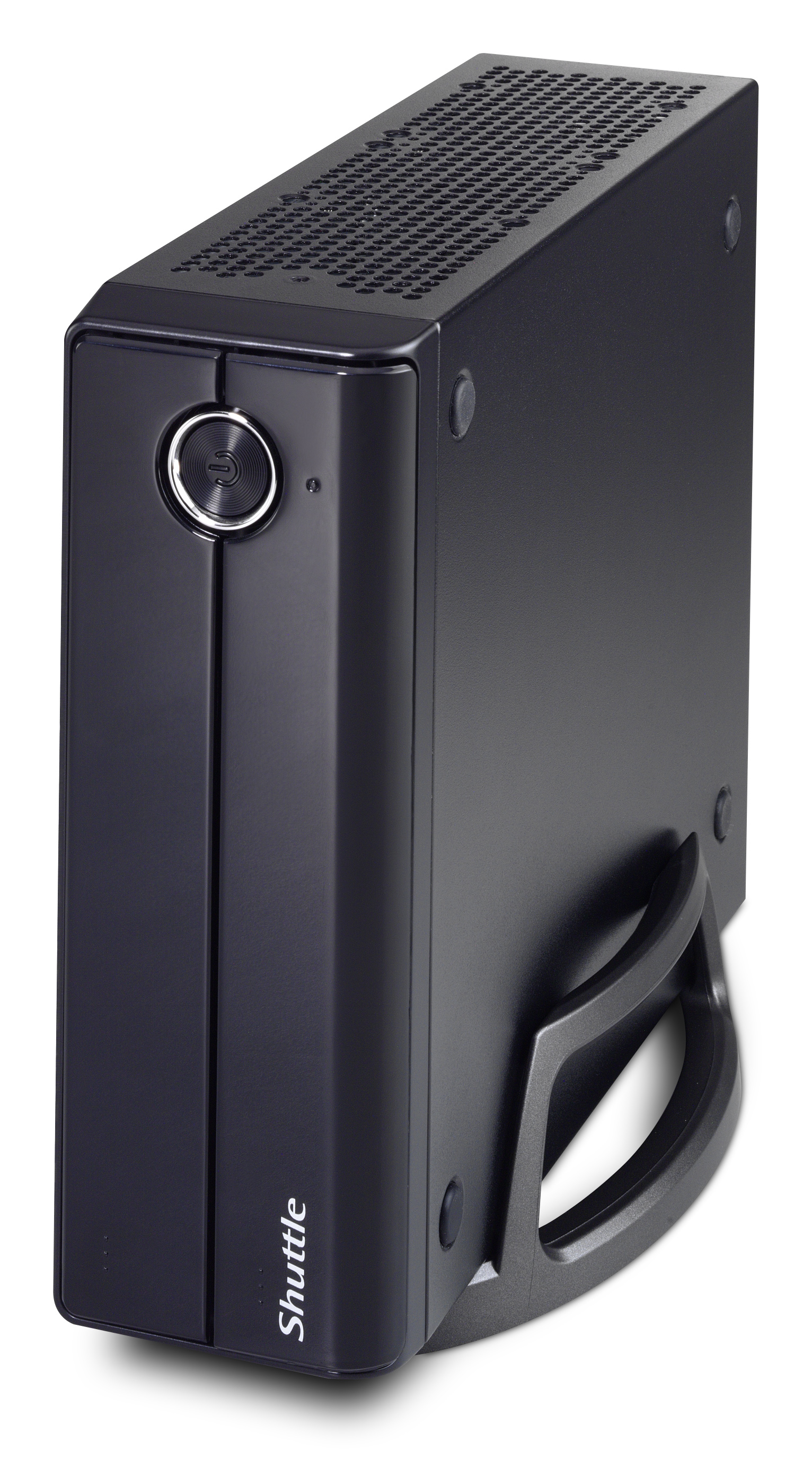

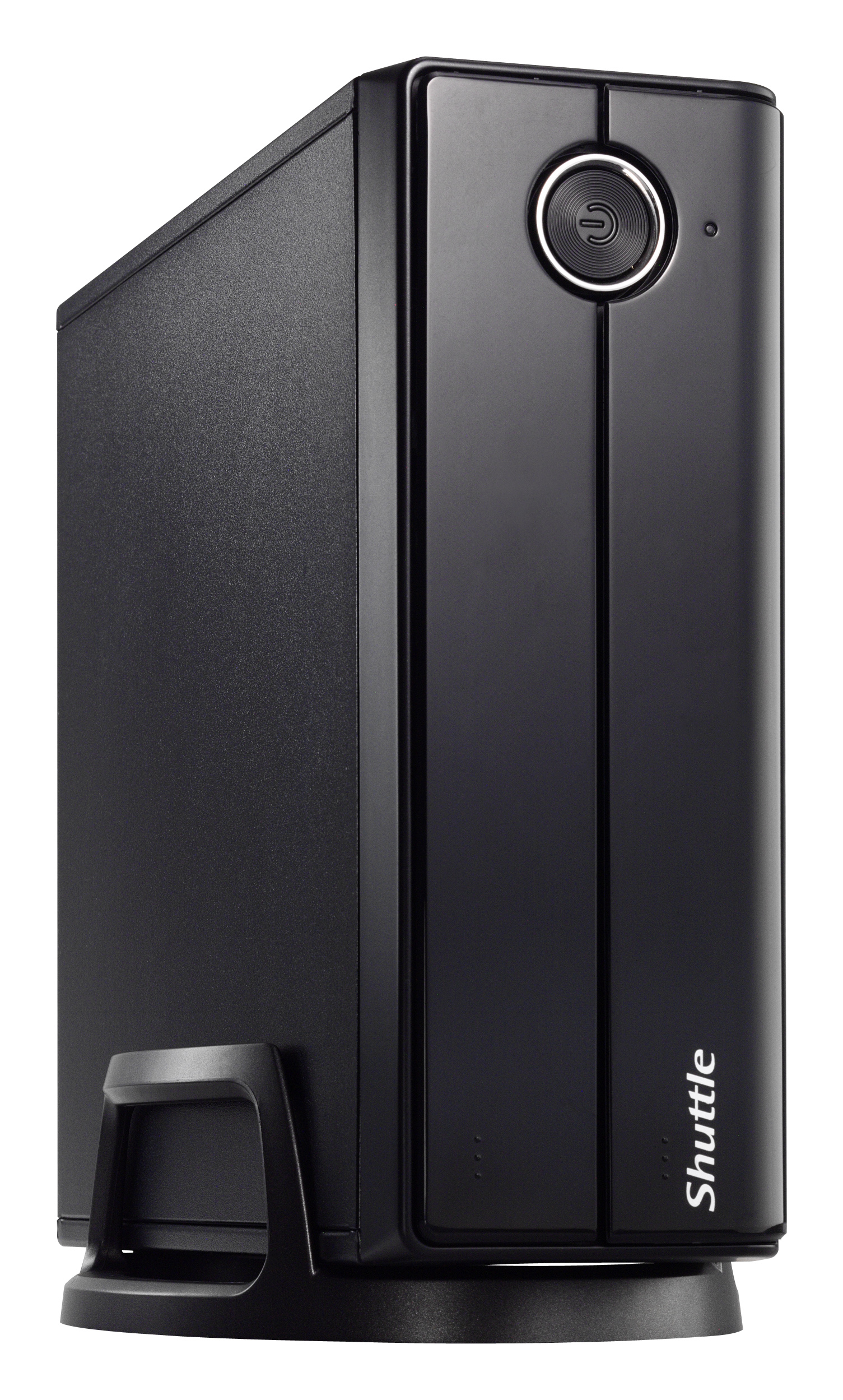

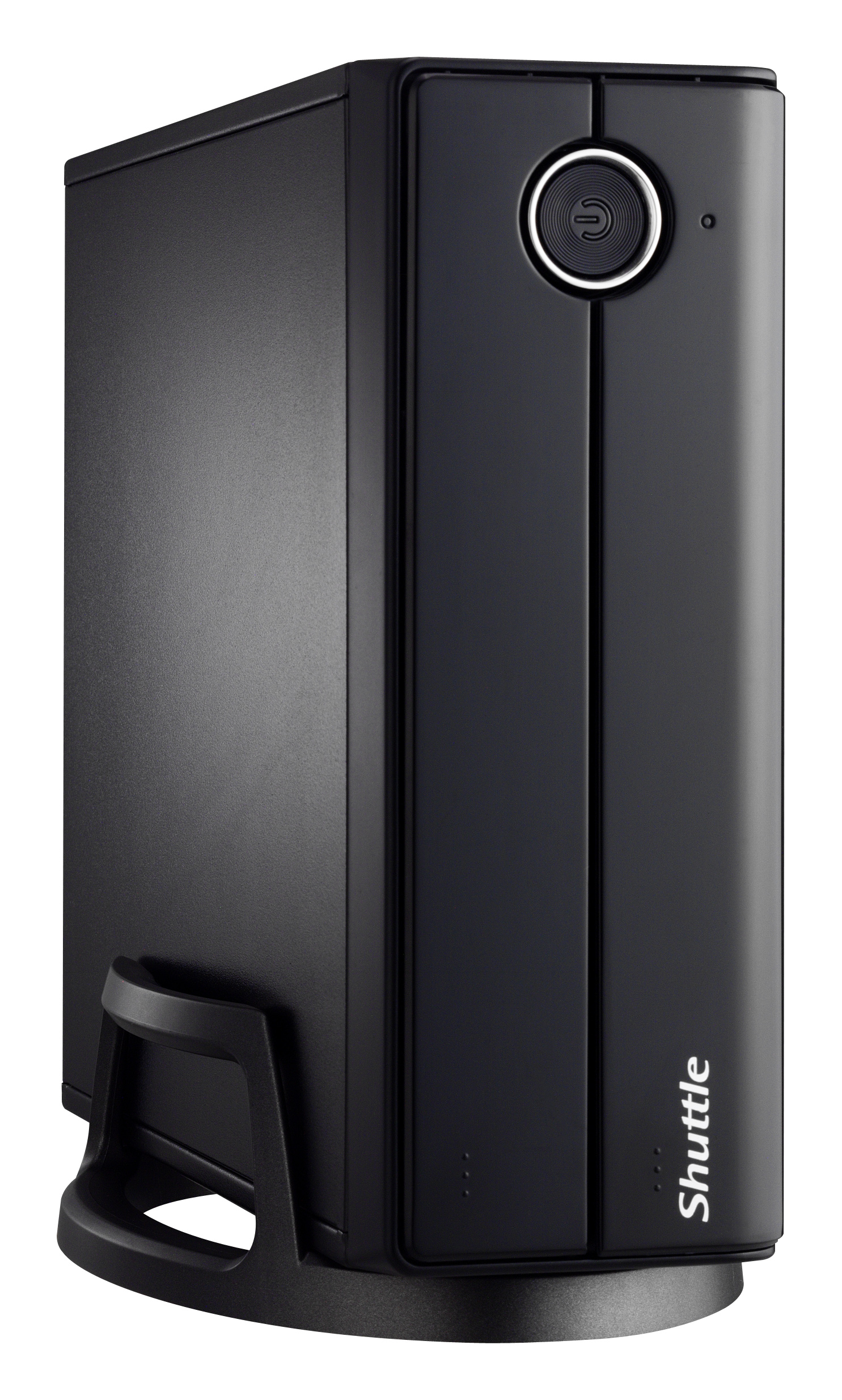

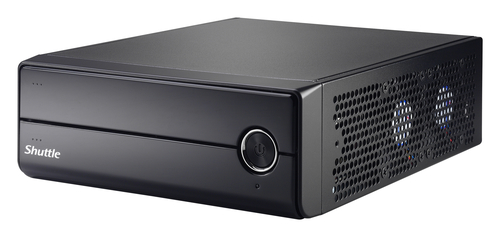

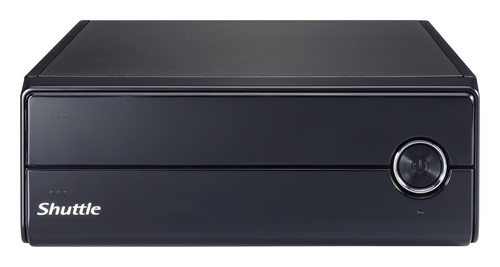

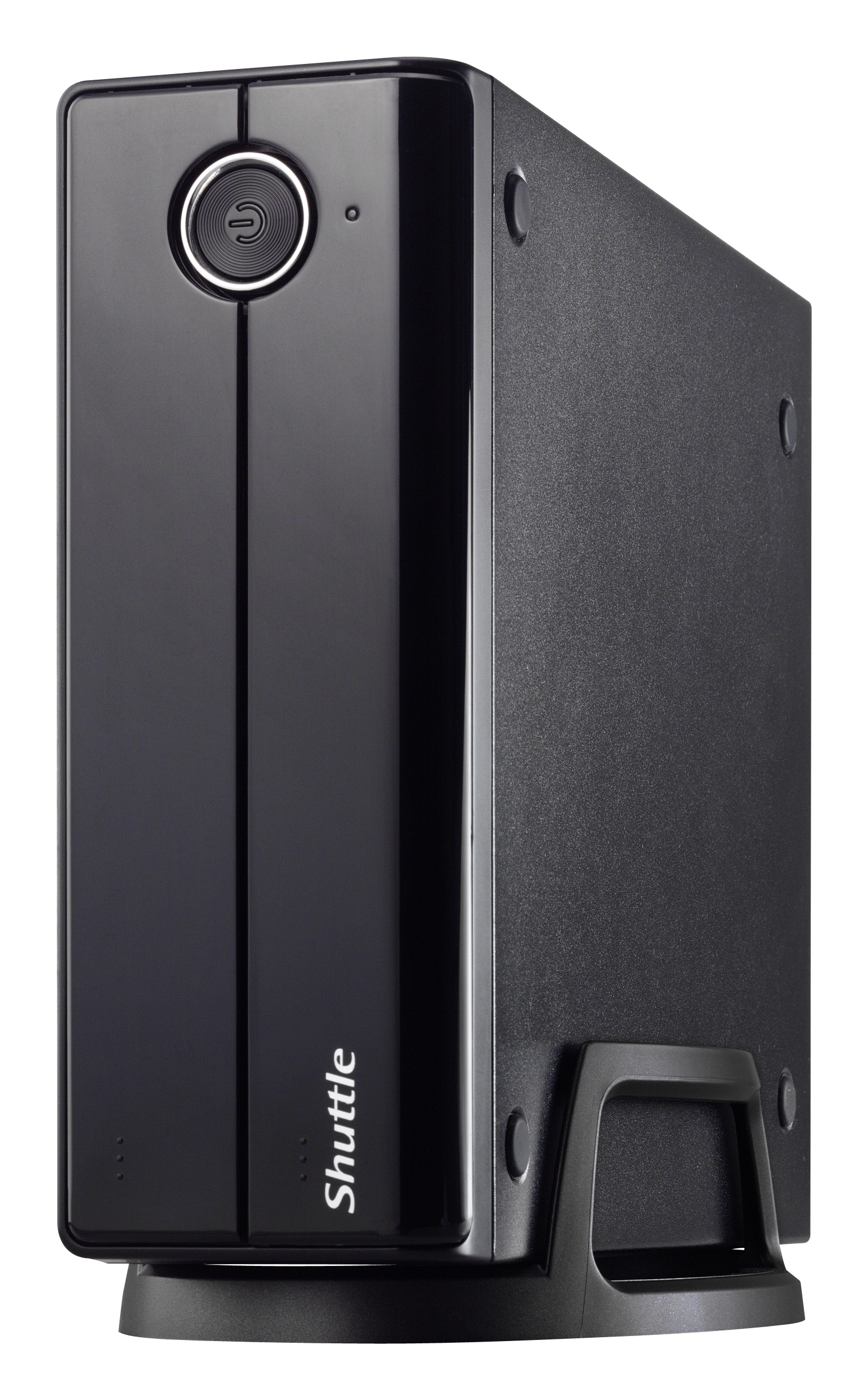

Shuttle XH170V PC/workstation barebone Black Intel® H170
Model XH170VEAN 887993000442
70 specifications
- TypePC barebone
- OSNo
- Weight2.2 kg
- ColourBlack
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- PC barebone
- OS
- No
- Weight
- 2.2 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XH170V
- Part number
- XH170V
- EAN / UPC
- 887993000442, 5054629928400
- Also known as
- Shuttle XH170V PC/workstation barebone Black Intel® H170
Specifications
70 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 3 |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| Number of displays supported | 3 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H170 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Pentium® |
| BIOS type | UEFI AMI |
| Built-in camera | No |
| Audio output channels | 5.1 channels |
| Audio system | HD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit LAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | PC barebone |
| Safety | CB, BSMI, ETL |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x6 |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 200 mm |
| Height | 72 mm |
| Weight | 2.2 kg |
| Package weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
