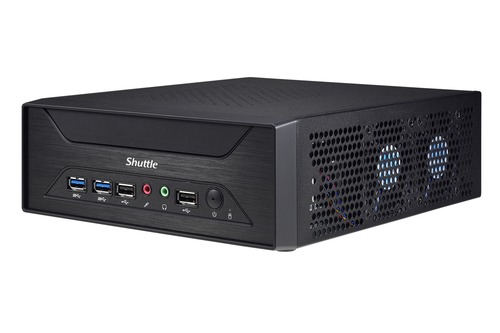

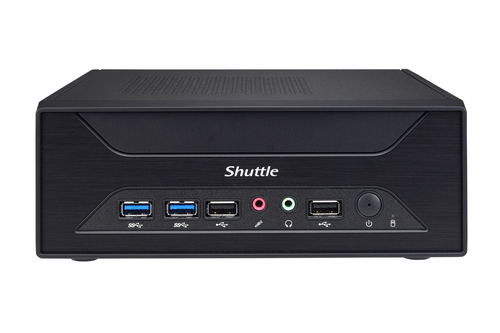

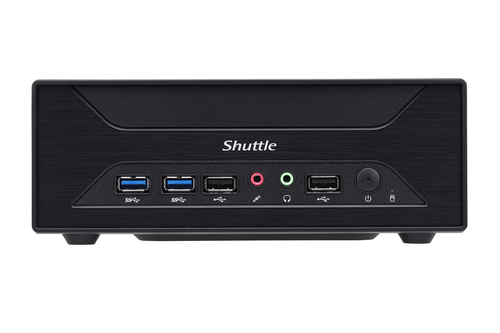

XPС slim XH110G PC/workstation barebone
3L sized PC Black Intel® H110 LGA 1151 (Socket H4)
Model XH110GEAN 818214580337
67 specifications
- TypeMini PC barebone
- OSNo
- Weight1.9 kg
- ColourBlack
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1.9 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- XH110G
- Part number
- XH110G
- EAN / UPC
- 818214580337, 887993001265
- Also known as
- Shuttle XPС slim XH110G PC/workstation barebone 3L sized PC Black Intel® H110 LGA 1151 (Socket H4)
Specifications
67 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H110 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Audio output channels | 7.1 channels |
| Audio system | HD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |

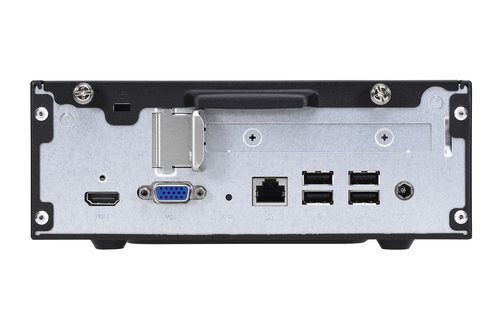

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 3L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Safety | ETL, CB, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 9.23 A |
| AC adapter output voltage | 19.5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 180 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 250 mm |
| Height | 78.5 mm |
| Weight | 1.9 kg |
| Package weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
