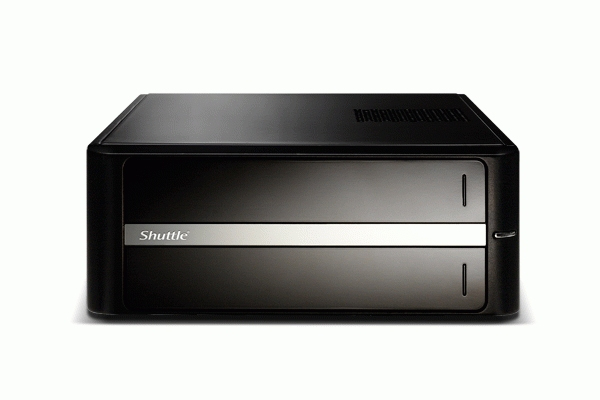

X27 Black
Model X27 BlackPart no. PC-X27001
29 specifications
- ProcessorIntel
- Memory slots typeDIMM
- Number of storage drives supported3
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
- USB 2.0 ports quantity6
Overview
- Processor
- Intel
- Memory slots type
- DIMM
- Number of storage drives supported
- 3
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- USB 2.0 ports quantity
- 6
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- X27 Black
- Part number
- PC-X27001
- Also known as
- Shuttle X27 Black Low Profile (Slimline) Intel® 945GC Express
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 3 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 224 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Supported processor frequency (max) | 1.6 GHz |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC662 |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8056 Ethernet network controller (Gigabit) |

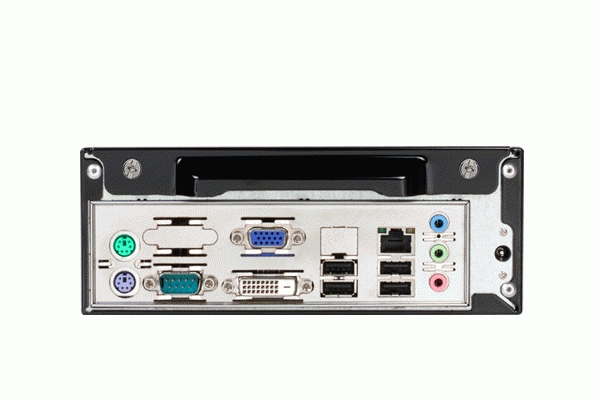

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Low Profile (Slimline) |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power supply | 60 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 185 x 70 mm |
| Number of SATA connectors | 2 |
| I/O ports | 1 x PCI-Express x1 1 x IDE ATA 100 |
| Motherboard | Mini-iTX (17 x 17 cm) |
