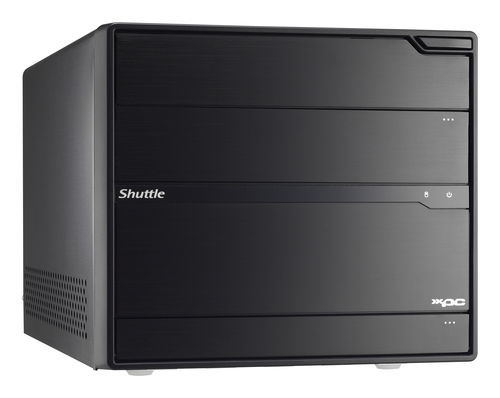

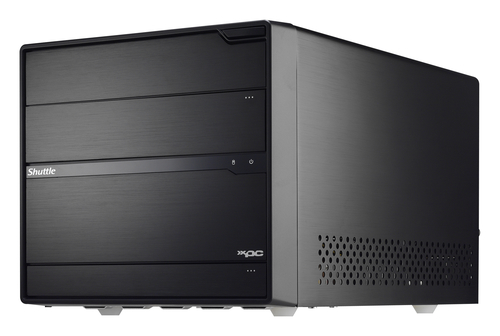

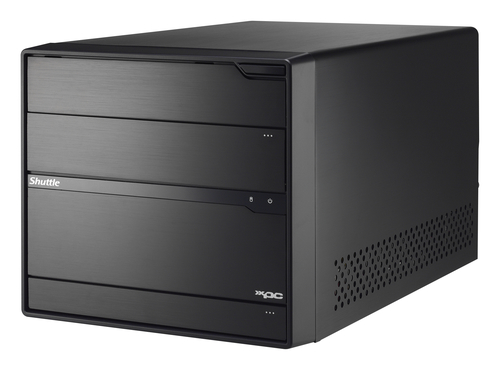

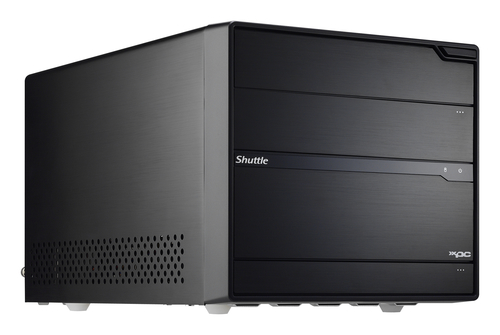

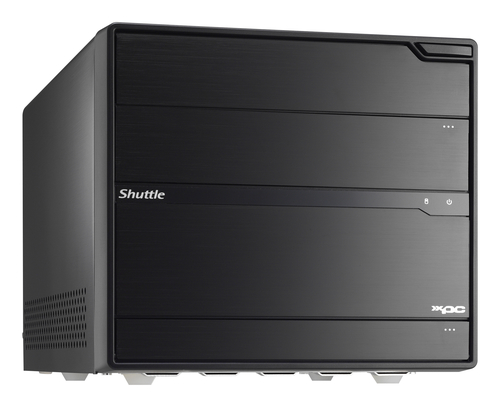

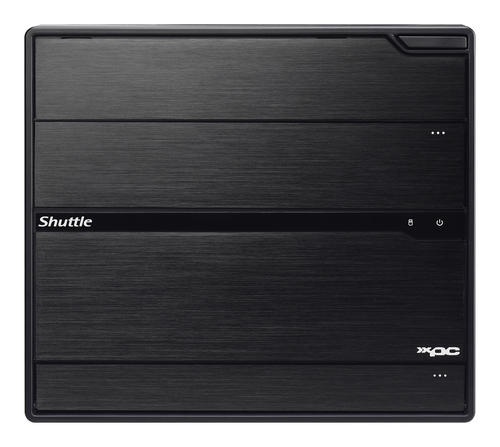

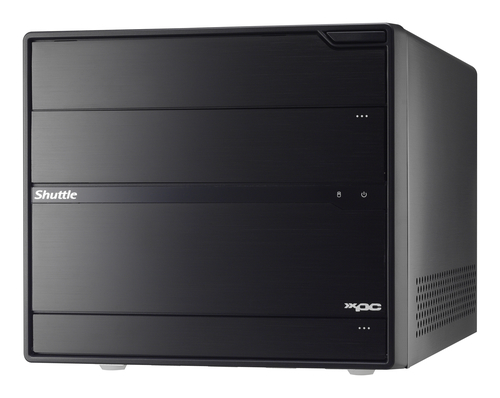

Shuttle SZ77R5 PC/workstation barebone SFF Black Intel® Z77 Express LGA 1155 (Socket H2)

Shuttle SZ77R5 PC/workstation barebone SFF Black Intel® Z77 Express LGA 1155 (Socket H2)

Model SZ77R5EAN 008116860389

58 specifications
  • TypePC barebone
  • OSNo
  • Weight3.5 kg
  • ColourBlack
  • Memory slots typeDIMM
  • Storage drive sizes supported2.5"
See all specifications

Overview

Type
PC barebone
OS
No
Weight
3.5 kg
Colour
Black
Memory slots type
DIMM
Storage drive sizes supported
2.5"
Brand
Shuttle
Model
SZ77R5
Part number
SZ77R5
EAN / UPC
008116860389, 168141553646, 811686003809
Also known as
Shuttle SZ77R5 PC/workstation barebone SFF Black Intel® Z77 Express LGA 1155 (Socket H2)

Specifications

58 specifications in 17 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory32 GB
Supported memory clock speeds1066,1333 MHz
Supported memory typesDDR3-SDRAM

Storage

Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA II, Serial ATA III
Number of storage drives supported4
RAID levels0, 1, 5, 10, JBOD

Graphics

On-board graphics cardNo

Performance

Motherboard chipsetIntel® Z77 Express
Processor socketLGA 1155 (Socket H2)
Number of processors supported1
Compatible processor seriesIntel® Celeron® G, Intel® Pentium®
BIOS memory size32 Mbit
Audio output channels7.1 channels
Audio systemRealtek ALC888S

Network

Ethernet LANYes
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

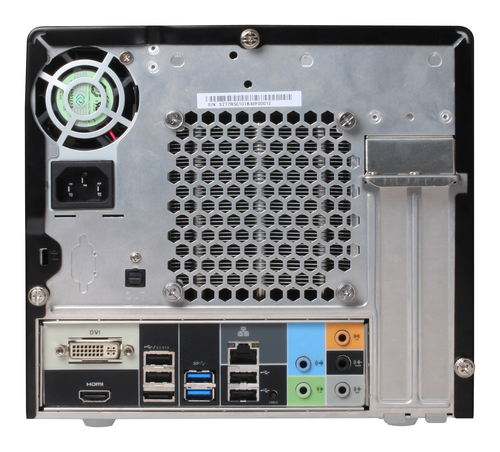

Ports & interfaces

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DVI portYes
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
S/PDIF out portYes
eSATA ports quantity1

Expansion slots

PCI Express x16 slots1
Mini PCI Express slots2

Design

Chassis typeSFF
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialAluminium
Product typePC barebone
SafetyETL, CB, BSMI, TÜV

Sustainability

Sustainability certificatesENERGY STAR

Software

Compatible operating systemsMicrosoft Windows XP, Windows 7, Windows 8, Linux 32/64bit
Operating system installedNo

Certificates

CertificationFCC, CE, BSMI, C-Tick, RoHS, ErP Lot 6

Power

Number of power supply units1
Power supply500 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 35 °C

Weight & dimensions

Weight3.5 kg

Packaging content

Quick start guideYes

Other features

Number of processors installed0
Dimensions (WxDxH)216 x 332 x 198 mm
Heat sink includedYes
Number of SATA connectors4
Number of products included1 pc(s)
Power LEDYes
Power requirements100 - 240V AC
Expansion slots1 x PCI-Express x4 v2.0
