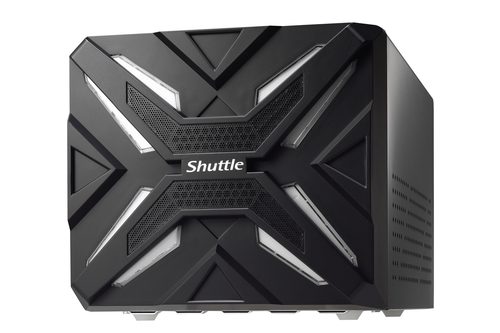

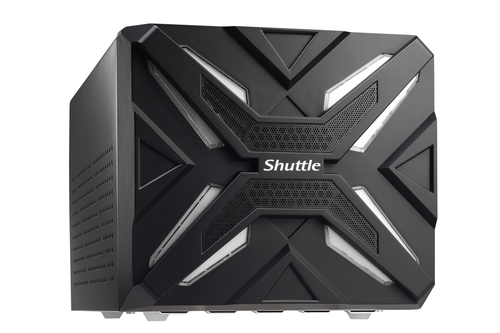

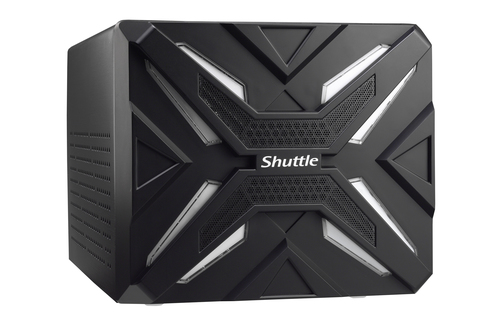

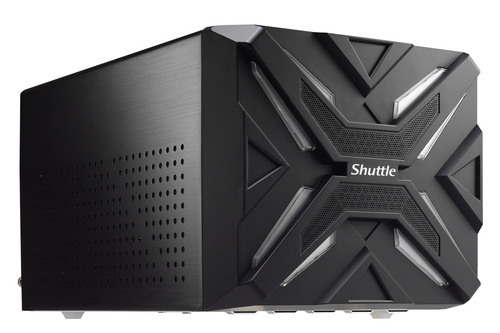

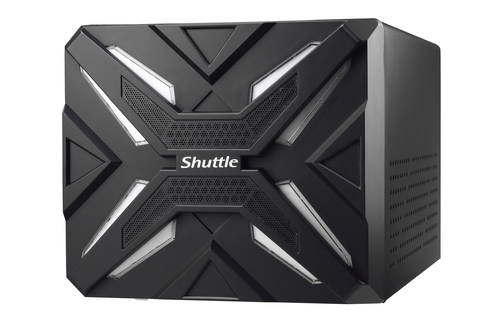

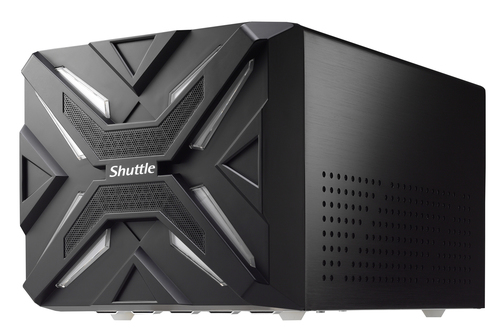

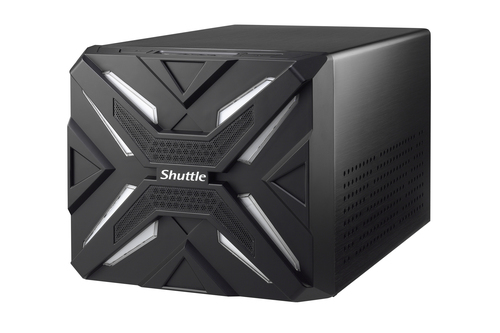

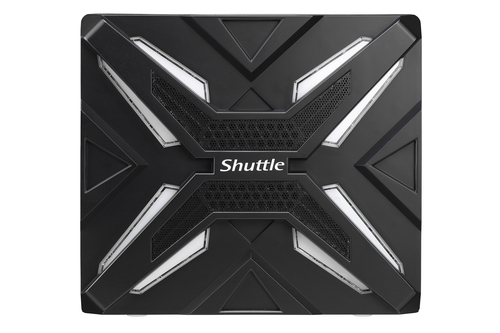

XPC cube SZ270R9 Gaming Mini PC Barebone
Model SZ270R9EAN 818215283435
64 specifications
- TypePC barebone
- OSNo
- Weight3.5 kg
- ColourBlack
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- PC barebone
- OS
- No
- Weight
- 3.5 kg
- Colour
- Black
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SZ270R9
- Part number
- SZ270R9
- EAN / UPC
- 818215283435, 887993001364
- Also known as
- Shuttle XPC cube SZ270R9 Gaming Mini PC Barebone
Specifications
64 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5" |
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® Z270 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| BIOS type | UEFI AMI |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| LAN controller | Intel® I211 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | Power |
| Housing material | Aluminium, Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
| Market positioning | Gaming |
| Safety | ETL, CB, BSMI |
Processor special features
| Specification | Value |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215.4 mm |
| Depth | 348.4 mm |
| Height | 190.2 mm |
| Weight | 3.5 kg |
| Package weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Display included | No |
