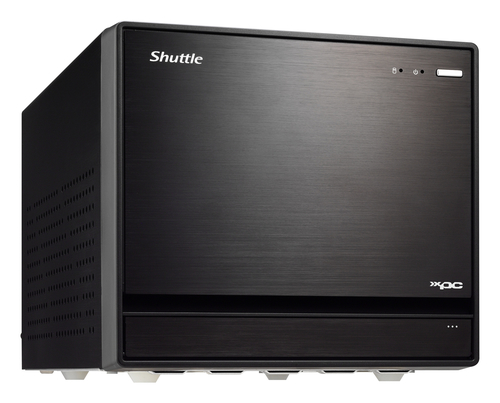

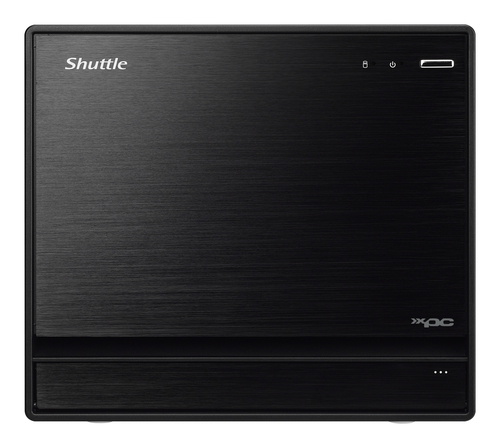

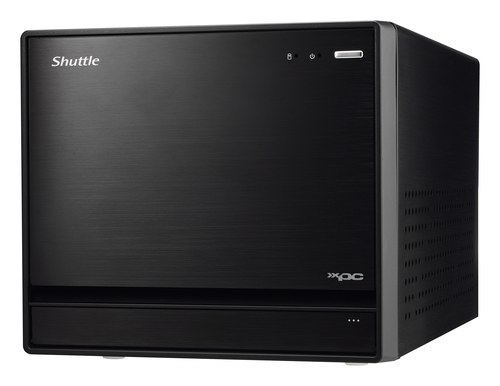

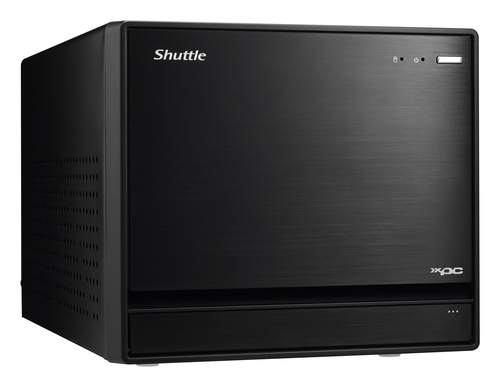

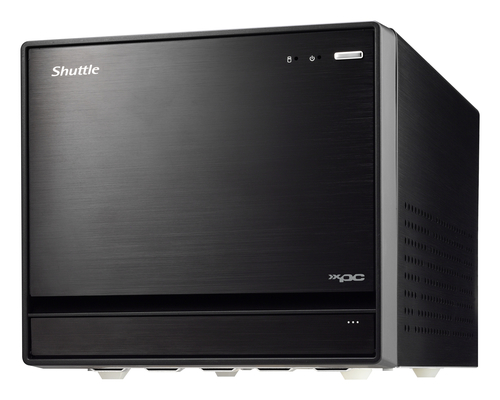

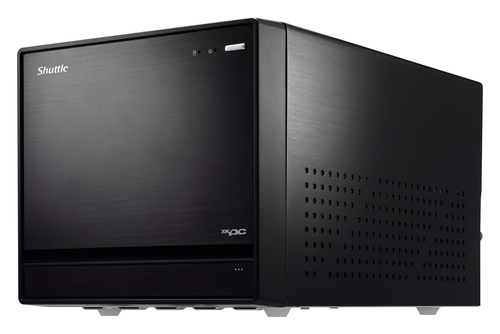

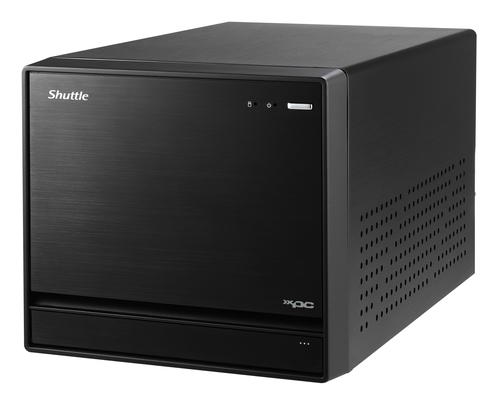

XPC cube SZ270R8 Black Intel® Z270 LGA 1151 (Socket H4)
Model SZ270R8Part no. PC-SZ270R811EAN 887993001241
70 specifications
- TypeMini PC barebone
- Weight3.5 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD
Overview
- Type
- Mini PC barebone
- Weight
- 3.5 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SZ270R8
- Part number
- PC-SZ270R811
- EAN / UPC
- 887993001241, 818215914896, 887993001234, 887993001326 +1 more
- Also known as
- Shuttle XPC cube SZ270R8 Black Intel® Z270 LGA 1151 (Socket H4)
Specifications
70 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® Z270 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| Optical drive type | No |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC662 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I211 |

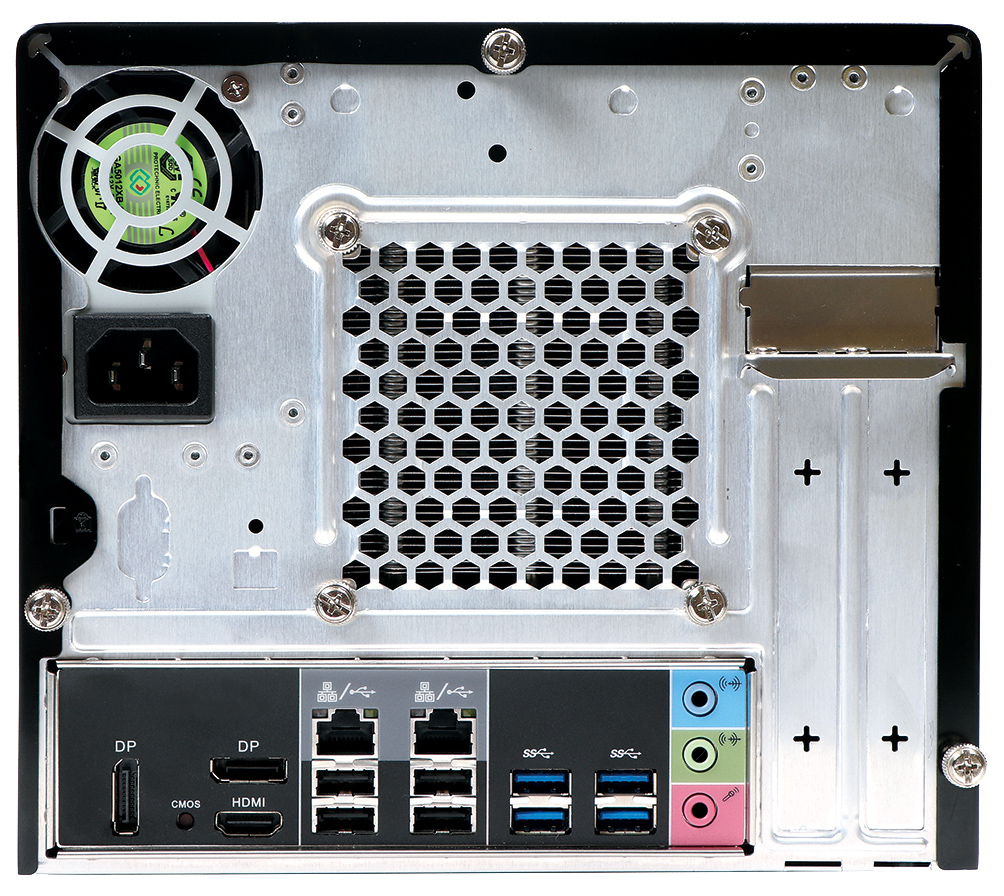

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SATA III connectors | 4 |
| Serial port via internal header | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| Housing material | Aluminium |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| Safety | ETL, CB, BSMI |
Processor special features
| Specification | Value |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, ErP, FCC, CE, BSMI, C-Tick |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 332 mm |
| Height | 198 mm |
| Weight | 3.5 kg |
| Package weight | 5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
