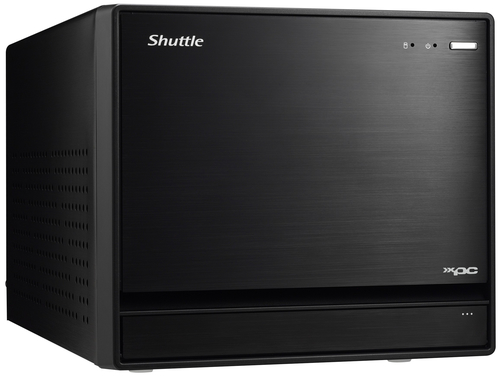

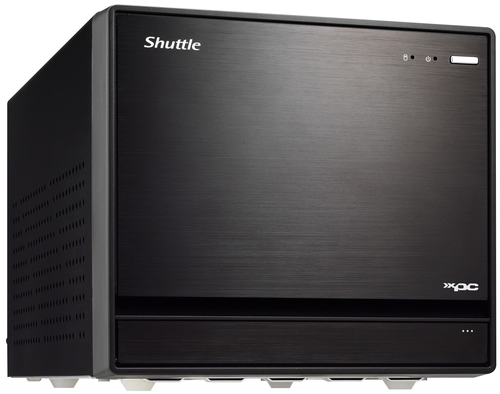

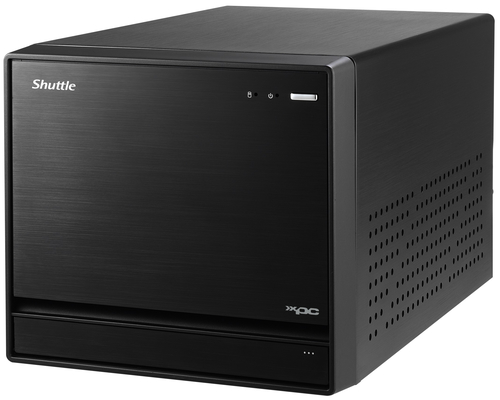

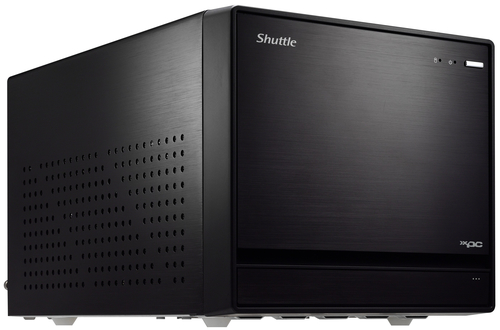

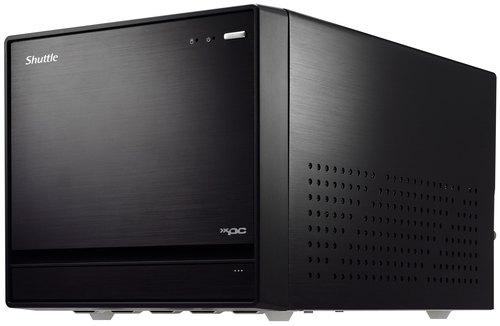

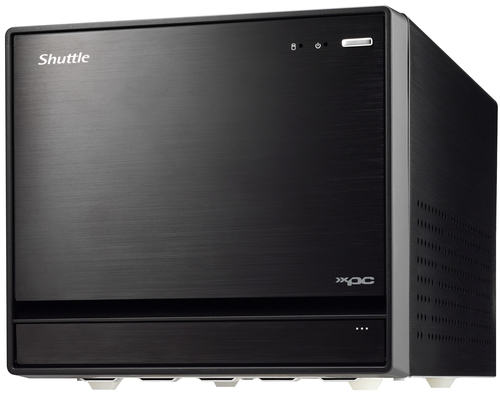

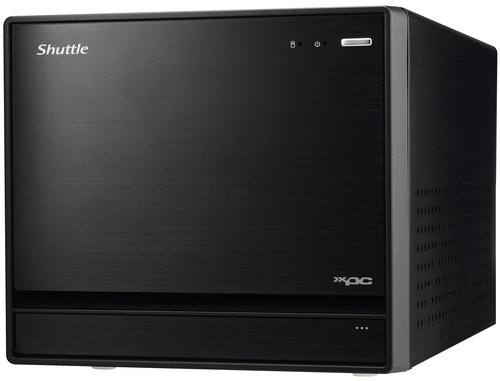

Shuttle SZ170R8V2 PC/workstation barebone Black Intel® Z170 LGA 1151 (Socket H4)

Model SZ170R8V2EAN 887993000794

65 specifications

Overview

Brand: Shuttle
Category: PC/Workstation Barebones
Model: SZ170R8V2
Part number: SZ170R8V2
EAN / UPC: 887993000794
Also known as: Shuttle SZ170R8V2 PC/workstation barebone Black Intel® Z170 LGA 1151 (Socket H4)

65 specifications in 16 groups

Specification	Value
Built-in processor	No

Specification	Value
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory voltage	1.2 V
Supported memory clock speeds	2133 MHz
Supported memory types	DDR4-SDRAM

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	3.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	4
RAID levels	0, 1, 5, 10, JBOD

Specification	Value
On-board graphics card	No
Graphics card family	Intel

Specification	Value
Motherboard chipset	Intel® Z170
Processor socket	LGA 1151 (Socket H4)
Number of processors supported	1
Compatible processor series	Intel® Celeron® G, Intel Pentium G
BIOS type	EFI AMI
BIOS memory size	32 Mbit
Audio output channels	7.1 channels
Audio system	HDA

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

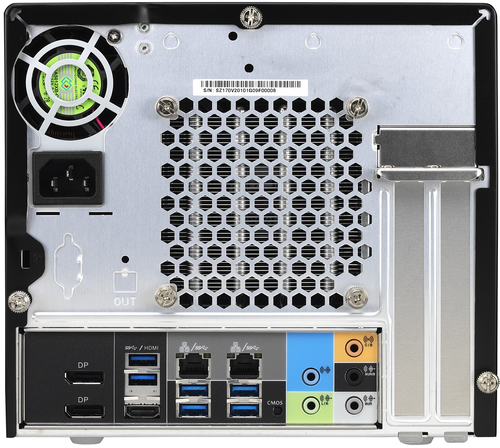

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2

Specification	Value
PCI Express x4 slots	1
PCI Express x16 slots	1

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Wi
Linux operating systems supported	Yes
Operating system installed	No

Specification	Value
Certification	FCC, CE, BSMI, C-Tick, RoHS, ErP

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
