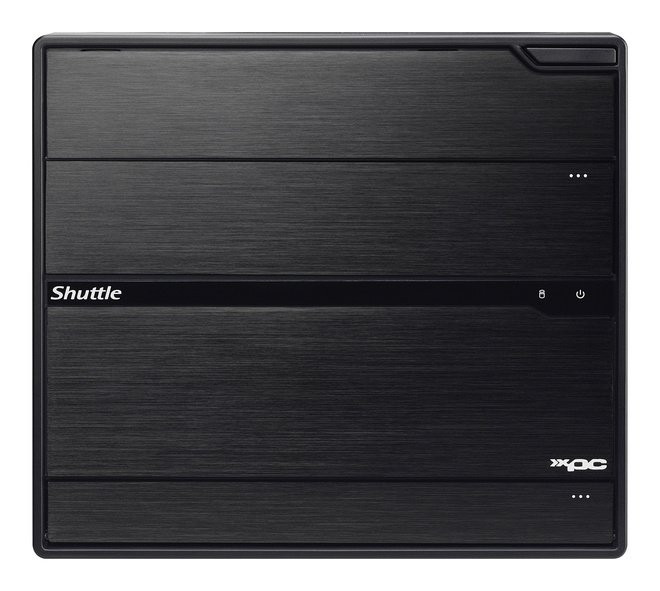

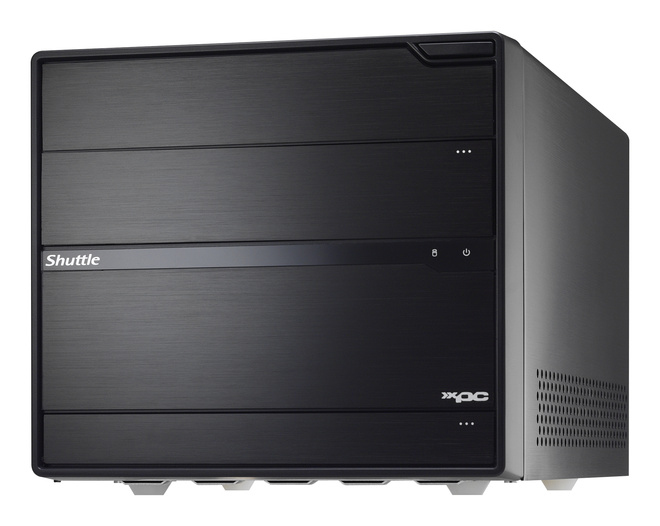

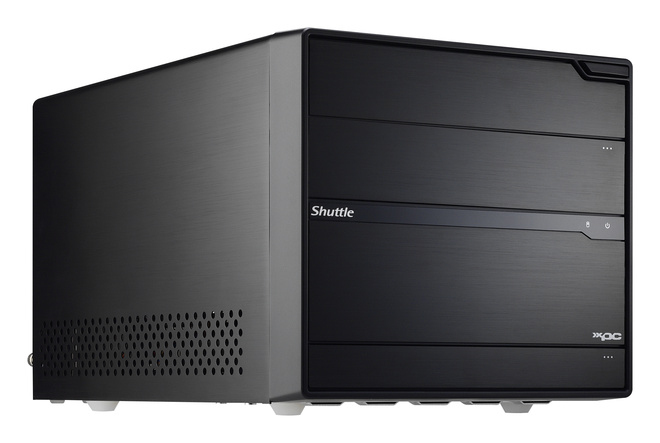

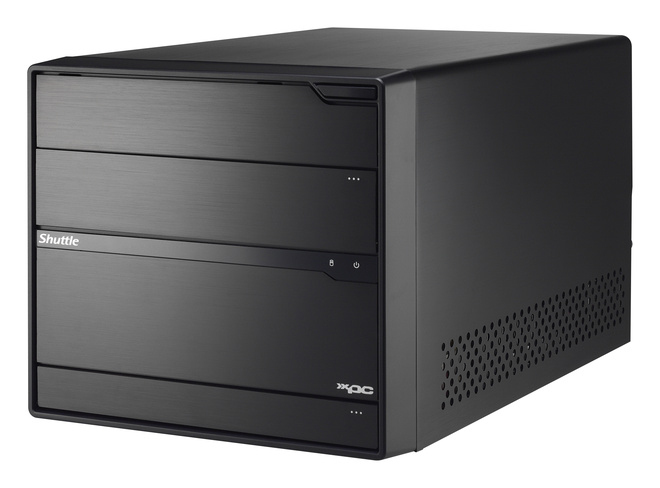

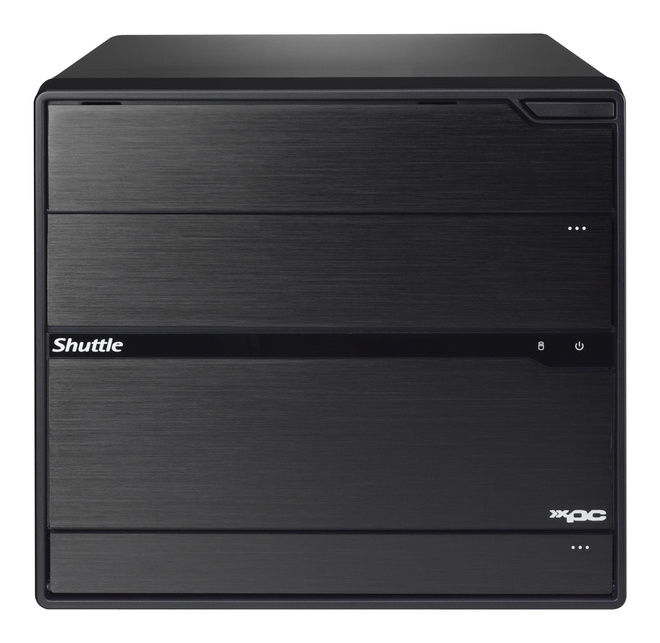

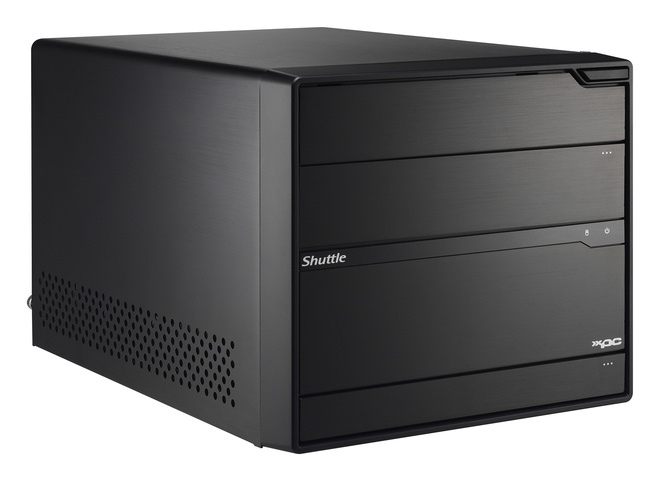

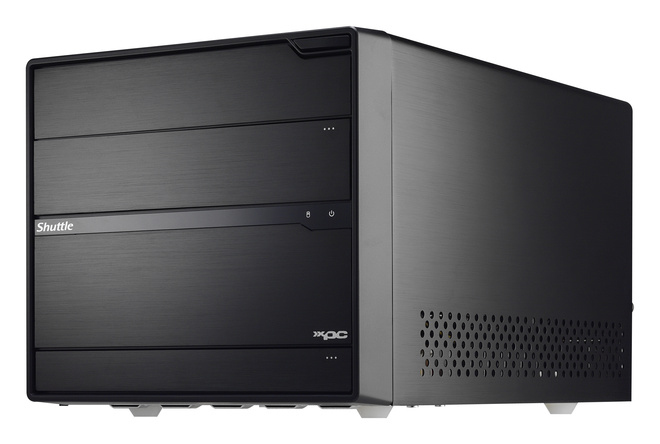

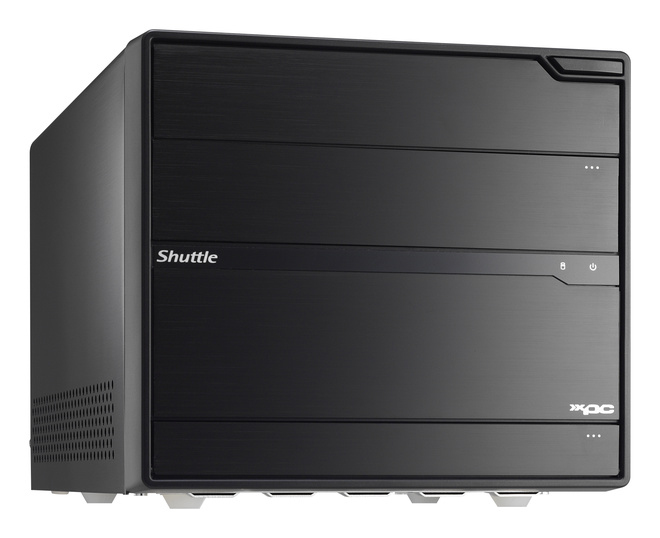

Shuttle SX79R5 PC/workstation barebone SFF Black Intel® X79 Express LGA 2011 (Socket R)

Shuttle SX79R5 PC/workstation barebone SFF Black Intel® X79 Express LGA 2011 (Socket R)

Model SX79R5EAN 8116860037550

57 specifications
  • ProcessorIntel
  • TypePC barebone
  • OSNo
  • Weight3.5 kg
  • ColourBlack
  • Memory slots typeDIMM
See all specifications

Overview

Processor
Intel
Type
PC barebone
OS
No
Weight
3.5 kg
Colour
Black
Memory slots type
DIMM
Brand
Shuttle
Model
SX79R5
Part number
SX79R5
EAN / UPC
8116860037550, 088698542286, 132018219317, 811686003755 +3 more
Also known as
Shuttle SX79R5 PC/workstation barebone SFF Black Intel® X79 Express LGA 2011 (Socket R)

Specifications

57 specifications in 15 groups

Processor

Built-in processorNo
Processor familyIntel
Processor lithography32 nm

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory32 GB
Supported memory clock speeds1066,1333,1600 MHz
Supported memory typesDDR3-SDRAM

Storage

Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA II, Serial ATA III
Number of storage drives supported4
RAID levels0, 1

Performance

Motherboard chipsetIntel® X79 Express
Processor socketLGA 2011 (Socket R)
Number of processors supported1
Compatible processor seriesIntel® Core™ i7
BIOS memory size64 Mbit
Audio output channels7.1 channels
Audio systemRealtek ALC888S

Network

Ethernet LANYes
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

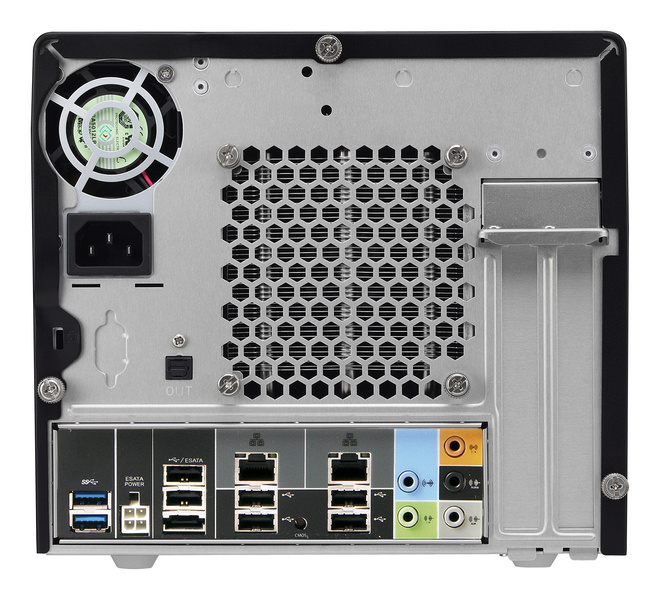

Ports & interfaces

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
S/PDIF out portYes
eSATA ports quantity1

Expansion slots

PCI Express x16 slots2
Mini PCI Express slots2

Design

Chassis typeSFF
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialAluminium
Product typePC barebone
SafetyETL, CB, BSMI, TÜV

Software

Compatible operating systemsMicrosoft Windows XP, Windows 7, Windows 8, Linux 32/64bit
Operating system installedNo

Certificates

CertificationFCC, CE, BSMI, C-Tick, RoHS, ErP Lot 6

Power

Number of power supply units1
Power supply500 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 35 °C

Weight & dimensions

Weight3.5 kg

Packaging content

Quick start guideYes

Other features

Number of processors installed0
Dimensions (WxDxH)216 x 332 x 198 mm
Heat sink includedYes
Number of SATA connectors4
Number of products included1 pc(s)
Power LEDYes
Power requirements100 - 240 V AC
Drive bays1 x 5.25", 2 x 3.5"
MotherboardFX79
