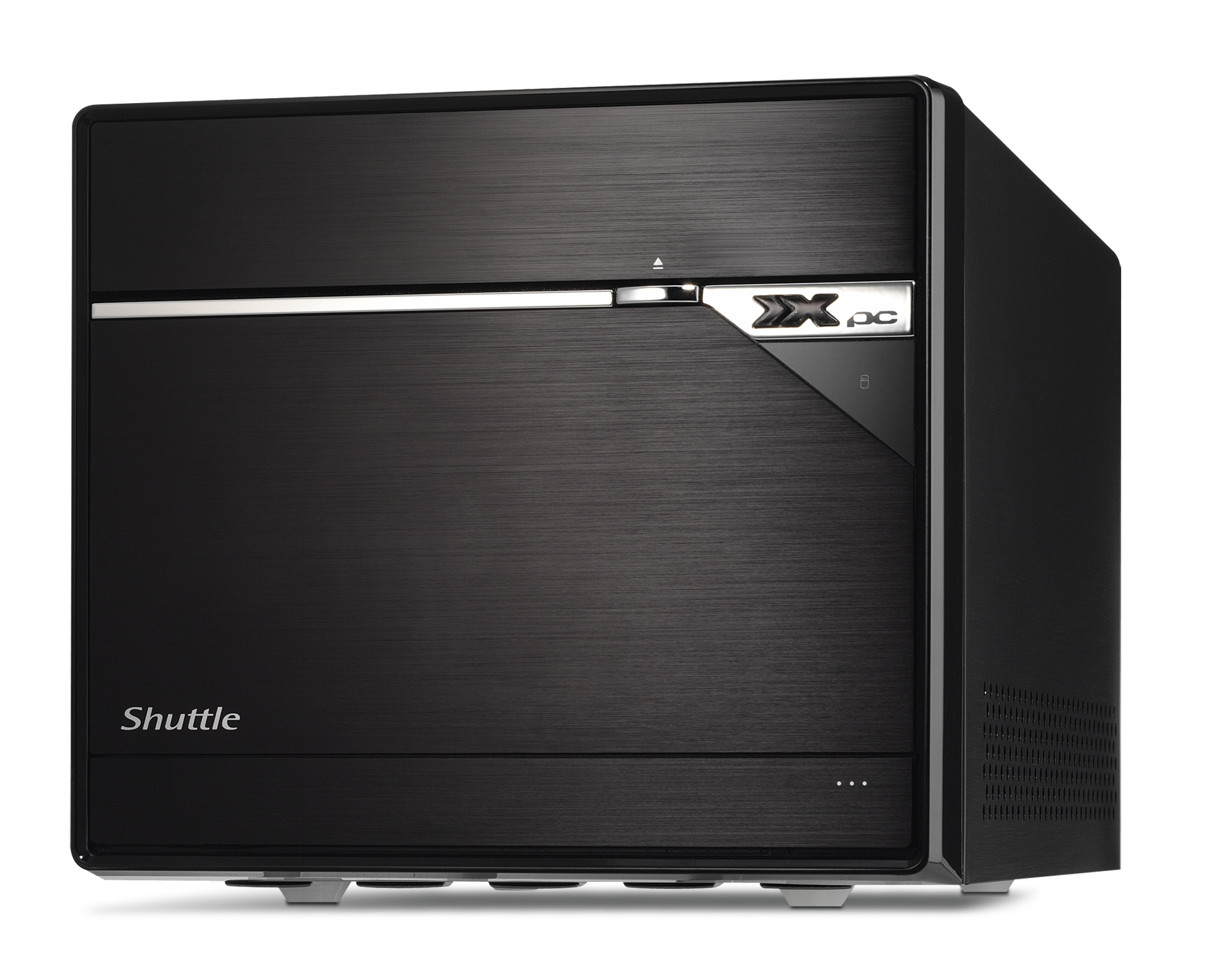

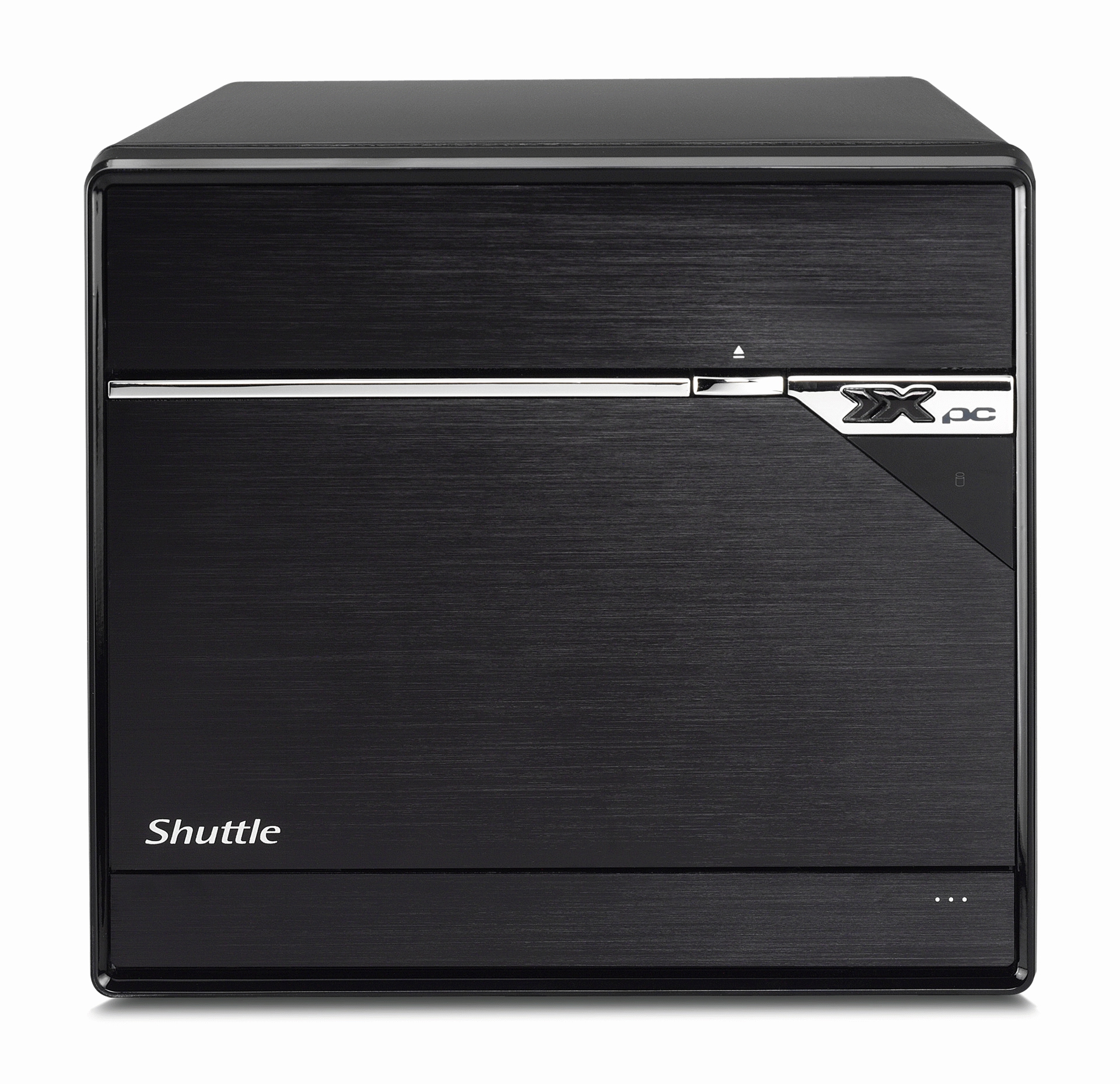

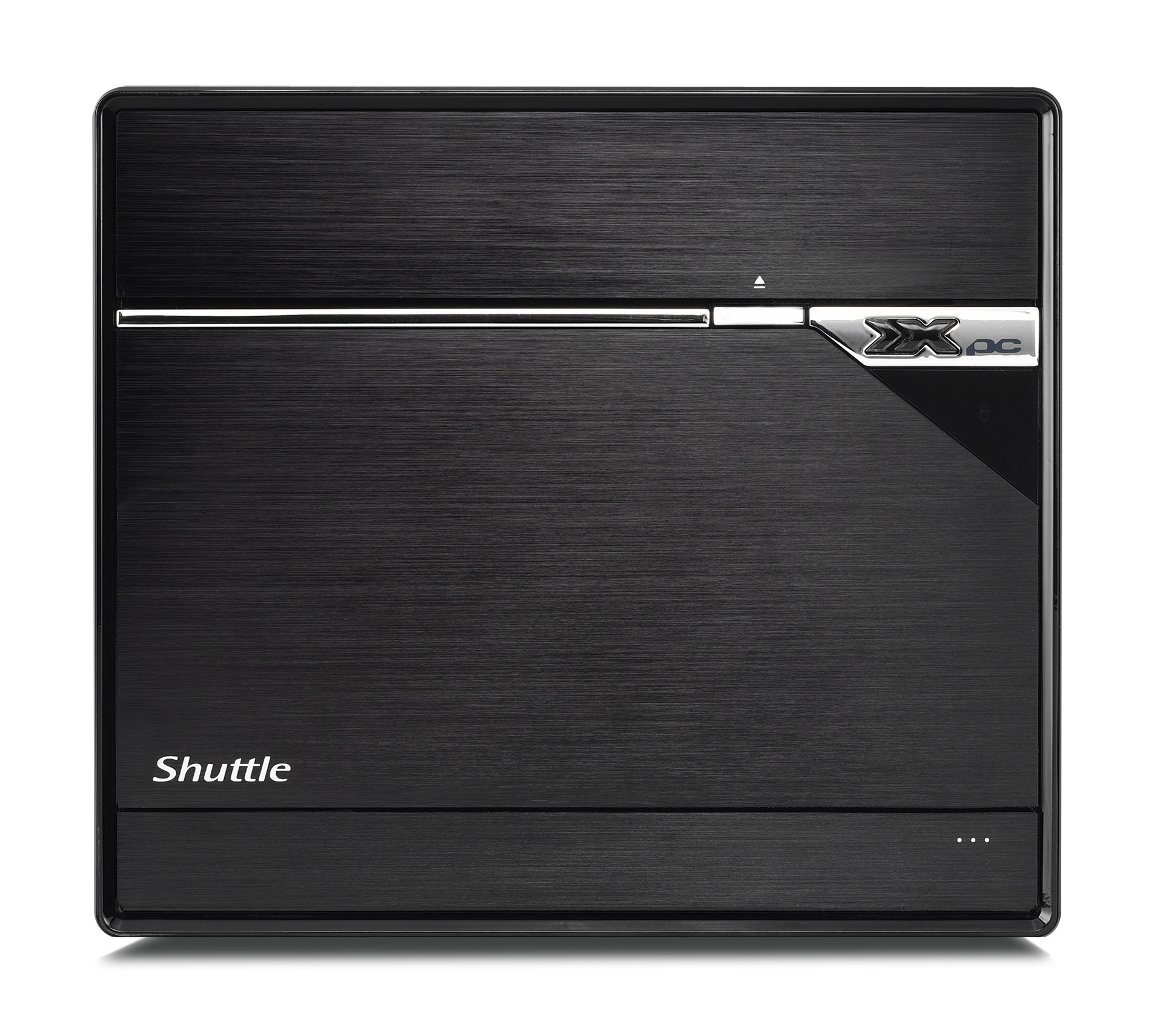

Shuttle SX58J3 PC/workstation barebone Black Intel® X58 Express Socket B (LGA 1366)
Model SX58J3EAN 5052179610790
23 specifications
- Weight7.5 kg
- ColourBlack
- Maximum internal memory16 GB
- Card reader integratedYes
- Motherboard chipsetIntel® X58 Express
- Networking featuresGigabit Ethernet
Overview
- Weight
- 7.5 kg
- Colour
- Black
- Maximum internal memory
- 16 GB
- Card reader integrated
- Yes
- Motherboard chipset
- Intel® X58 Express
- Networking features
- Gigabit Ethernet
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SX58J3
- Part numbers
- SX58J3, XPC-SX58J3
- EAN / UPC
- 5052179610790, 811686003137
- Also known as
- Shuttle SX58J3 PC/workstation barebone Black Intel® X58 Express Socket B (LGA 1366)
Specifications
23 specifications in 10 groups
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® X58 Express |
| Processor socket | Socket B (LGA 1366) |
| Audio output channels | 7.1 channels |
| Audio system | HD Audio |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

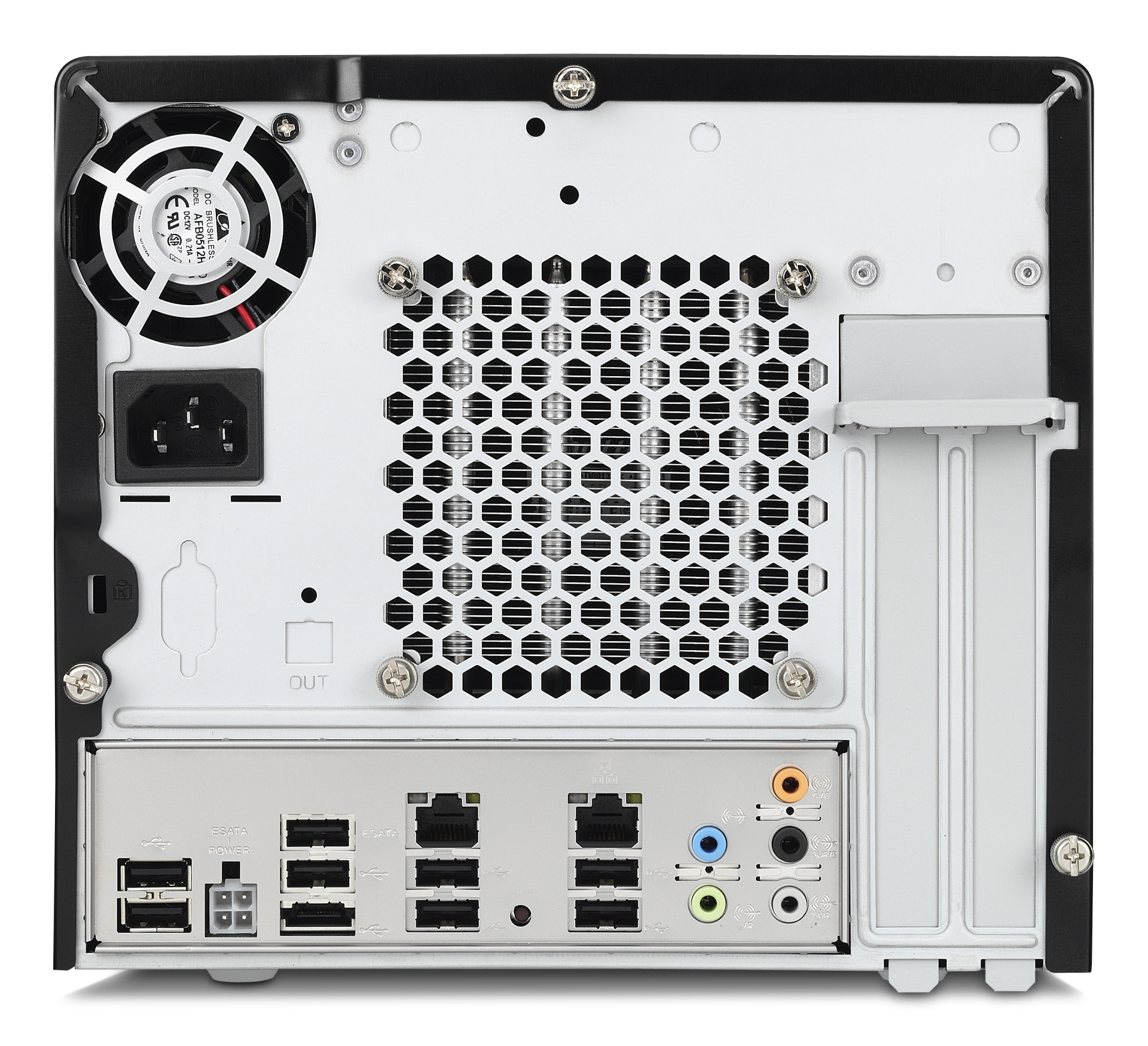

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Microphone in | Yes |
| Headphone outputs | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | No |
| eSATA ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.5 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 215 x 330 x 190 mm |
| Number of SATA connectors | 4 |
| Drive bays | 1x 5.25", 2x 3.5" |
| I/O ports | 1x USB 2.0 2x fan 1x Audio AUX in |
| Motherboard | FX58V2 |
