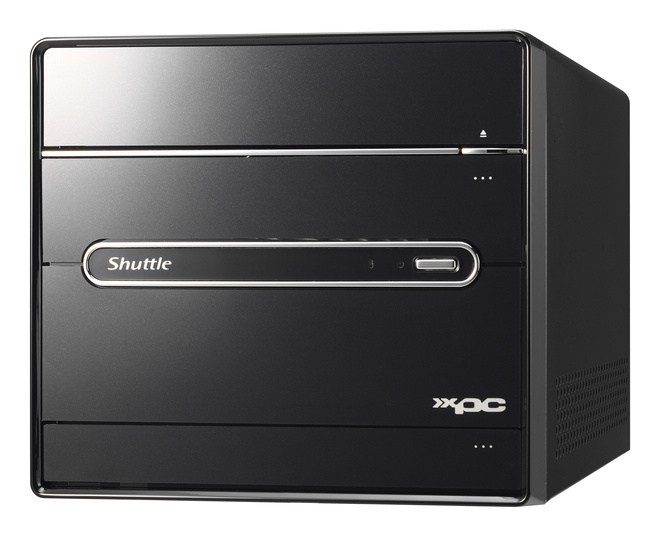

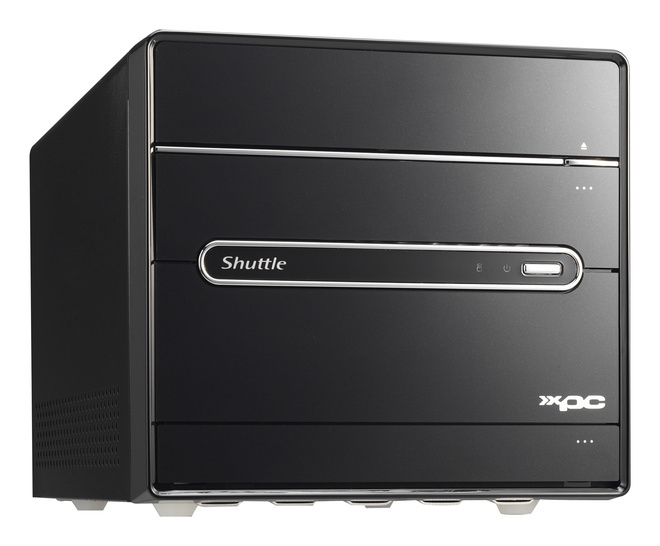

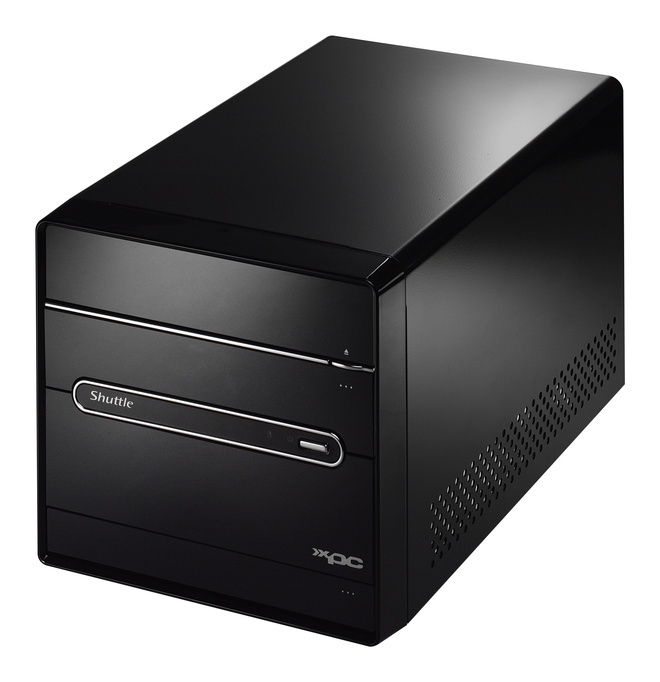

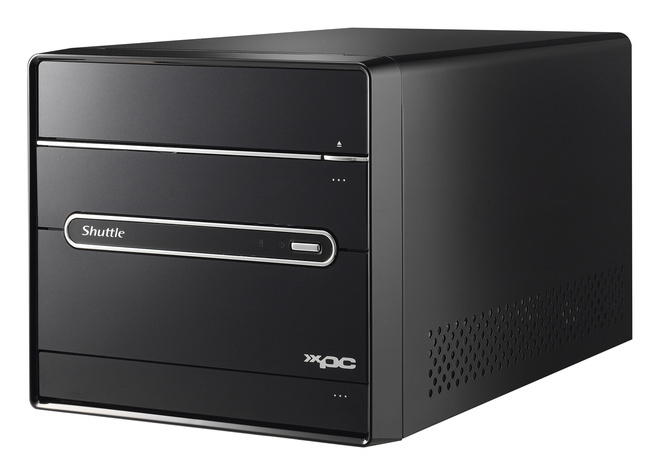

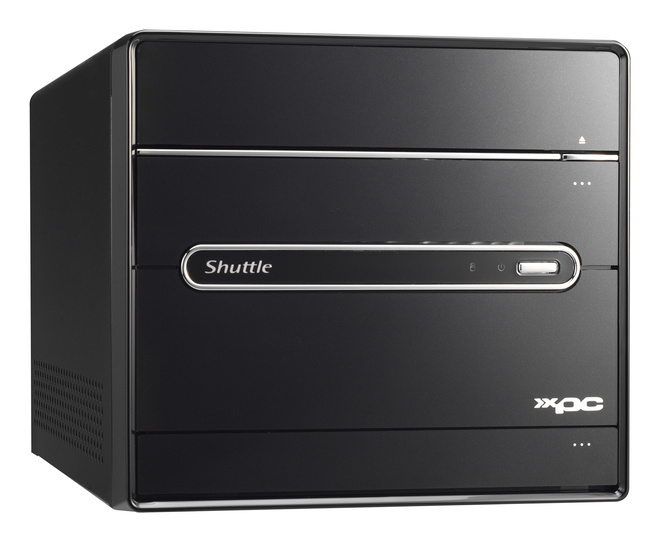

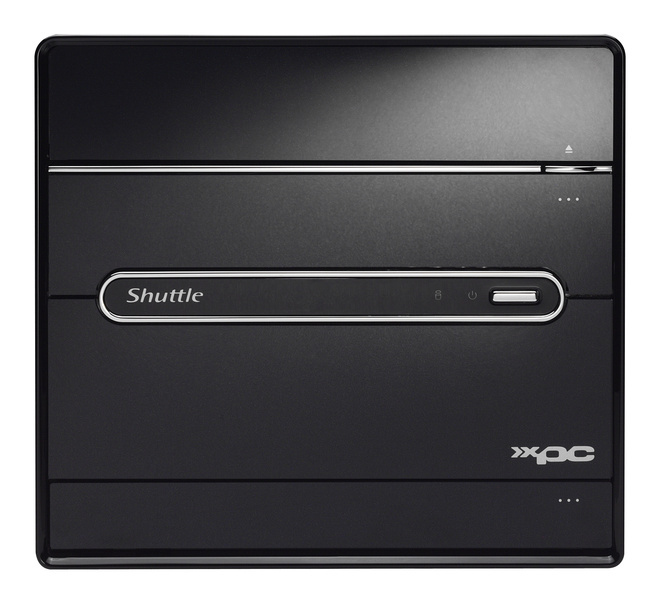

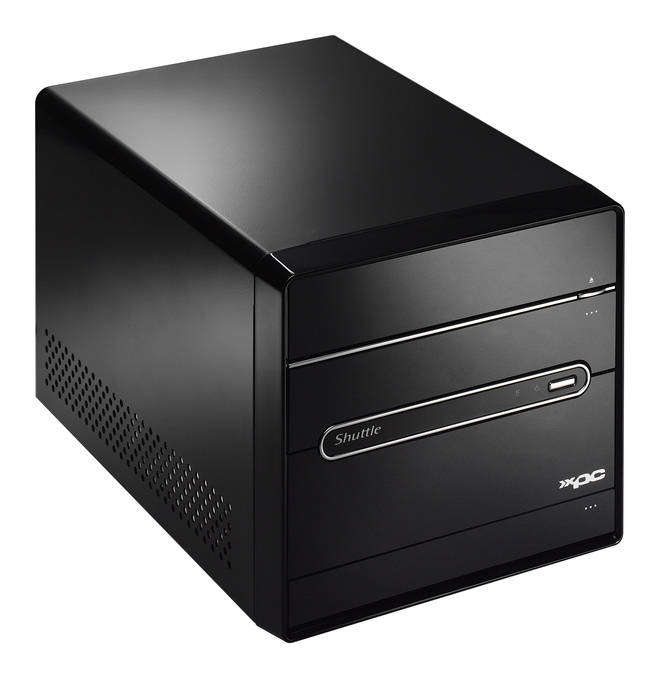

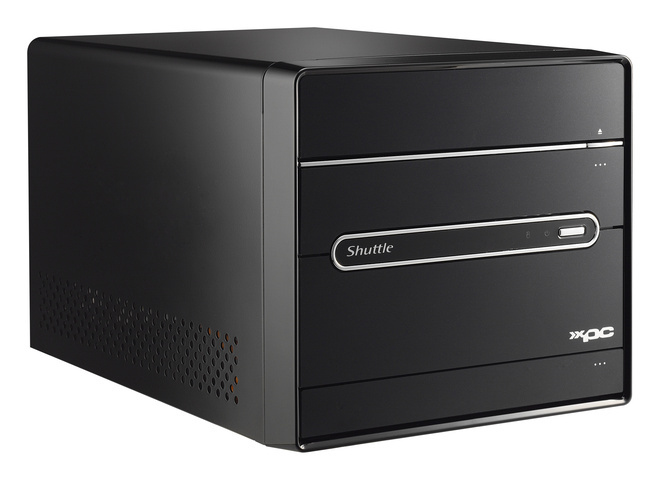

Shuttle SX58H7 Pro
Model SX58H7 ProPart no. SX58H7PRO BEAN 811686033806
33 specifications
- ProcessorIntel
- Weight3.8 kg
- ColourBlack
- Memory slots typeDIMM
- Storage drive interfaceSerial ATA, Serial ATA II
- Motherboard chipsetIntel® X58 Express
Overview
- Processor
- Intel
- Weight
- 3.8 kg
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive interface
- Serial ATA, Serial ATA II
- Motherboard chipset
- Intel® X58 Express
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SX58H7 Pro
- Part numbers
- SX58H7PRO B, SX58H7P11, XPC-SX58H7 PRO, SX58H7 PRO
- EAN / UPC
- 811686033806, 8116860033804, 811686003380
- Also known as
- Shuttle SX58H7 Pro Black Intel® X58 Express Socket B (LGA 1366)
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1066,1333 MHz |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II |
| Number of storage drives supported | 4 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® X58 Express |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |

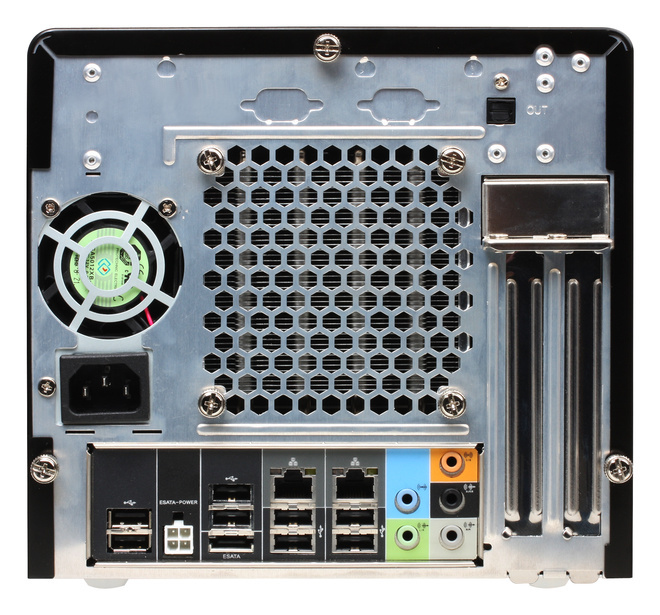

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | HDD, Power |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.8 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 208 x 326 x 196 mm |
| Power LED | Yes |
| Power requirements | 100 - 240V |
| Drive bays | 1 x 5.25", 2 x 3.5" |
| Expansion slots | 1 x Mini-PCIe x1 |
