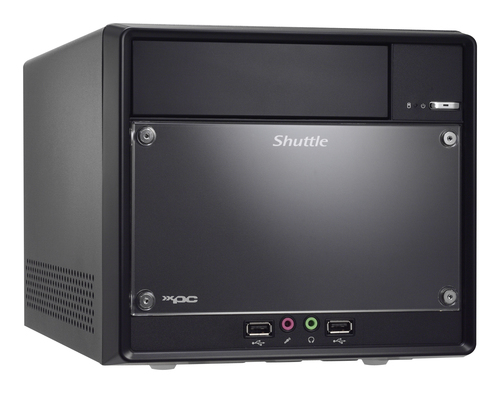

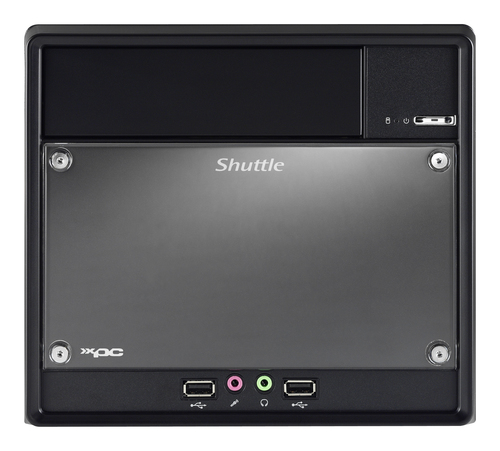

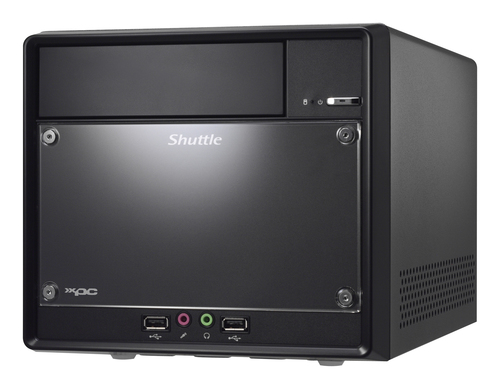

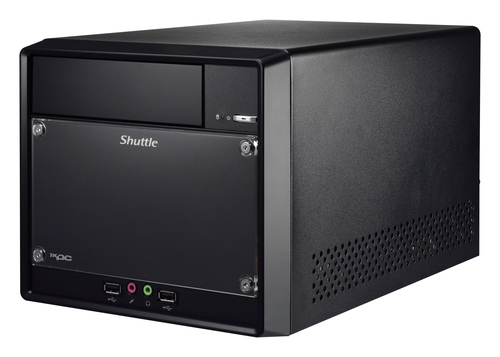

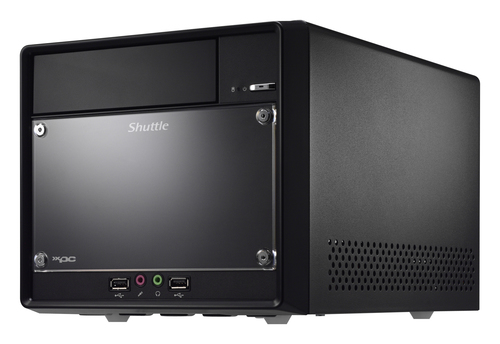

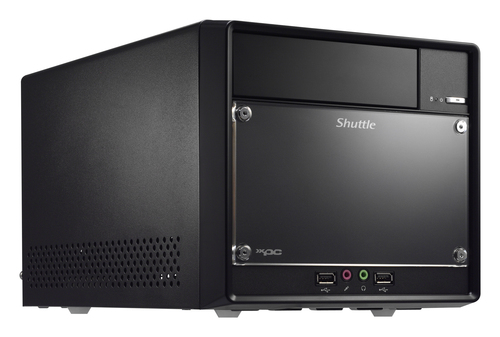

Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)
Model SH81R4EAN 8116860067250
51 specifications
- TypePC barebone
- OSNo
- Weight3.4 kg
- ColourBlack
- Number of memory slots2
- Storage drive sizes supported3.5"
Overview
- Type
- PC barebone
- OS
- No
- Weight
- 3.4 kg
- Colour
- Black
- Number of memory slots
- 2
- Storage drive sizes supported
- 3.5"
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SH81R4
- Part number
- SH81R4
- EAN / UPC
- 8116860067250, 012304340317, 137821836546, 801940470331 +3 more
- Also known as
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)
Specifications
51 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 3.5" |
| Storage drive interface | Serial ATA II, Serial ATA III |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H81 |
| Processor socket | LGA 1150 (Socket H3) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC662 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111E |

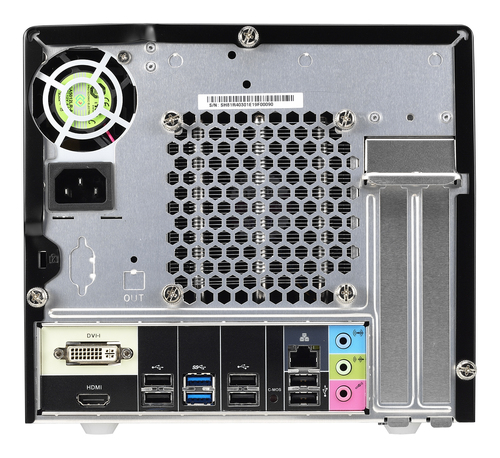

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD |
| Product type | PC barebone |
| Safety | ETL, CB, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS, EuP Lot6 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power supply | 300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 325 mm |
| Height | 190 mm |
| Weight | 3.4 kg |
| Package weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
| Number of SATA connectors | 3 |
| Number of products included | 1 pc(s) |
| Power LED | Yes |
What people say
Reviews & ratings
Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)
No reviews yet
Be the first to tell others how Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)
All pc/workstation barebones comparisons- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsShuttle XH97V PC/workstation barebone Black Intel® H97 LGA 1150 (Socket H3)Compare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsShuttle DS87 PC/workstation barebone Black Intel® H87 LGA 1150 (Socket H3)Compare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsShuttle XH81 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)Compare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsShuttle XH81V PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3)Compare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsASUS UN42-M016M PC/workstation bareboneCompare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsNilox NLX-BB-INTEL PC/workstation barebone Midi-Tower Black Intel® H81 LGA 1150 (Socket H3)Compare specs
- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsMSI ProBox130-001BEU Black Intel® H81 LGA 1150 (Socket H3)Compare specs

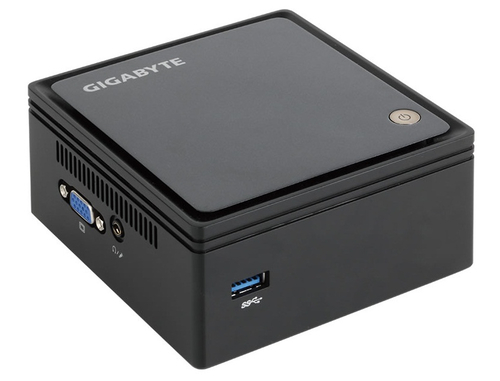

- Shuttle SH81R4 PC/workstation barebone Black Intel® H81 LGA 1150 (Socket H3) vsGIGABYTE GB-BXBT-1900 PC/workstation barebone USFF Black J1900 BGA 1170Compare specs
