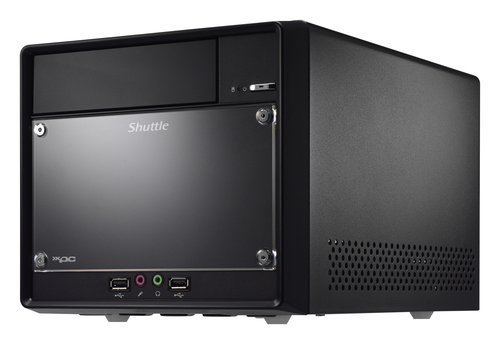

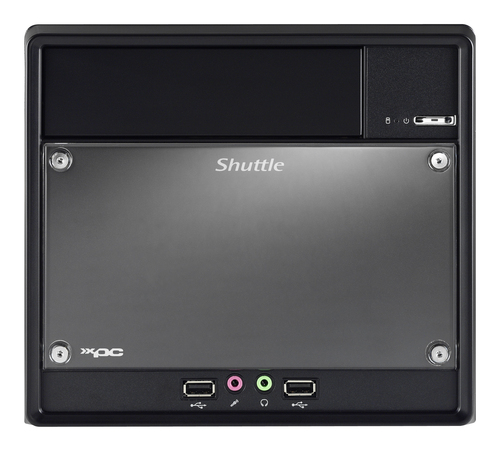

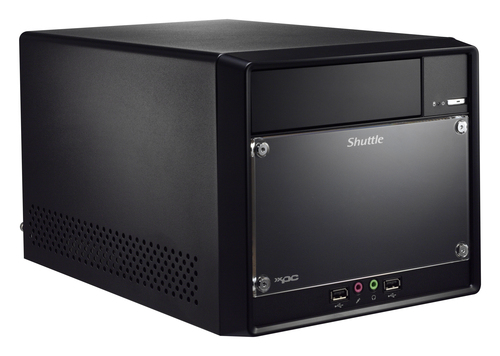

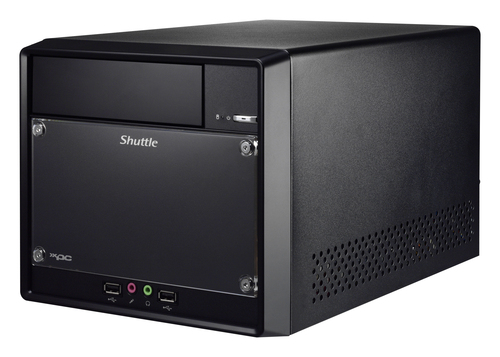

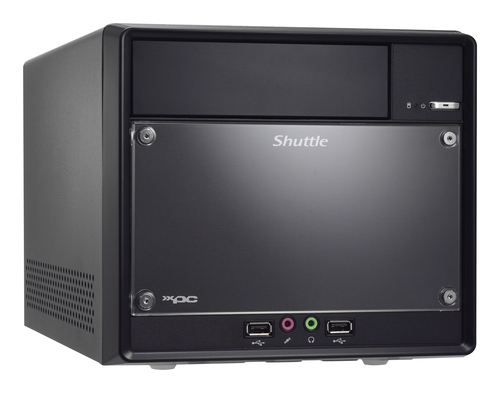

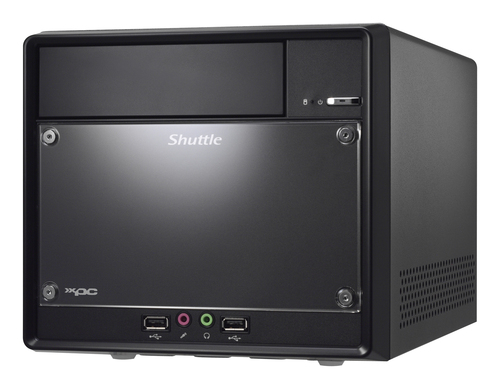

Shuttle SH61R4 PC/workstation barebone SFF Black Intel® H61 Express LGA 1155 (Socket H2)
Model SH61R4EAN 088698517437
57 specifications
- ProcessorIntel
- OSNo
- Weight3.2 kg
- ColourBlack
- Memory slots typeDIMM
- Storage drive interfaceSerial ATA II
Overview
- Processor
- Intel
- OS
- No
- Weight
- 3.2 kg
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive interface
- Serial ATA II
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SH61R4
- Part number
- SH61R4
- EAN / UPC
- 088698517437, 811686006602, 4997401501587, 8116860035570
- Also known as
- Shuttle SH61R4 PC/workstation barebone SFF Black Intel® H61 Express LGA 1155 (Socket H2)
Specifications
57 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1066,1333 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA II |
| Number of storage drives supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H61 Express |
| Processor socket | LGA 1155 (Socket H2) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron® G, Intel® Pentium® |
| BIOS memory size | 32 Mbit |
| Audio output channels | 5.1 channels |
| Audio system | IDT 92HD89C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |

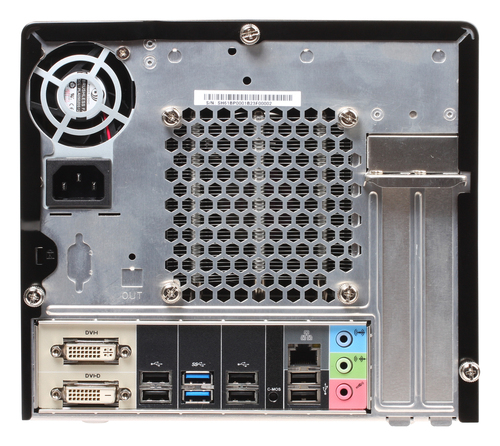

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | No |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Mini PCI Express slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Aluminium |
| Safety | ETL, CB, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows XP, Windows 7, Windows 8, Linux 32/64bit |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, RoHS, EuP Lot6 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 250 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 325 mm |
| Height | 190 mm |
| Weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
| Dimensions (WxDxH) | 215 x 325 x 190 mm |
| Heat sink included | Yes |
| Number of SATA connectors | 4 |
| Number of products included | 1 pc(s) |
| Power LED | Yes |
| Power requirements | 100 - 240V |
