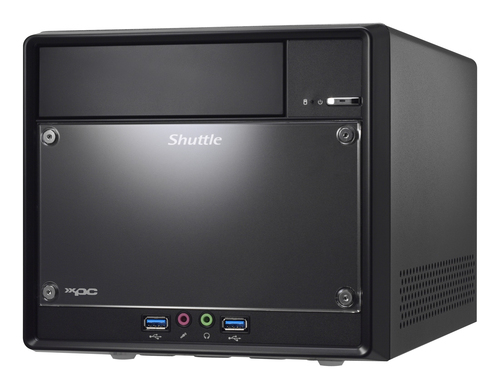

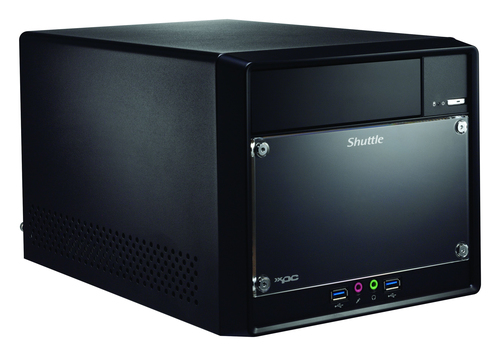

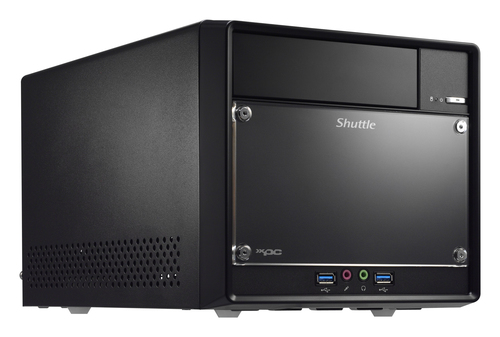

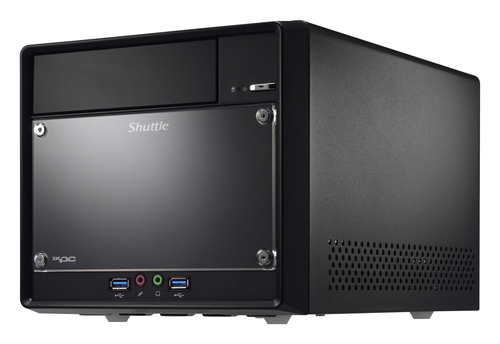

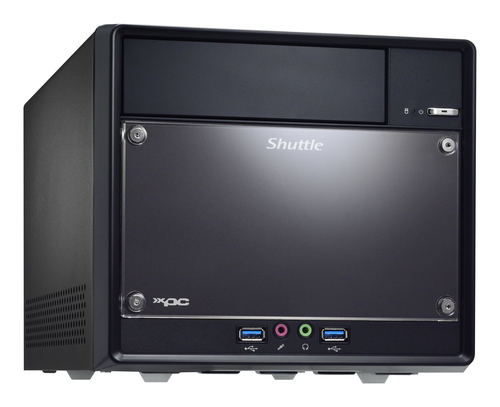

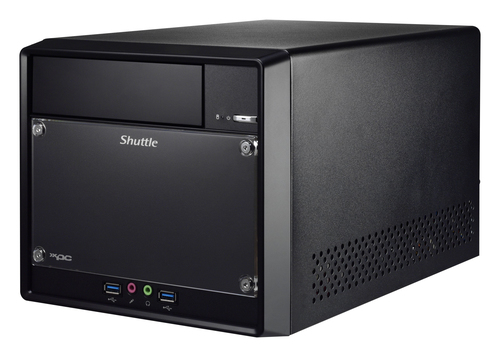

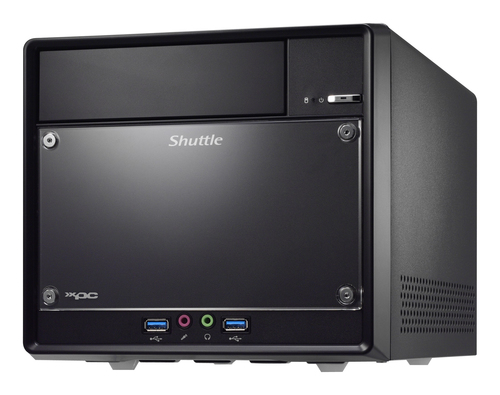

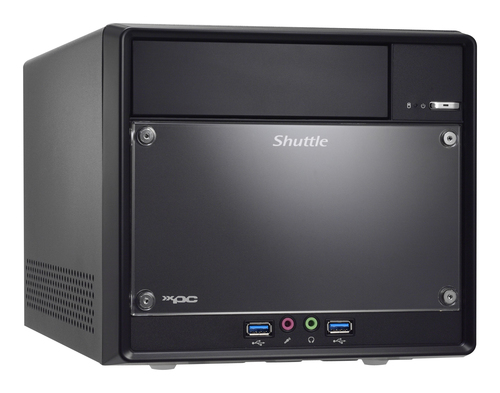

Shuttle XPC cube Barebone SH610R4 - S1700, Intel H610, 1x PCIe X16, 1x PCIe X1, 1x LAN,1x HDMI, 2x DP, 1x VGA
Shuttle

XPC cube Barebone SH610R4 - S1700, Intel H610, 1x PCIe X16, 1x PCIe X1, 1x LAN,1x HDMI, 2x DP, 1x VGA

2x 3.5" HDD bays

Model SH610R4EAN 887993005911

71 specifications
  • TypePC barebone
  • OSNo
  • Weight3.4 kg
  • ColourBlack
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
3.4 kg
Colour
Black
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
SH610R4
Part number
SH610R4
EAN / UPC
887993005911
Also known as
Shuttle XPC cube Barebone SH610R4 - S1700, Intel H610, 1x PCIe X16, 1x PCIe X1, 1x LAN,1x HDMI, 2x DP, 1x VGA 2x 3.5" HDD bays

Specifications

71 specifications in 19 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
ECCNo
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported3.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes
Number of storage drives supported3

Graphics

On-board graphics cardYes

Performance

Motherboard chipsetIntel H610
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo

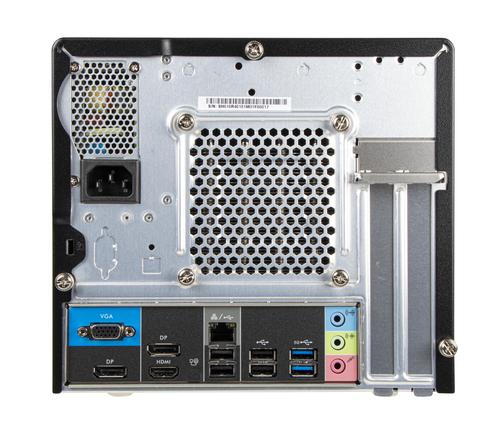

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity2
Microphone inYes
Headphone outputs2
Ethernet LAN (RJ-45) ports1

Expansion slots

PCI Express slots version3.0, 5.0
PCI Express x1 slots1
PCI Express x16 slots1

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsYes
Housing materialAcrylic, Aluminium
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone

Sustainability

Sustainability certificatesENERGY STAR
Sustainability complianceYes

Technical details

Compliance certificatesBSMI, C-TICK, CE, Federal Communications Commission (FCC), RoHS

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeInternal power supply unit
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply300 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width216 mm
Depth329 mm
Height190 mm
Weight3.4 kg
Package weight4.5 kg

Packaging content

Power cord includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
