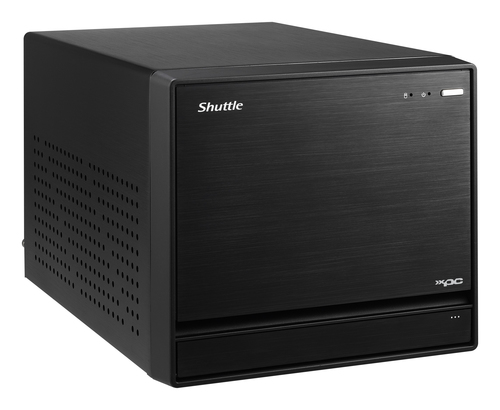

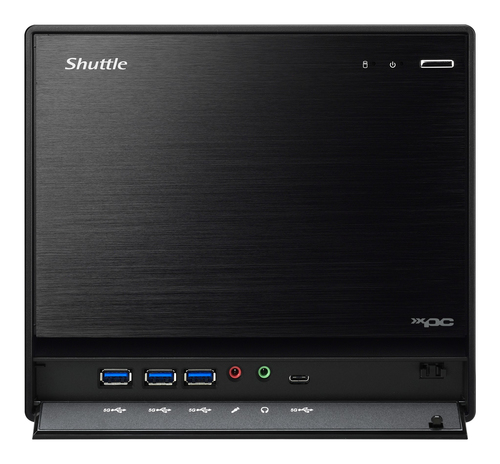

XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP
4x 3.5" HDD bays
Model SH570R8EAN 887993003504
63 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypePC barebone
- OSNo
- Weight3.5 kg
- ColourBlack
- Memory slots typeDIMM
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC barebone
- OS
- No
- Weight
- 3.5 kg
- Colour
- Black
- Memory slots type
- DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SH570R8
- Part number
- SH570R8
- EAN / UPC
- 887993003504, 887993005423
- Also known as
- Shuttle XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays
Specifications
63 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor manufacturer | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| Audio chip | Realtek ALC897 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |

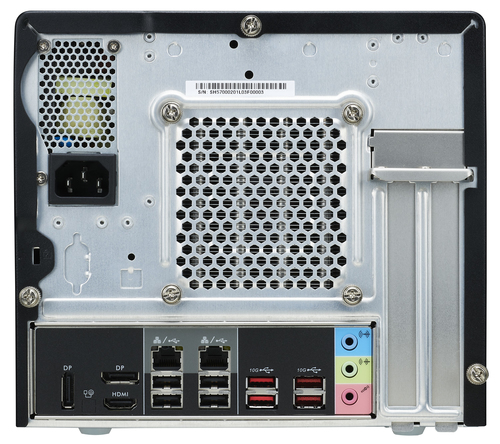

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | 13L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Housing material | Aluminium |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 332 mm |
| Height | 190 mm |
| Weight | 3.5 kg |
| Package weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
