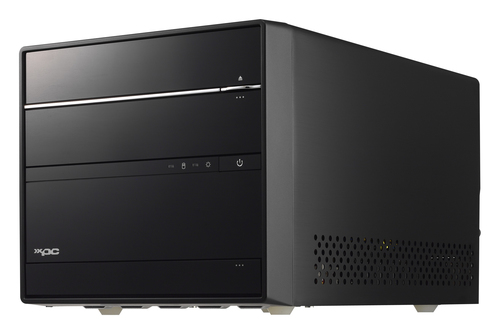

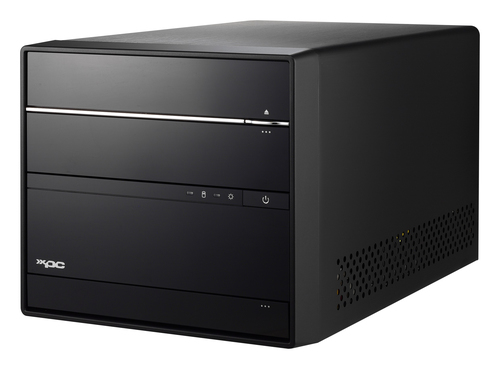

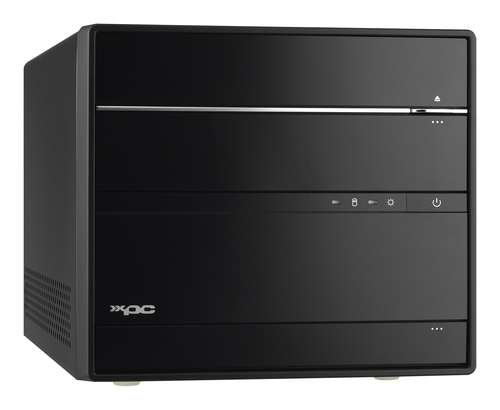

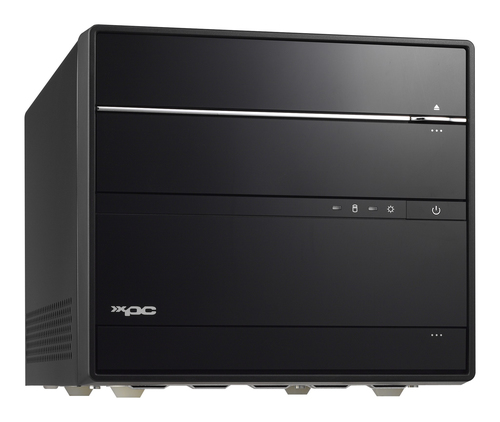

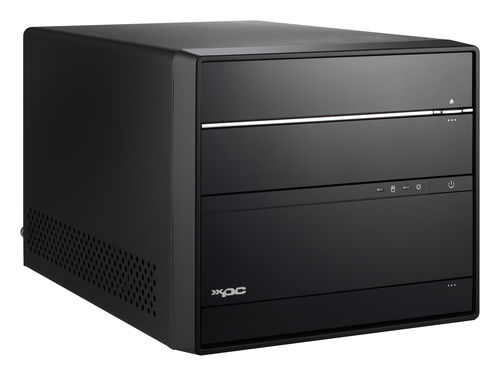

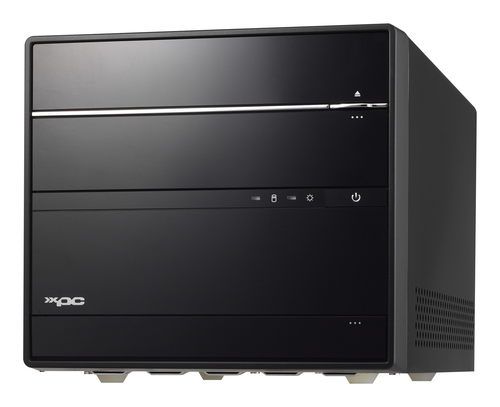

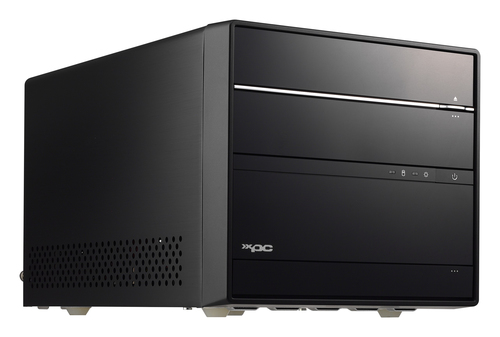

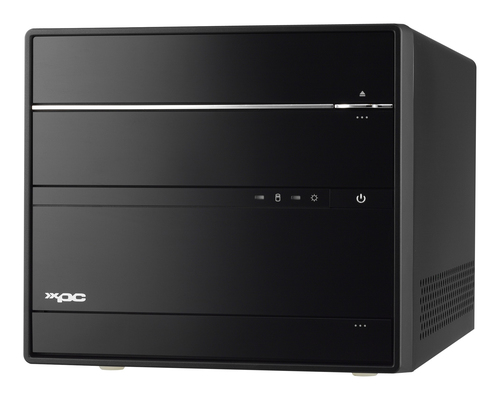

Shuttle XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN
Shuttle

XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN

1x 5.25", 2x 3.5", 300W PSU

Model SH570R6EAN 887993003498

62 specifications
  • TypePC barebone
  • Weight3.5 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
Weight
3.5 kg
Colour
Black
Built-in processor
No
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
SH570R6
Part number
SH570R6
EAN / UPC
887993003498, 887993005416
Also known as
Shuttle XPC cube Barebone SH570R6 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x M.2, 2xDP, 1xHDMI, 2x LAN, 1x 5.25", 2x 3.5", 300W PSU

Specifications

62 specifications in 14 groups

Processor

Built-in processorNo
Thermal Design Power (TDP)125 W

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory128 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5,M.2

Graphics

On-board graphics cardYes

Performance

Motherboard chipsetIntel H570
Processor socketLGA 1200 (Socket H5)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels
Audio chipRealtek ALC897

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I210-AT, Intel® I219-LM

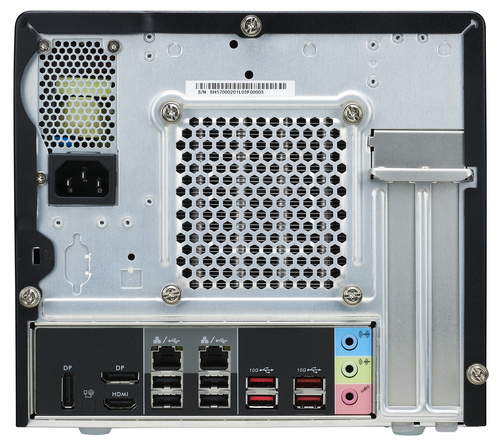

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2

Expansion slots

PCI Express slots version4.0
PCI Express x4 slots1
PCI Express x16 slots1

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
LED indicatorsYes
Housing materialAluminium
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply300 W

Weight & dimensions

Width215 mm
Depth332 mm
Height190 mm
Weight3.5 kg
Package weight4.5 kg

Packaging content

Power cord includedYes
Quick start guideYes
Drivers includedYes
