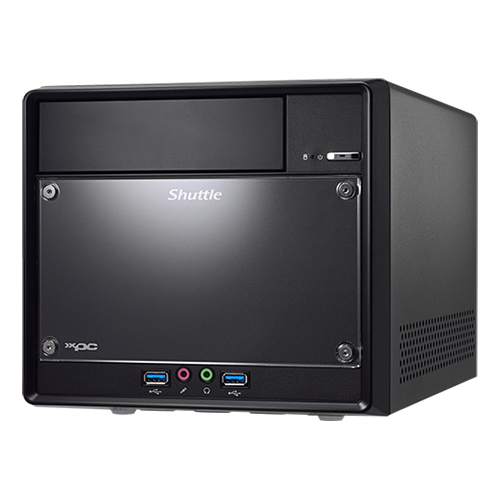

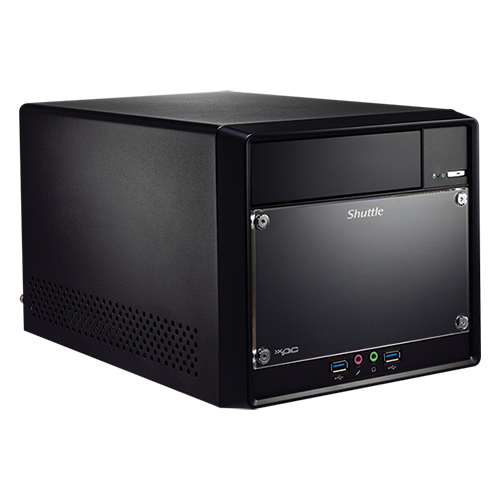

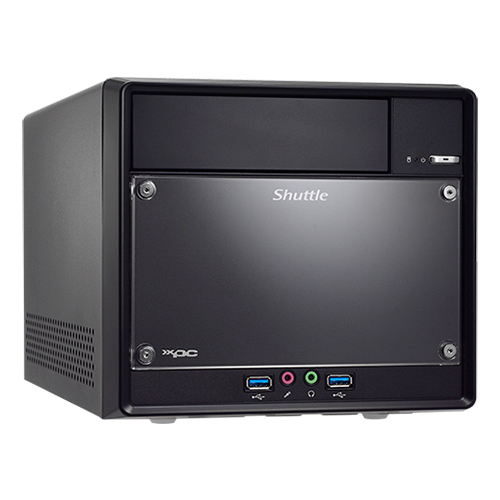

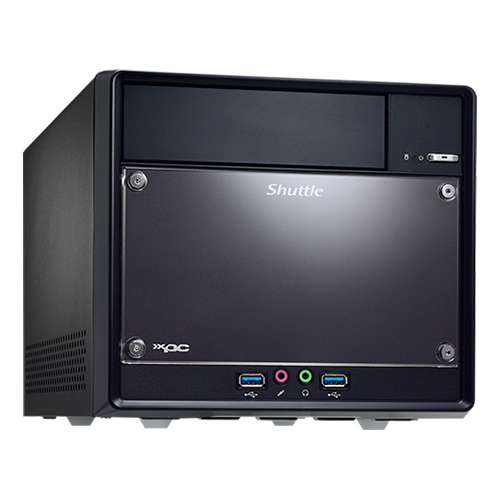

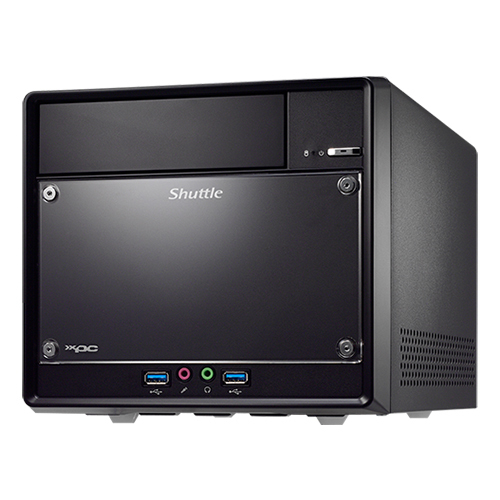

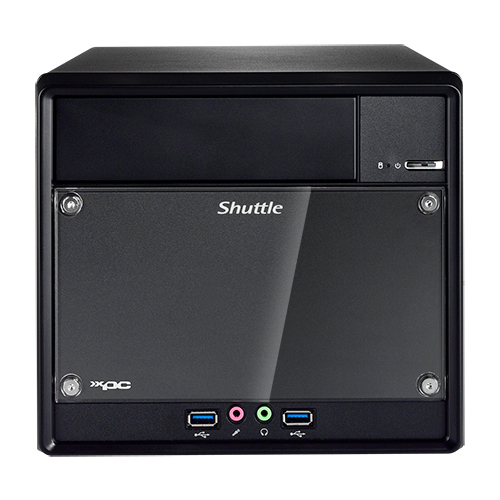

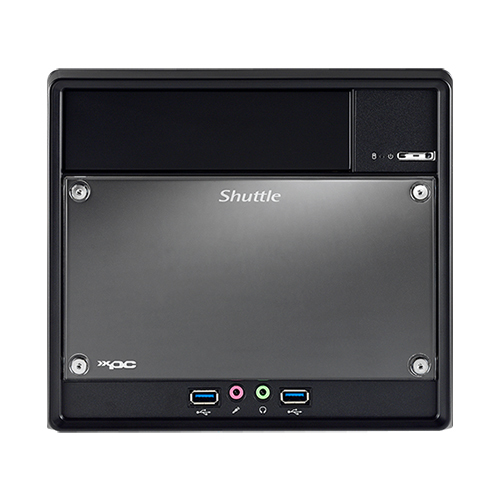

XPC cube Barebone SH510R4 - S1200, Intel H510, 1xDP, 1xHDMI, 1x LAN

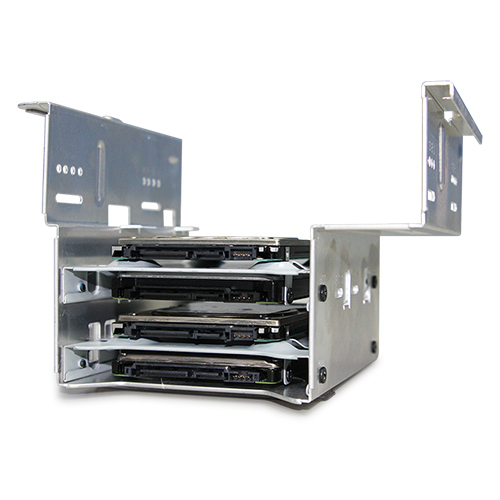

1x 5.25" ODD, 2x 3.5" HDD bays
Model SH510R4EAN 887993003948
46 specifications
- TypeWorkstation barebone
- ColourBlack
- Built-in processorNo
- Number of memory slots2
- Supported storage drive typesHDD & SSD
- Motherboard chipsetIntel H510
Overview
- Type
- Workstation barebone
- Colour
- Black
- Built-in processor
- No
- Number of memory slots
- 2
- Supported storage drive types
- HDD & SSD
- Motherboard chipset
- Intel H510
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SH510R4
- Part number
- SH510R4
- EAN / UPC
- 887993003948, 887993005409
- Also known as
- Shuttle XPC cube Barebone SH510R4 - S1200, Intel H510, 1xDP, 1xHDMI, 1x LAN, 1x 5.25" ODD, 2x 3.5" HDD bays
Specifications
46 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5" |
| Storage drive interface | M.2, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel H510 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Audio output channels | 5.1 channels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM |

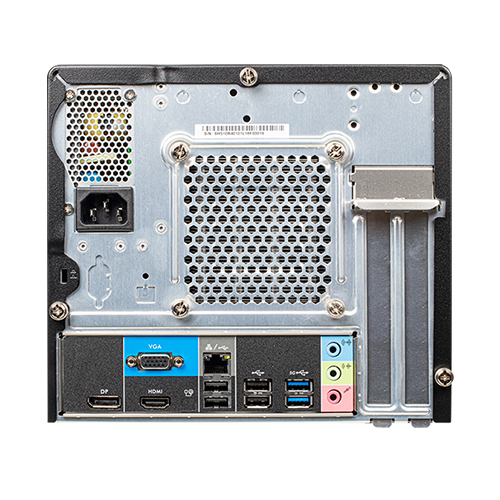

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of SATA III connectors | 3 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Workstation barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Linux operating systems supported | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | CB , BSMI , cTUVus FCC , CE , BSMI , RCM , VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 329 mm |
| Height | 198 mm |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
