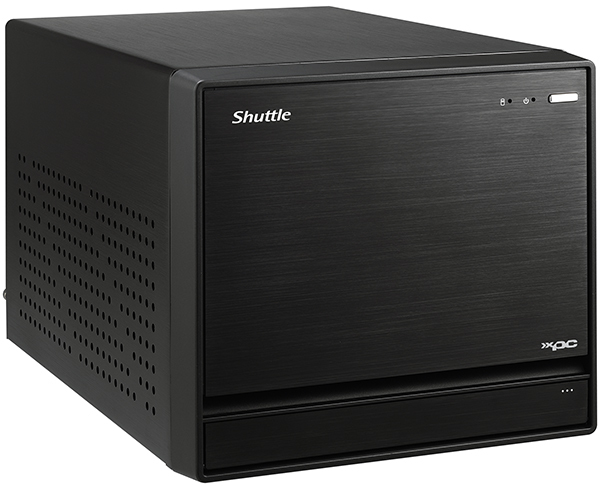

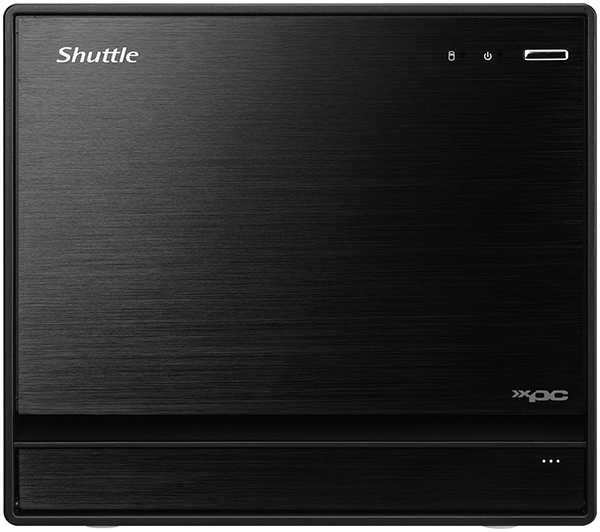

Shuttle XPC cube SH370R8 Black Intel® H370 LGA 1151 (Socket H4)
Shuttle

XPC cube SH370R8 Black Intel® H370 LGA 1151 (Socket H4)

Model SH370R8Part no. PC-SH370R811EAN 887993001616

64 specifications
  • TypePC barebone
  • Weight3.5 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
Weight
3.5 kg
Colour
Black
Built-in processor
No
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
SH370R8
Part number
PC-SH370R811
EAN / UPC
887993001616
Also known as
Shuttle XPC cube SH370R8 Black Intel® H370 LGA 1151 (Socket H4)

Specifications

64 specifications in 19 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5"
Storage drive interfaceSerial ATA III
Number of storage drives supported4

Graphics

On-board graphics cardNo
Graphics card familyIntel

Performance

Motherboard chipsetIntel® H370
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo

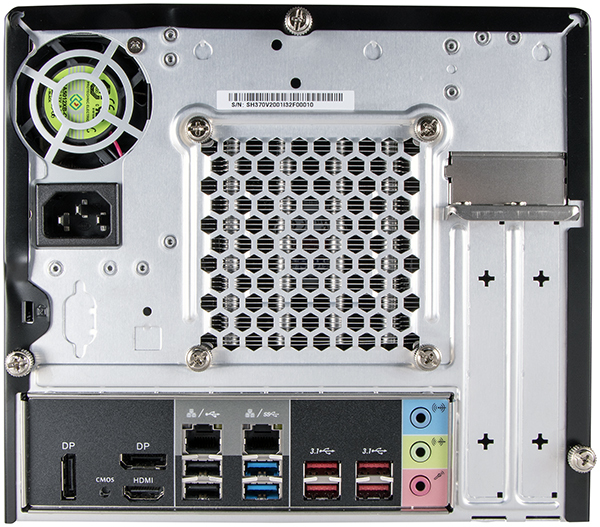

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0a
DisplayPorts quantity2
DisplayPort version1.2
Microphone inYes
Headphone outputs2
Ethernet LAN (RJ-45) ports2

Expansion slots

PCI Express slots version3.0
PCI Express x4 slots1
PCI Express x16 slots1

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
SafetyETL, CB, BSMI

Processor special features

Intel® Optane™ Memory ReadyYes

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84733080

Certificates

CertificationFCC, CE, BSMI, C-Tick, RoHS

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply500 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width215 mm
Depth332 mm
Height190 mm
Weight3.5 kg
Package weight5 kg

Packaging content

Power cord includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
