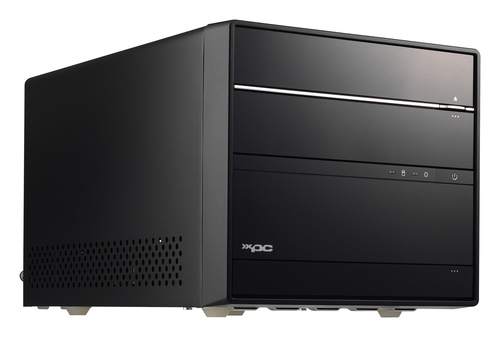

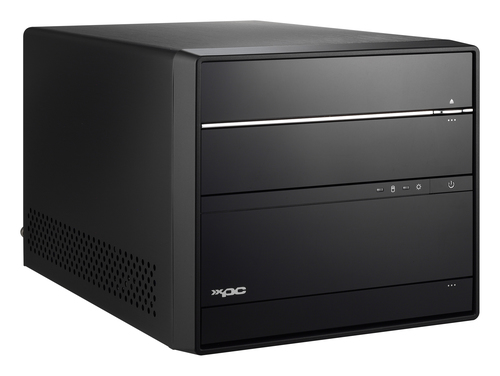

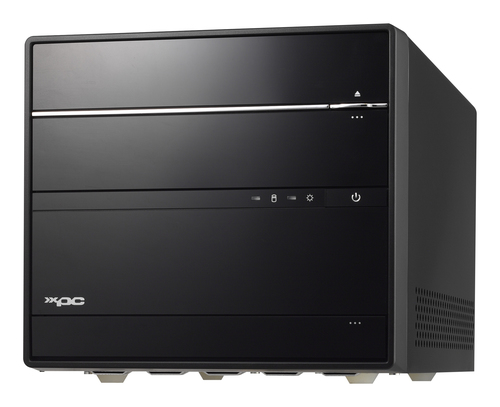

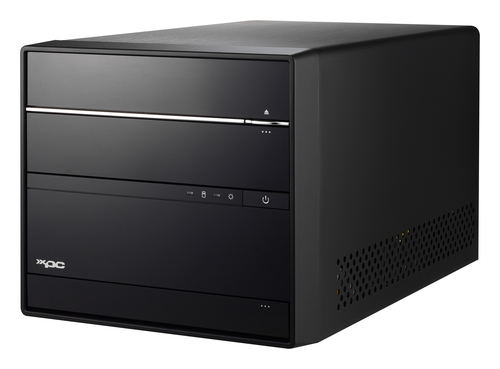

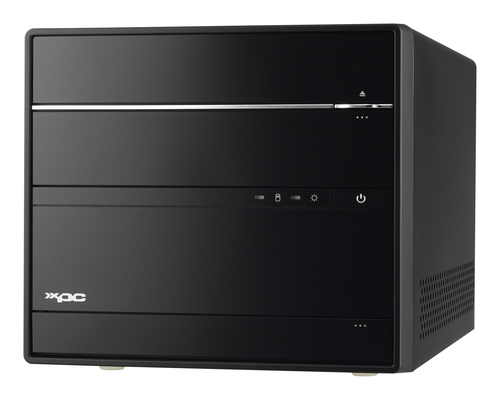

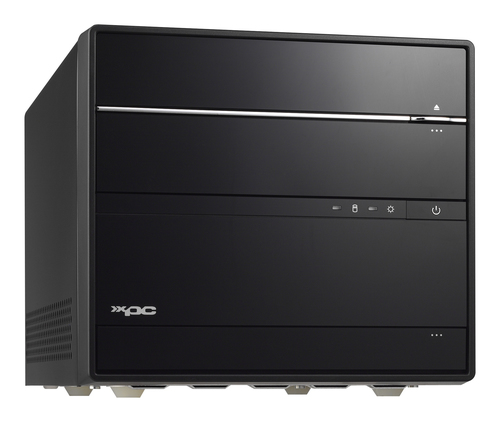

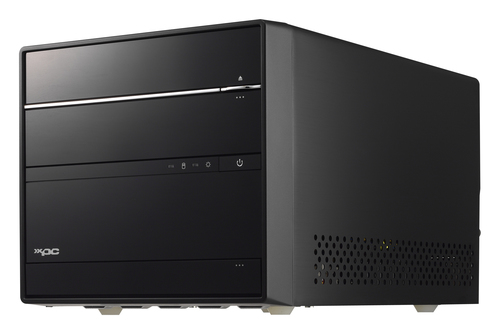

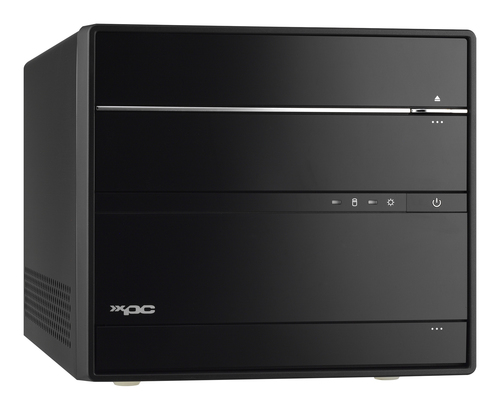

Shuttle SH370R6V2 Plus
Shuttle

SH370R6V2 Plus

Model SH370R6V2 PlusPart no. PC-SH370R641EAN 887993001821

80 specifications
  • TypePC barebone
  • Weight3.5 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
Weight
3.5 kg
Colour
Black
Built-in processor
No
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
SH370R6V2 Plus
Part number
PC-SH370R641
EAN / UPC
887993001821, 887993002682
Also known as
Shuttle XPC cube SH370R6V2 Plus Black Intel® H370 LGA 1151 v2

Specifications

80 specifications in 19 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported3.5,5.25,M.2
SSD form factorM.2
Storage drive interfaceM.2, PCI Express, Serial ATA III
Number of storage drives supported3

Graphics

On-board graphics cardNo
Graphics card familyIntel
Maximum graphics card memory1000 MB

Performance

Motherboard chipsetIntel® H370
Processor socketLGA 1151 v2
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
BIOS typeAMI
BIOS memory size128 Mbit
ACPI version3.0
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I211

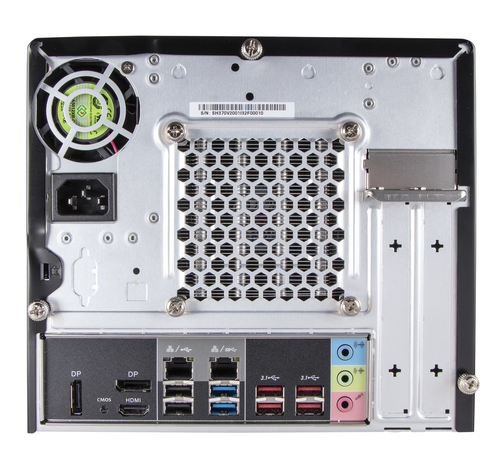

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
Internal USB 2.0 ports quantity2
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
DisplayPort version1.2
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Number of SATA III connectors4

Expansion slots

PCI Express slots version3.0
PCI Express x4 slots1
PCI Express x16 slots1

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsYes
Housing materialAluminium
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
Number of 3.5" bays2
Number of 5.25" bays1
SafetyETL, CB, BSMI

Processor special features

Intel® Optane™ Memory ReadyYes

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84733080

Certificates

CertificationEMI: FCC, CE, BSMI, C-Tick, RoHS, ErP

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply500 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width215 mm
Depth332 mm
Height197 mm
Weight3.5 kg
Package weight4.5 kg

Packaging content

Power cord includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
