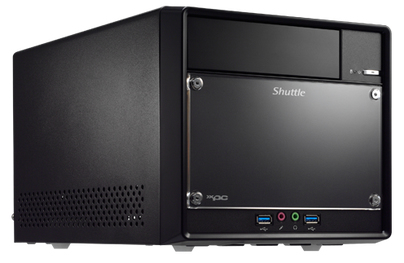

XPC cube SH310R4V2 Black Intel® H310 LGA 1151 (Socket H4)
Model SH310R4V2Part no. PC-SH310R421EAN 887993001647
55 specifications
- Weight3.3 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
- Motherboard chipsetIntel® H310
Overview
- Weight
- 3.3 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Motherboard chipset
- Intel® H310
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SH310R4V2
- Part number
- PC-SH310R421
- EAN / UPC
- 887993001647, 887993002255, 887993002675
- Also known as
- Shuttle XPC cube SH310R4V2 Black Intel® H310 LGA 1151 (Socket H4)
Specifications
55 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5,5.25,M.2 |
| Storage drive interface | PCI Express |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H310 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| BIOS type | UEFI AMI |
| ACPI version | 3.0 |
| Trusted Platform Module (TPM) | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Housing material | Aluminium |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, CE, BSMI, ETL, FCC, RCM, RoHS, VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 332 mm |
| Height | 198 mm |
| Weight | 3.3 kg |
| Package weight | 4.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
