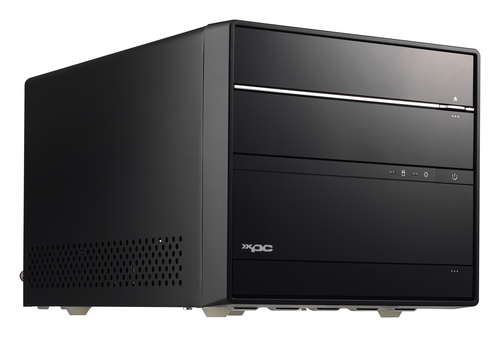

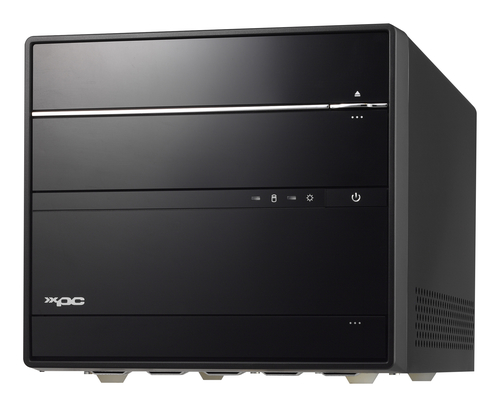

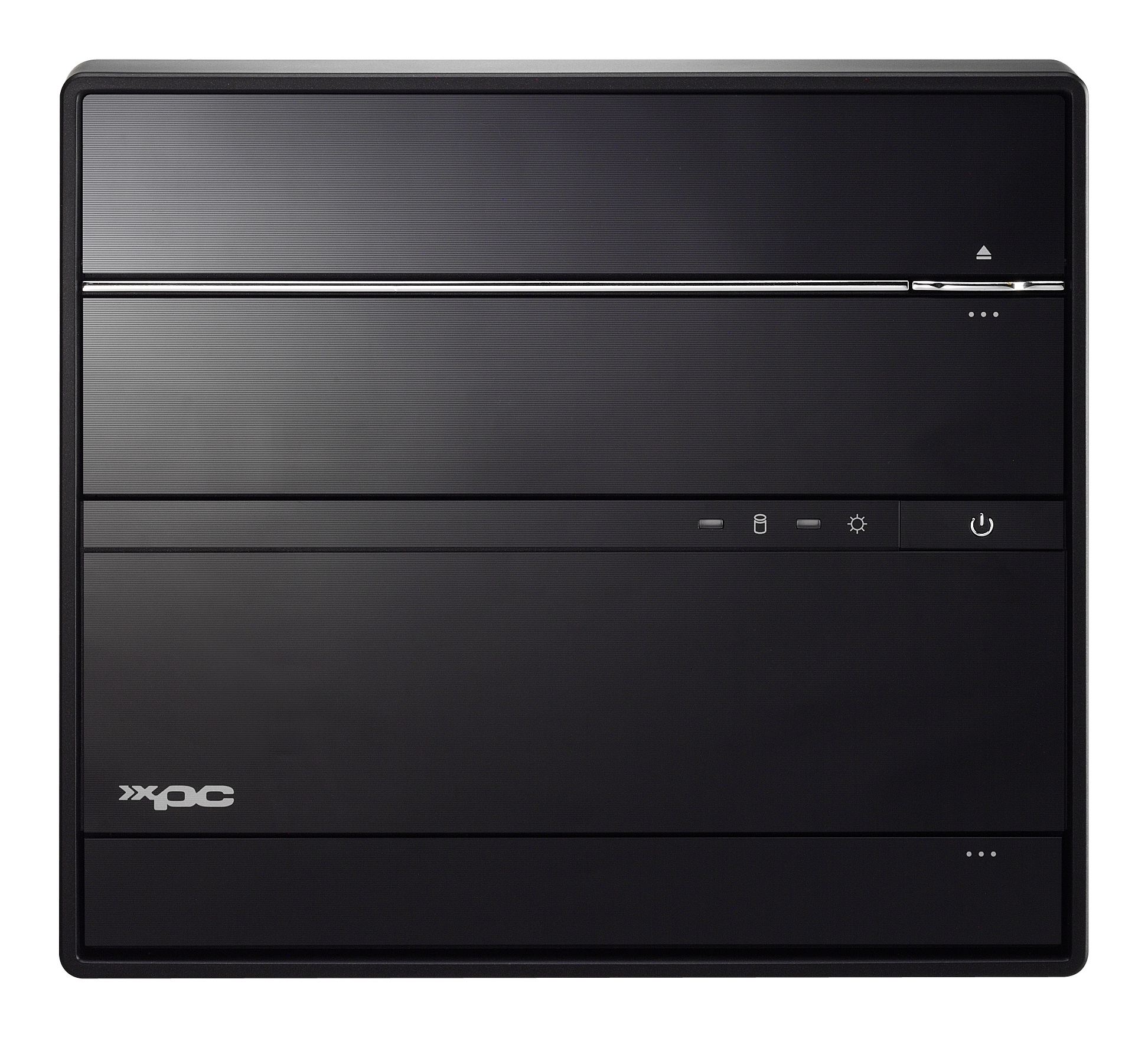

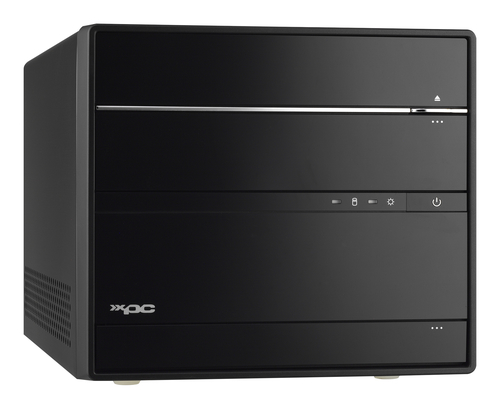

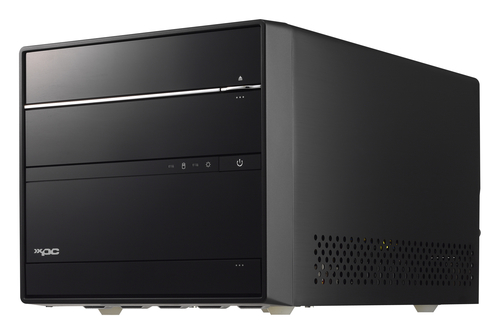

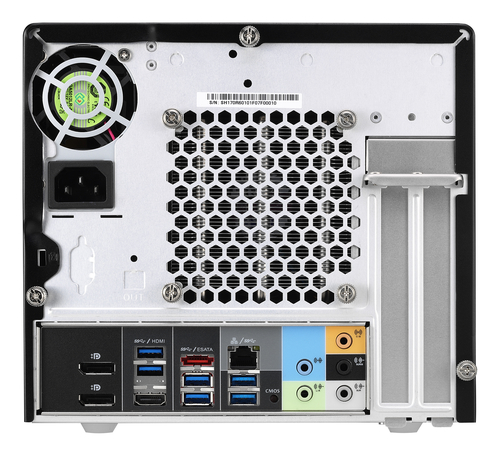

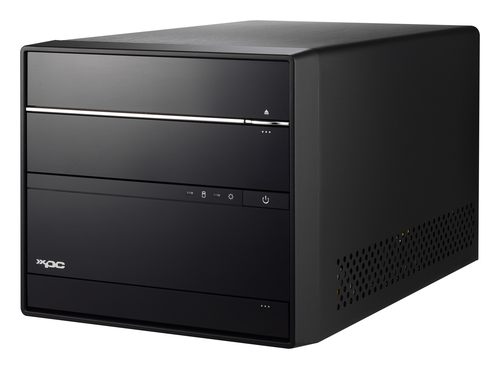

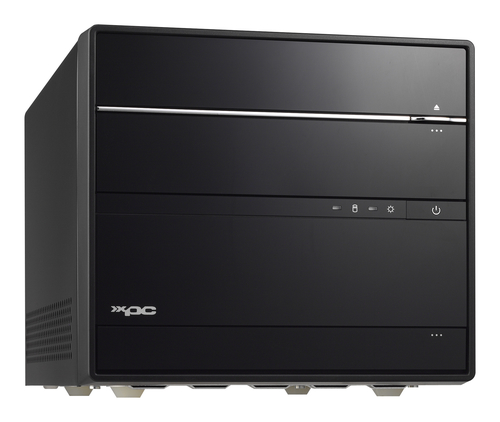

Shuttle SH170R6 Black Intel® H170 LGA 1151 (Socket H4)

Shuttle SH170R6 Black Intel® H170 LGA 1151 (Socket H4)

Model SH170R6Part no. PC-SH170R611EAN 887993000435

59 specifications
  • TypePC barebone
  • OSNo
  • Weight3.5 kg
  • ColourBlack
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
3.5 kg
Colour
Black
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
SH170R6
Part number
PC-SH170R611
EAN / UPC
887993000435, 5054629887851
Also known as
Shuttle SH170R6 Black Intel® H170 LGA 1151 (Socket H4)

Specifications

59 specifications in 18 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory64 GB
Supported memory clock speeds2133 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5"
Storage drive interfaceM.2, Serial ATA III
RAID levels0, 1, 5, 10, JBOD
Card reader integratedNo

Graphics

On-board graphics cardNo

Performance

Motherboard chipsetIntel® H170
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Pentium®
BIOS typeUEFI AMI
Audio output channels7.1 channels
Audio systemHD

Network

Ethernet LANYes
Wi-FiNo

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
HDMI ports quantity1
HDMI version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1

Expansion slots

PCI Express x4 slots1
PCI Express x16 slots1

Design

Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone
SafetyETL, CB, BSMI

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Certificates

CertificationFCC, CE, BSMI, C-Tick, RoHS, ErP 2013

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply300 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 35 °C

Weight & dimensions

Width216 mm
Depth332 mm
Height198 mm
Weight3.5 kg
Package weight5 kg

Packaging content

Power cord includedYes
Drivers includedYes

Other features

Country of originChina
