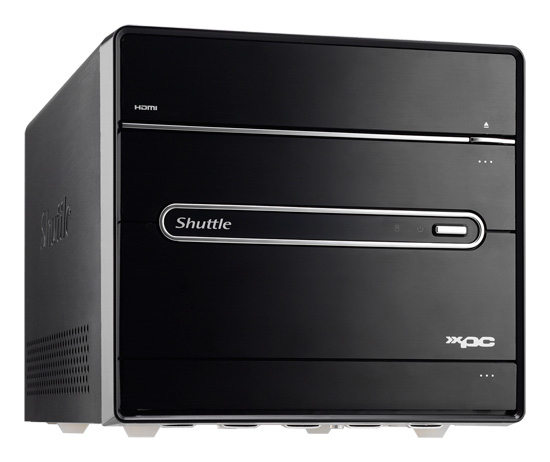

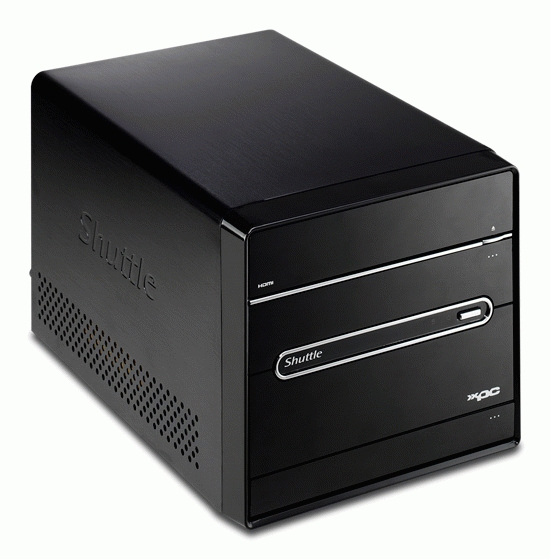

SG45H7 PC/workstation barebone Mini-Tower Black
Model SG45H7EAN 4016138544336
29 specifications
- ProcessorIntel
- Weight5 kg
- ColourBlack
- Memory slots typeDIMM
- Audio output channels7.1 channels
- Networking featuresGigabit Ethernet
Overview
- Processor
- Intel
- Weight
- 5 kg
- Colour
- Black
- Memory slots type
- DIMM
- Audio output channels
- 7.1 channels
- Networking features
- Gigabit Ethernet
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SG45H7
- Part numbers
- SG45H7, XPC-SG45H7
- EAN / UPC
- 4016138544336, 811686002659
- Also known as
- Shuttle SG45H7 PC/workstation barebone Mini-Tower Black
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Performance
| Specification | Value |
|---|---|
| Compatible processor series | Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

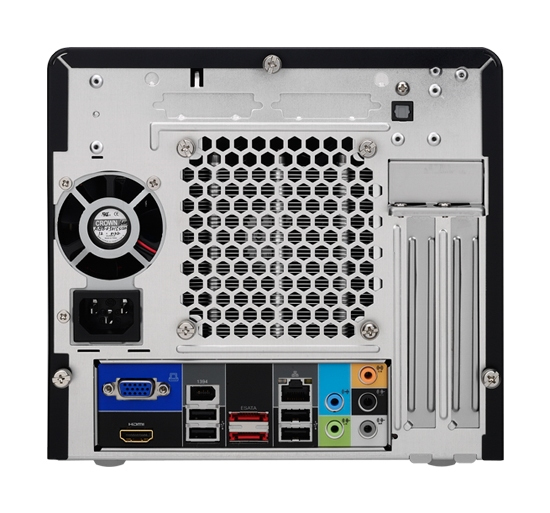

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 208 x 325 x 189 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 3 |
| Power requirements | 100-240V |
| Processor system buses supported | 1066,1333 MHz |
| Drive bays | 1 x 5.25", 2 x 3.5" |
| Expansion slots | 1x PCI-Express v2.0 1x PCI 32 bit |
