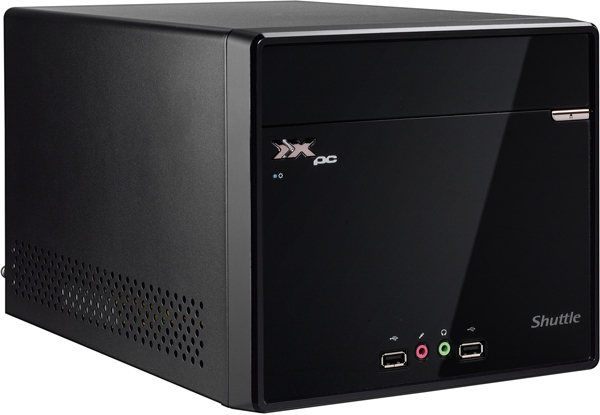

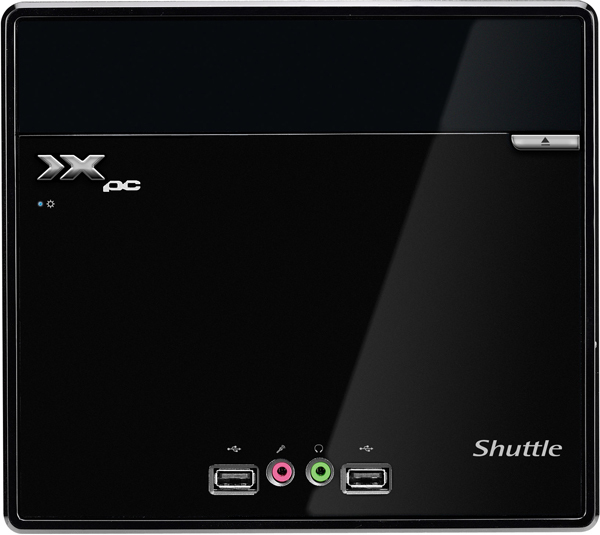

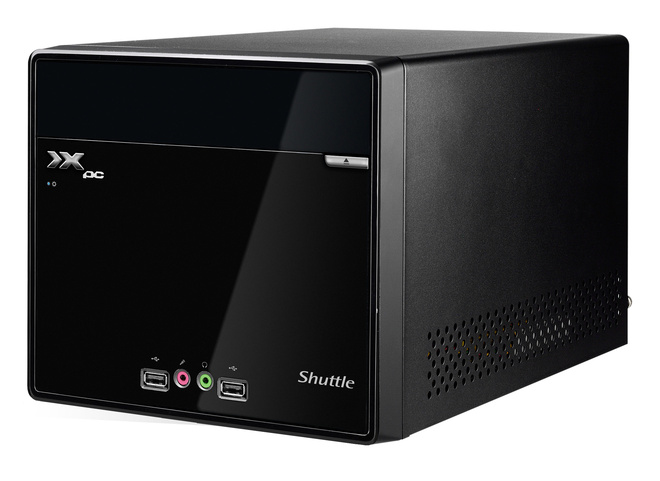

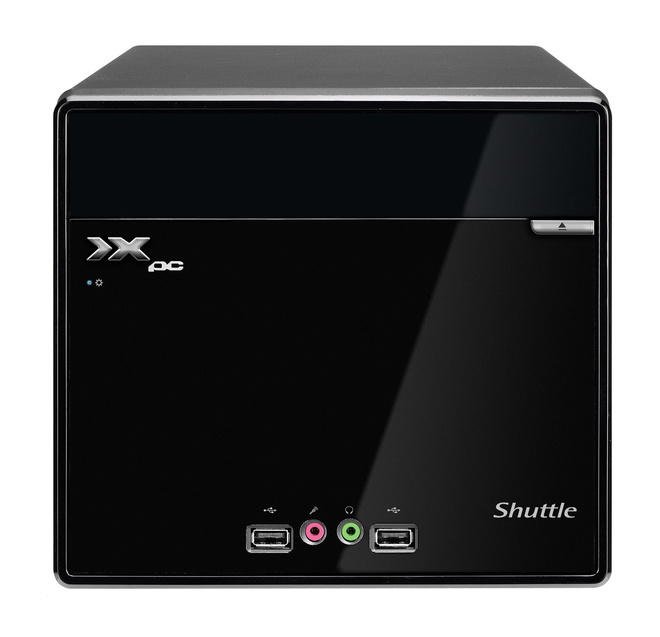

Shuttle SG41J1PV2 PC/workstation barebone Black Intel® G41 Express LGA 775 (Socket T)
Model SG41J1PV2
39 specifications
- Memory0 GB
- Weight7 kg
- ColourBlack
- Memory slots typeDIMM
- Storage drive interfaceParallel ATA, Serial ATA
- On-board graphics cardYes
Overview
- Memory
- 0 GB
- Weight
- 7 kg
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive interface
- Parallel ATA, Serial ATA
- On-board graphics card
- Yes
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SG41J1PV2
- Part number
- SG41J1PV2
- Also known as
- Shuttle SG41J1PV2 PC/workstation barebone Black Intel® G41 Express LGA 775 (Socket T)
Specifications
39 specifications in 12 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Internal memory | 0 GB |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 667,800 MHz |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Parallel ATA, Serial ATA |
| Number of storage drives supported | 4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
| Maximum graphics card memory | 1759 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G41 Express |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® Dual-Core |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Marvell 88E8057 |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Power |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, CB, BSMI, RoHS, Eup Lot6 |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
| Dimensions (WxDxH) | 215 x 325 x 190 mm |
| HDD size | 3.5" |
| Number of SATA connectors | 3 |
| Power LED | Yes |
| Power requirements | 100 - 240 V |
| Processor system buses supported | 800,1066,1333 MHz |
| Motherboard | Shuttle FG41 |
