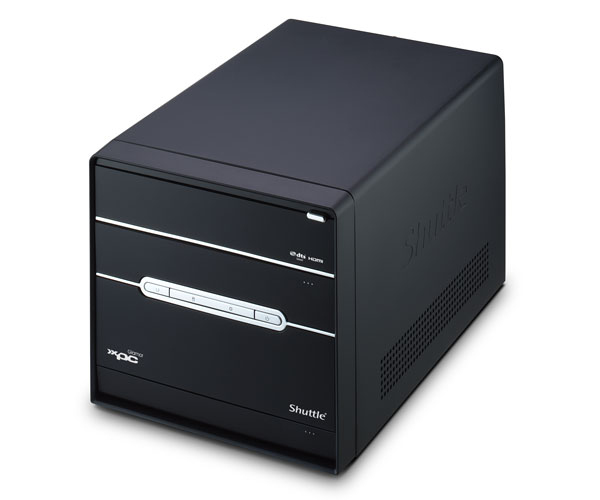

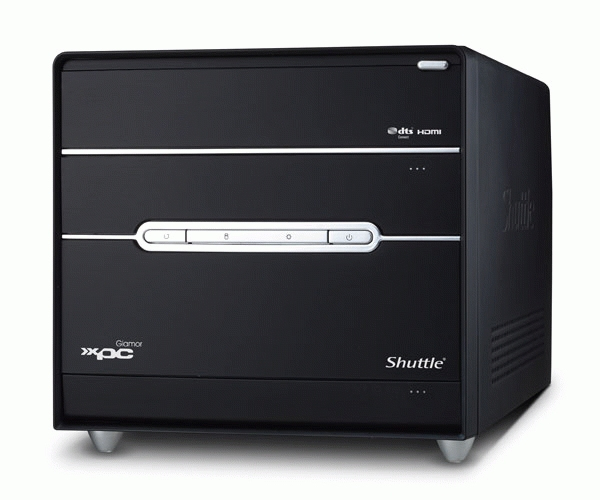

SG33G5 (Glamor Series)
Model SG33G5 (Glamor Series)Part no. XPC-SG33G5EAN 811686002154
33 specifications
- ProcessorIntel
- Weight4.6 kg
- ColourBlack
- Memory slots typeDIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® G33 Express
Overview
- Processor
- Intel
- Weight
- 4.6 kg
- Colour
- Black
- Memory slots type
- DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G33 Express
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SG33G5 (Glamor Series)
- Part number
- XPC-SG33G5
- EAN / UPC
- 811686002154
- Also known as
- Shuttle SG33G5 (Glamor Series) Mini-Tower Black Intel® G33 Express LGA 775 (Socket T)
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3100 |
| Maximum graphics card memory | 384 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G33 Express |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® Dual-Core |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888DD |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

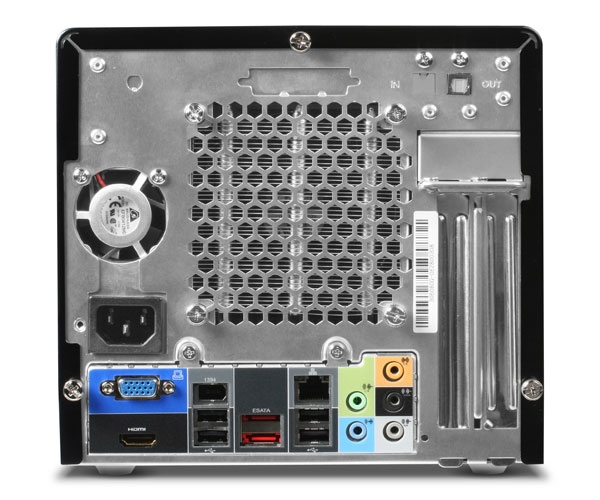

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Housing material | Aluminium |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, CCC, TÜV, UL, CB, CCC, CSA, NEMKO |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.6 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 310 x 185 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 3 |
| Power requirements | 100-240V |
| Processor system buses supported | 800,1066 MHz |
| Expansion slots | 1x PCI-Express (16X) 1x PCI (32 Bit) |
