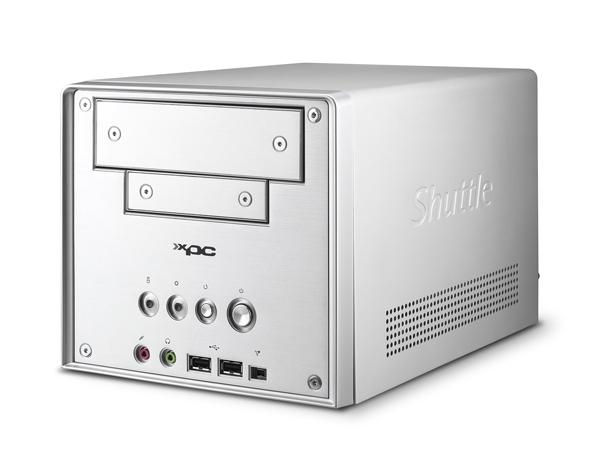

SD30G2 Silver Plus
Model SD30G2 Silver PlusPart no. SD30G2 SILVER
34 specifications
- ProcessorIntel
- Weight3.3 kg
- ColourSilver
- Memory slots typeDIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
Overview
- Processor
- Intel
- Weight
- 3.3 kg
- Colour
- Silver
- Memory slots type
- DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- SD30G2 Silver Plus
- Part numbers
- SD30G2 SILVER, SD30G2GP
- Also known as
- Shuttle SD30G2 Silver Plus Mini-Tower Intel® 945GC Express LGA 775 (Socket T)
Specifications
34 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 224 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® Dual-Core |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Silver |
| Housing material | Aluminium |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, CCC, TÜV, UL, CB, CCC, CSA, NEMKO |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.3 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 300 x 185 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 2 |
| Power requirements | 100-240V |
| Drive bays | 1 x 5.25", 2 x 3.5" |
| Expansion slots | 1 x PCI-Express (16X) 1 x PCI (32 Bit) |
