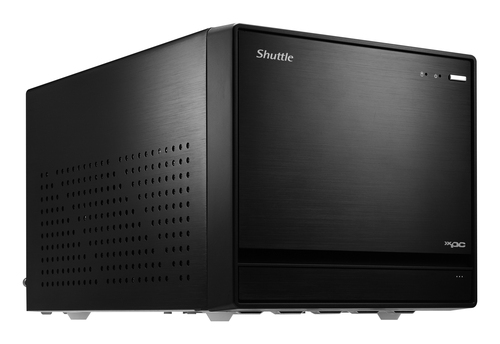

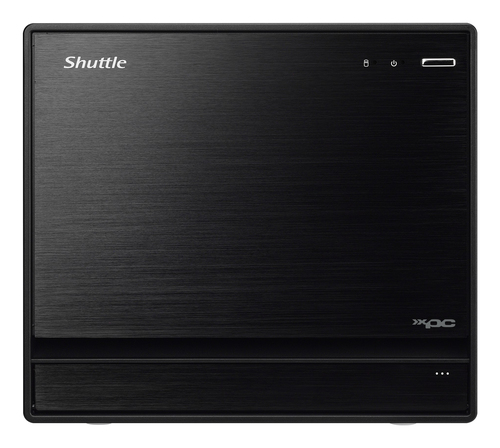

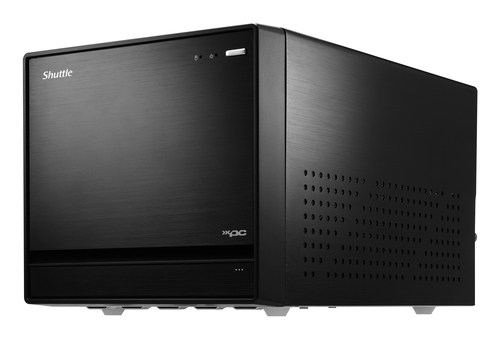

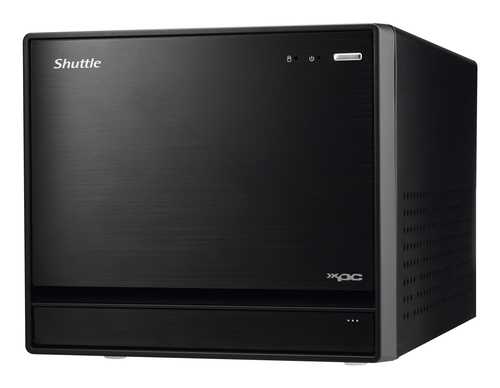

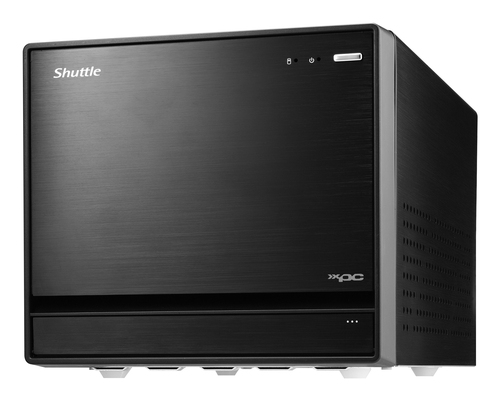

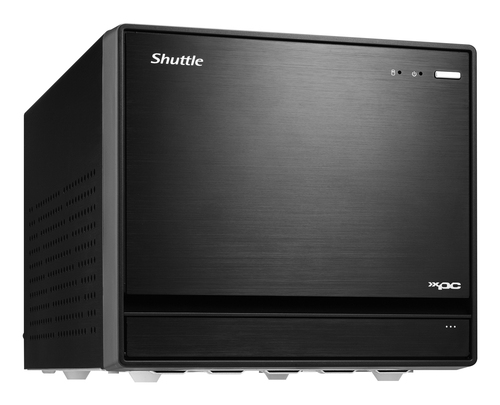

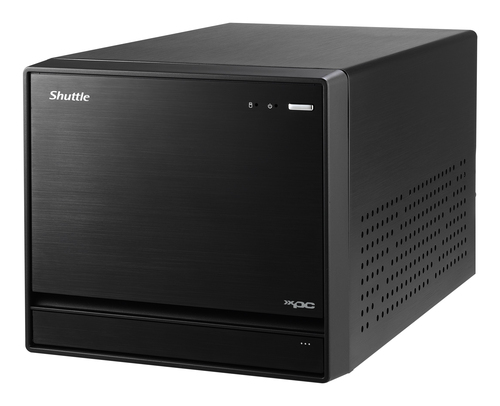

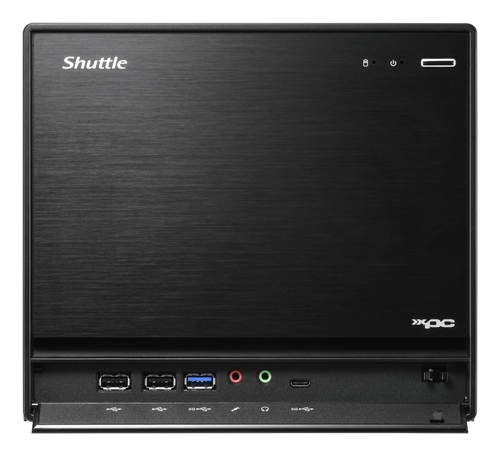

Shuttle XPC cube SB860R8 PC/workstation barebone Black Intel B860 LGA 1851 (Socket V1)
Shuttle

XPC cube SB860R8 PC/workstation barebone Black Intel B860 LGA 1851 (Socket V1)

Model SB860R8

69 specifications
  • TypePC barebone
  • Weight3.9 kg
  • ColourBlack
  • Built-in processorNo
  • On-board graphics cardYes
  • Motherboard chipsetIntel B860
See all specifications

Overview

Type
PC barebone
Weight
3.9 kg
Colour
Black
Built-in processor
No
On-board graphics card
Yes
Motherboard chipset
Intel B860
Brand
Shuttle
Model
SB860R8
Part number
SB860R8
Also known as
Shuttle XPC cube SB860R8 PC/workstation barebone Black Intel B860 LGA 1851 (Socket V1)

Specifications

69 specifications in 16 groups

Processor

Built-in processorNo

Memory

Internal memory installedNo
Memory slots typeDIMM
Number of memory slots4
Maximum internal memory192 GB
Memory channelsDual-channel
Memory voltage1.1 V
Supported memory clock speeds5600 MHz
Supported memory typesDDR5-SDRAM
ECCNo
Non-ECCYes

Storage

Storage drives installedNo
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
M.2 SSD size2280 (22 x 80 mm)
Storage drive interfaceSerial ATA III, PCI Express
NVMeYes

Graphics

On-board graphics cardYes

Performance

Motherboard chipsetIntel B860
Processor socketLGA 1851 (Socket V1)
Number of processors supported1
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealTek ALC888

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel I226-LM

Ports & interfaces

USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity2
HDMI version2.0b/2.1
DisplayPorts quantity2
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialAluminium
Cable lock slotYes
Cable lock slot typeKensington
Product typePC barebone

Sustainability

Sustainability certificatesErP, ENERGY STAR

Technical details

Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), RoHS

Software

Windows operating systems supportedWindows 11
Linux operating systems supportedYes

Power

Power supply typeInternal power supply unit
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply500 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width215 mm
Depth332 mm
Height190 mm
Weight3.9 kg
Package weight5 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
