PC XH510G2
Model PC XH510G2Part no. PIB-XH510G201EAN 887993004198
70 specifications
- TypePC barebone
- OSNo
- Weight2.98 kg
- ColourBlack
- Memory slots typeSO-DIMM
- Supported storage drive typesSSD
Overview
- Type
- PC barebone
- OS
- No
- Weight
- 2.98 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Supported storage drive types
- SSD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- PC XH510G2
- Part number
- PIB-XH510G201
- EAN / UPC
- 887993004198
- Also known as
- Shuttle XPС slim PC XH510G2 Black Intel H510 LGA 1200 (Socket H5)
Specifications
70 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel H510 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM |

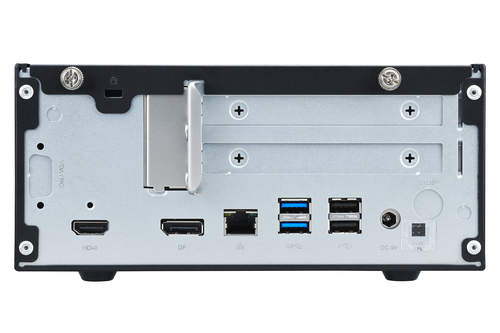

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 75 mm |
| Product type | PC barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 9.23 A |
| AC adapter output voltage | 19.5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 180 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 200 mm |
| Height | 95 mm |
| Weight | 2.98 kg |
| Package weight | 3.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
