Shuttle Panel PC P21WL01-i5
Shuttle

Panel PC P21WL01-i5

Model Panel PC P21WL01-i5Part no. P21WL01-I5EAN 887993005324

90 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • SpeedWi-Fi 5 (802.11ac)
  • TypeAll-in-One PC barebone
  • OSNo
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Speed
Wi-Fi 5 (802.11ac)
Type
All-in-One PC barebone
OS
No
Brand
Shuttle
Model
Panel PC P21WL01-i5
Part number
P21WL01-I5
EAN / UPC
887993005324
Also known as
Shuttle All-In-One Panel PC BareboneP21WL01-i5, 21.5" Multi-Touch-Screen, i5-8365UE, 2xLAN, IP65, fanless, 24/7 permanent operation

Specifications

90 specifications in 17 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation8th gen Intel® Core™ i5
Processor modeli5-8365UE
Processor cores4
Processor threads8
Processor boost frequency4.1 GHz
Processor frequency1.6 GHz
Processor lithography14 nm
Processor cache6 MB
Thermal Design Power (TDP)15 W
CPU configuration (max)1

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesSSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics 620

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
Aspect ratio16:9
Display brightness300 cd/m²
Panel typeTFT

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
Bluetooth version4.2
LAN controllerIntel® I211, Intel® I219-LM

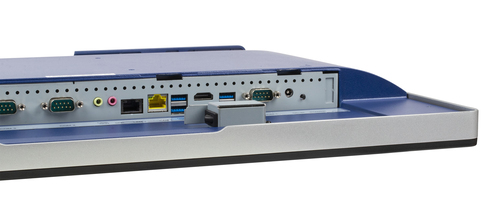

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version1.4b
DVI portYes
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity3
DC-in jackYes

Design

Chassis typeAll-in-One
Product colourBlack, Blue
Cooling typePassive
On/off switchYes
LED indicatorsYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeAll-in-One PC barebone
SafetyCB, cTUVus, BSMI

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC)

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84714100

Sustainability

Sustainability complianceYes

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width543 mm
Depth49.9 mm
Height334 mm
Weight7.6 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
