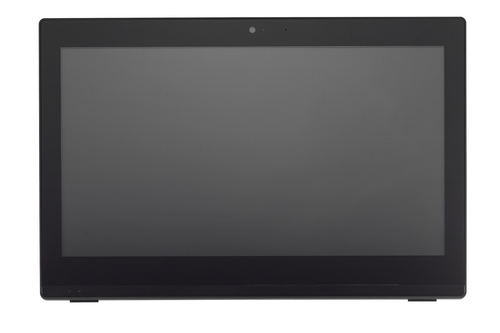

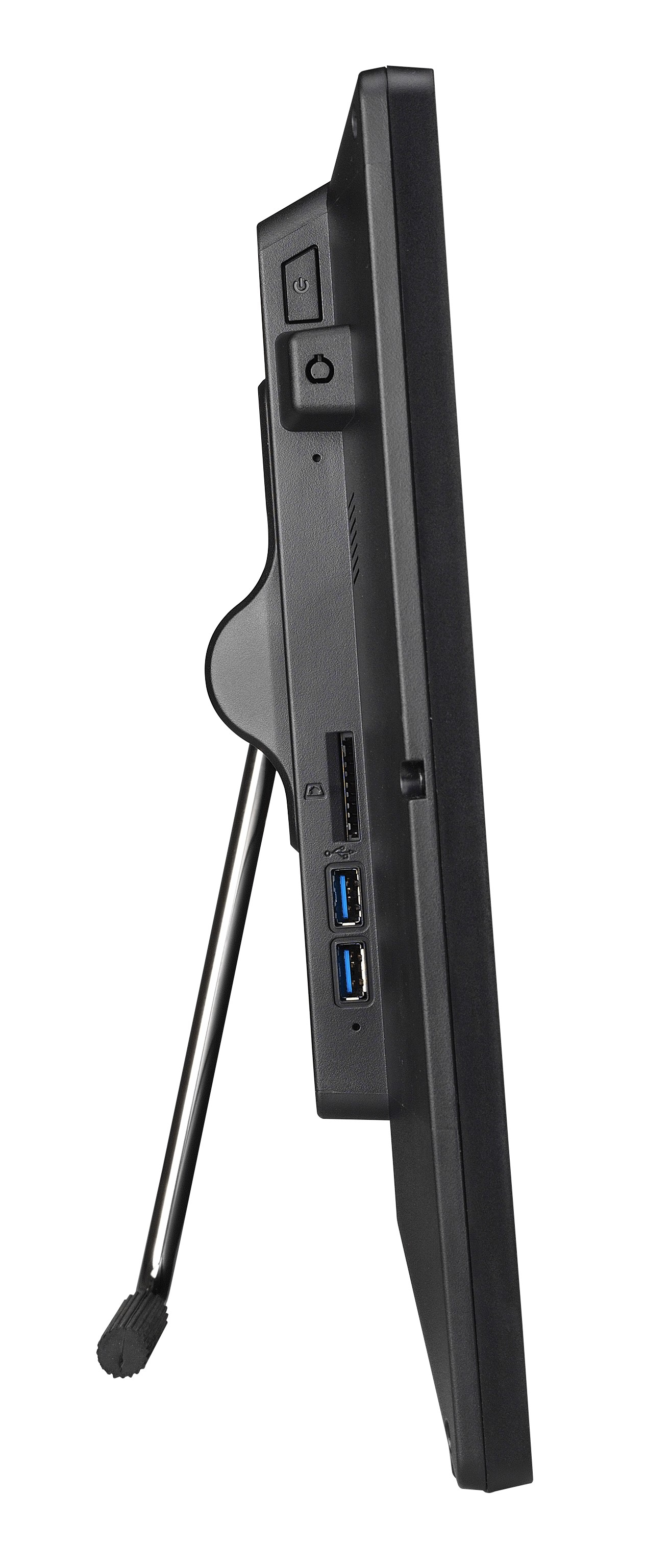

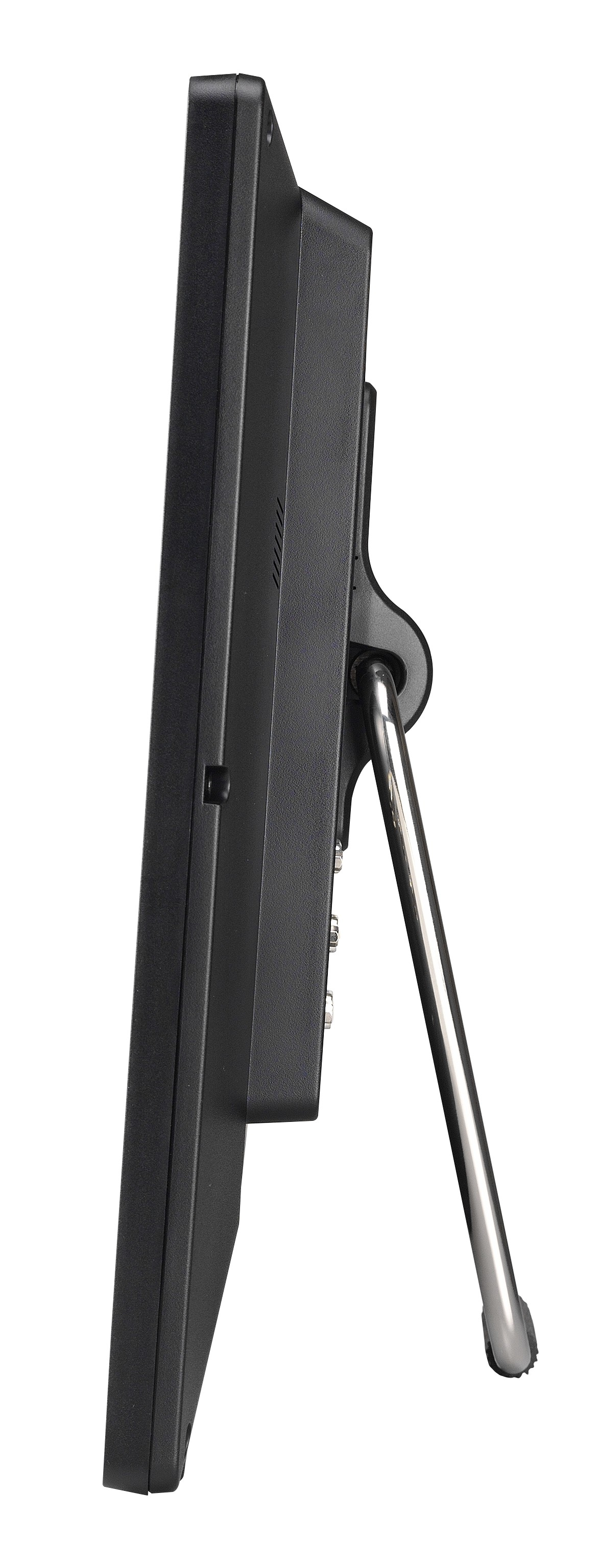

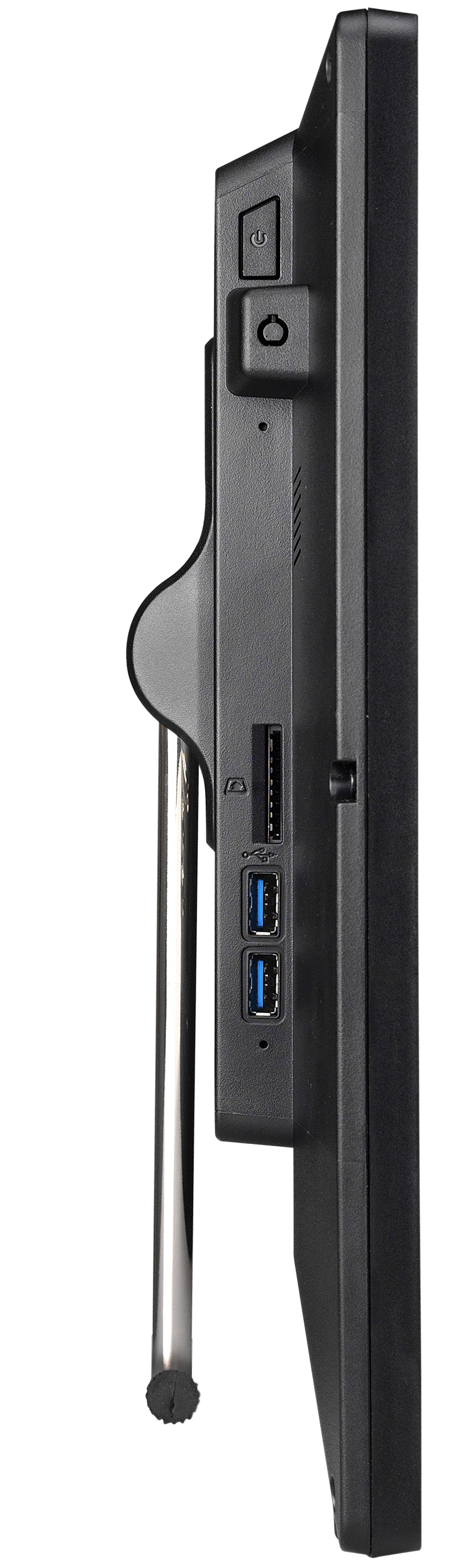

P92U (black)
Model P92U (black)Part no. PAB-P92U021EAN 887993004488
106 specifications
- Display49.5 cm (19.5")
- Resolution1600 x 900 pixels
- ProcessorIntel® Celeron®
- SpeedWi-Fi 5 (802.11ac)
- TypeAll-in-One PC barebone
- OSNo
Overview
- Display
- 49.5 cm (19.5")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Celeron®
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- All-in-One PC barebone
- OS
- No
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- P92U (black)
- Part number
- PAB-P92U021
- EAN / UPC
- 887993004488, 887993005249
- Also known as
- Shuttle All-In-One Barebone P92U, 19.5" Multi-Touch-Screen, Celeron 5205U, Wifi, IP54, fanless, 24/7 permanent operation
Specifications
106 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 5205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.9 GHz |
| Processor lithography | 14 nm |
| Processor cache | 2 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 610 |
Performance
| Specification | Value |
|---|---|
| Number of processors supported | 1 |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 49.5 cm (19.5") |
| Display resolution | 1600 x 900 pixels |
| Touchscreen | Yes |
| HD type | HD+ |
| Aspect ratio | 16:9 |
| Panel type | LCD |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Intel® I211 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RED, FCC, RCM, VCCI, CB, ETL |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 487 mm |
| Depth | 44 mm |
| Height | 321 mm |
| Weight | 4.29 kg |
| Package weight | 5.62 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
