Shuttle All-In-One Barebone P25N
Shuttle

All-In-One Barebone P25N

11.6" Multi-Touch-Screen, Intel N100 , IP54, fanless, 24/7 permanent operation

Model P25NEAN 887993006536

91 specifications
  • Display29.5 cm (11.6")
  • Resolution1366 x 768 pixels
  • ProcessorN100
  • SpeedWi-Fi 5 (802.11ac)
  • TypeAll-in-One PC barebone
  • OSNo
See all specifications

Overview

Display
29.5 cm (11.6")
Resolution
1366 x 768 pixels
Processor
N100
Speed
Wi-Fi 5 (802.11ac)
Type
All-in-One PC barebone
OS
No
Brand
Shuttle
Model
P25N
Part number
P25N
EAN / UPC
887993006536
Also known as
Shuttle All-In-One Barebone P25N, 11.6" Multi-Touch-Screen, Intel N100 , IP54, fanless, 24/7 permanent operation

Specifications

91 specifications in 19 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor modelN100
Processor cores4
Processor threads4
Processor boost frequency3.4 GHz
Thermal Design Power (TDP)6 W

Memory

Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory16 GB
Memory channelsSingle-channel
Memory voltage1.1 V
Supported memory clock speeds4800 MHz
Supported memory typesDDR5-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
Number of storage drives supported2

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics

Performance

Number of processors supported1
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealTek ALC888S

Display

Display diagonal29.5 cm (11.6")
Display resolution1366 x 768 pixels
TouchscreenYes
HD typeHD
Aspect ratio16:9
Display brightness250 cd/m²
Panel typeTN

Audio

Built-in speaker(s)Yes
Number of speakers1
RMS rated power2 W

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
Bluetooth version4.2
LAN controllerIntel I226-LM

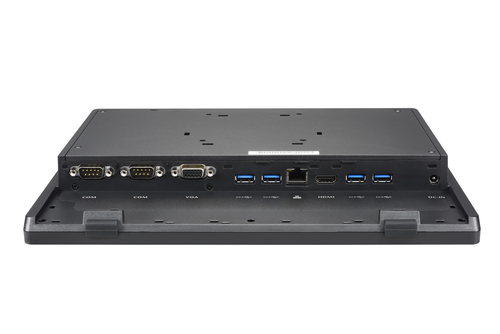

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
Microphone inYes
Headphone outputs1
COM ports quantity2
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Expansion slots

PCI Express slots version3.0

Design

Chassis typeAll-in-One
Product colourBlack
Cooling typePassive
On/off switchYes
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75 mm
Product typeAll-in-One PC barebone

Sustainability

Sustainability certificatesENERGY STAR, ErP
Sustainability complianceYes

Technical details

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84714100

Power

Power supply typeExternal AC adapter
AC adapter output current3.42 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width299 mm
Depth59 mm
Height207 mm
Weight1.95 kg
Package weight3.14 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
