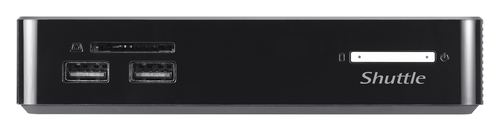

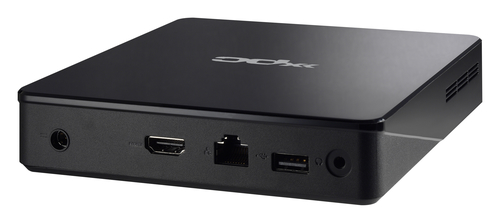

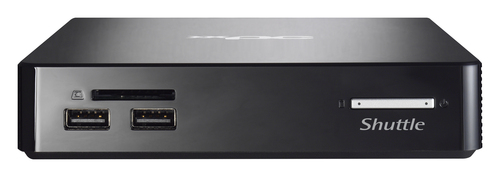

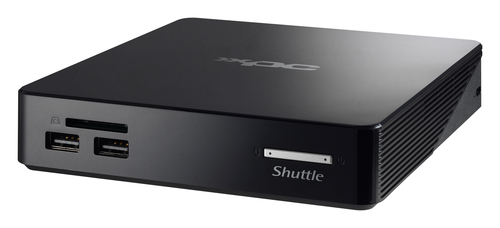

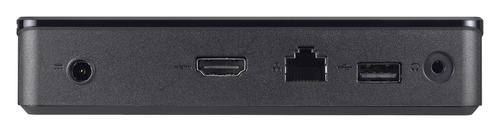

Shuttle XPC nano NS02A Nettop Black RK3368
1.5 GHz
Model NS02APart no. PFB-NS02A001EAN 887993600536
53 specifications
- ProcessorRockchip
- OSAndroid
- Weight270 g
- ColourBlack
- Built-in processorYes
- Supported memory typesDDR3L-SDRAM
Overview
- Processor
- Rockchip
- OS
- Android
- Weight
- 270 g
- Colour
- Black
- Built-in processor
- Yes
- Supported memory types
- DDR3L-SDRAM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- NS02A
- Part number
- PFB-NS02A001
- EAN / UPC
- 887993600536, 818214681683, 887993600499, 887993601595 +1 more
- Also known as
- Shuttle XPC nano NS02A Nettop Black RK3368 1.5 GHz
Specifications
53 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor family | Rockchip |
| Processor model | RK3368 |
| Processor cores | 8 |
| Processor frequency | 1.5 GHz |
| Processor lithography | 28 nm |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Safety | ETL, CB, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, RCM, CCC, R&TTE, VCCI, RoHS |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 24 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 141 mm |
| Depth | 141 mm |
| Height | 29 mm |
| Weight | 270 g |
| Package weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
