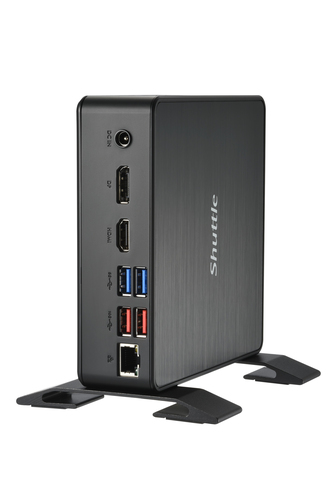

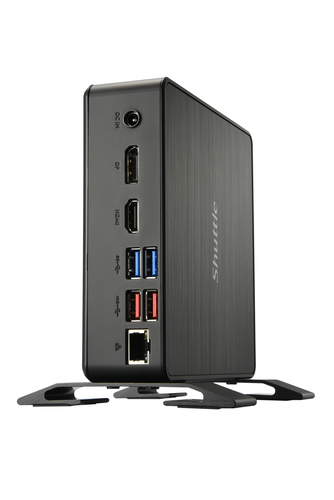

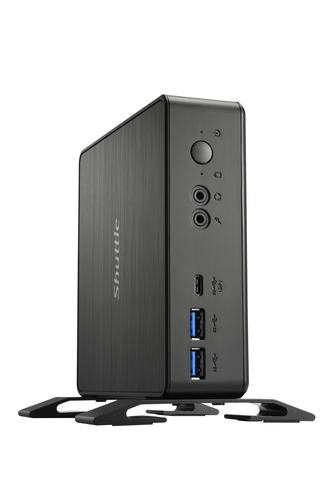

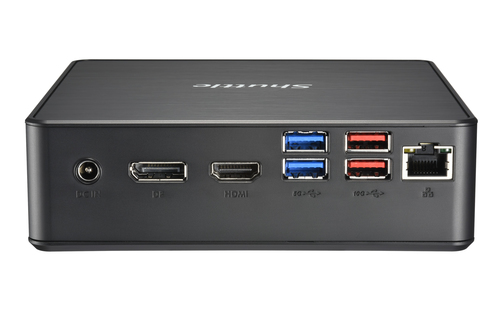

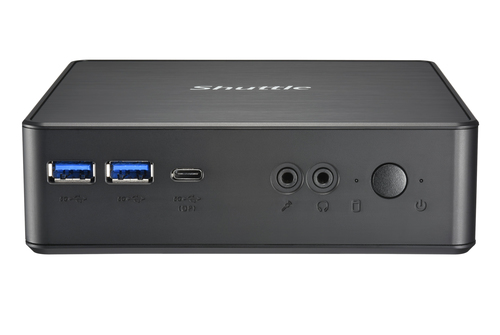

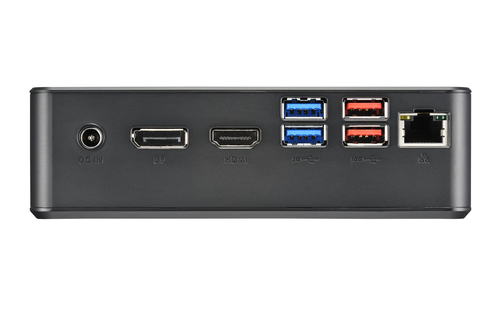

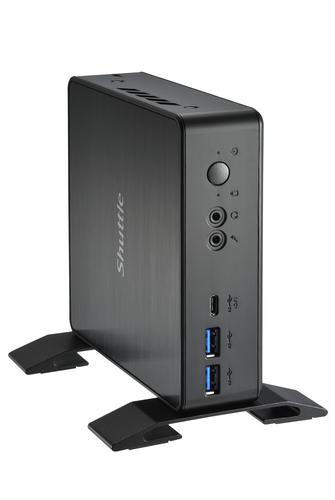

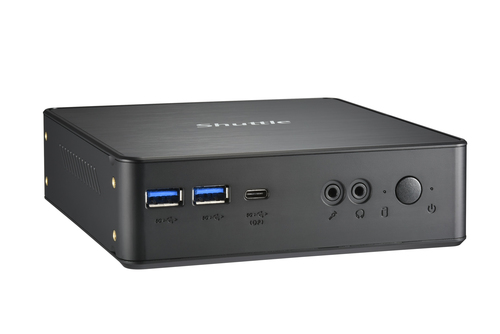

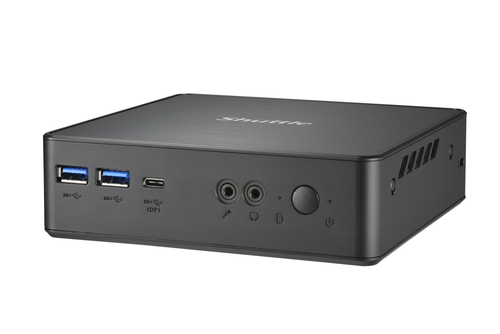

Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2
Shuttle

XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2

1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA &

Model NC40UEAN 887993005904

90 specifications
  • ProcessorIntel® Celeron®
  • TypeMini PC barebone
  • OSNo
  • Weight400 g
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
Intel® Celeron®
Type
Mini PC barebone
OS
No
Weight
400 g
Colour
Black
Built-in processor
Yes
Brand
Shuttle
Model
NC40U
Part number
NC40U
EAN / UPC
887993005904
Also known as
Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA &

Specifications

90 specifications in 18 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor model7305
Processor cores5
Processor threads5
Processor frequency1.1 GHz
Performance cores1
Efficient cores4
Processor cache8 MB

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM
ECCNo
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes
Number of storage drives supported3
Card reader integratedNo

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Maximum resolution7680 x 4320 pixels

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I219

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity0
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Expansion slots

PCI Express slots version3.0, 4.0
Number of M.2 (M) slots2

Design

Chassis type0.84L sized PC
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialPlastic
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone
SafetyCB IEC60950/62368, cTUVus (UL 62368)

Sustainability

Sustainability certificatesENERGY STAR, ErP
Sustainability complianceYes

Technical details

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeExternal AC adapter
AC adapter output current3.42 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width142 mm
Depth142 mm
Height42 mm
Weight400 g
Package weight1.2 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
