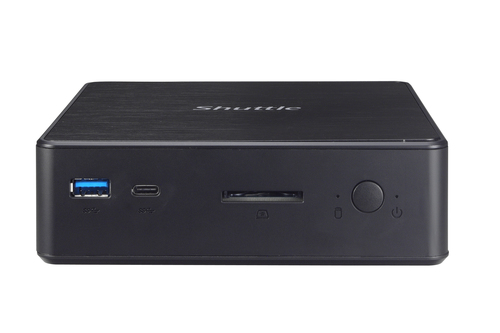

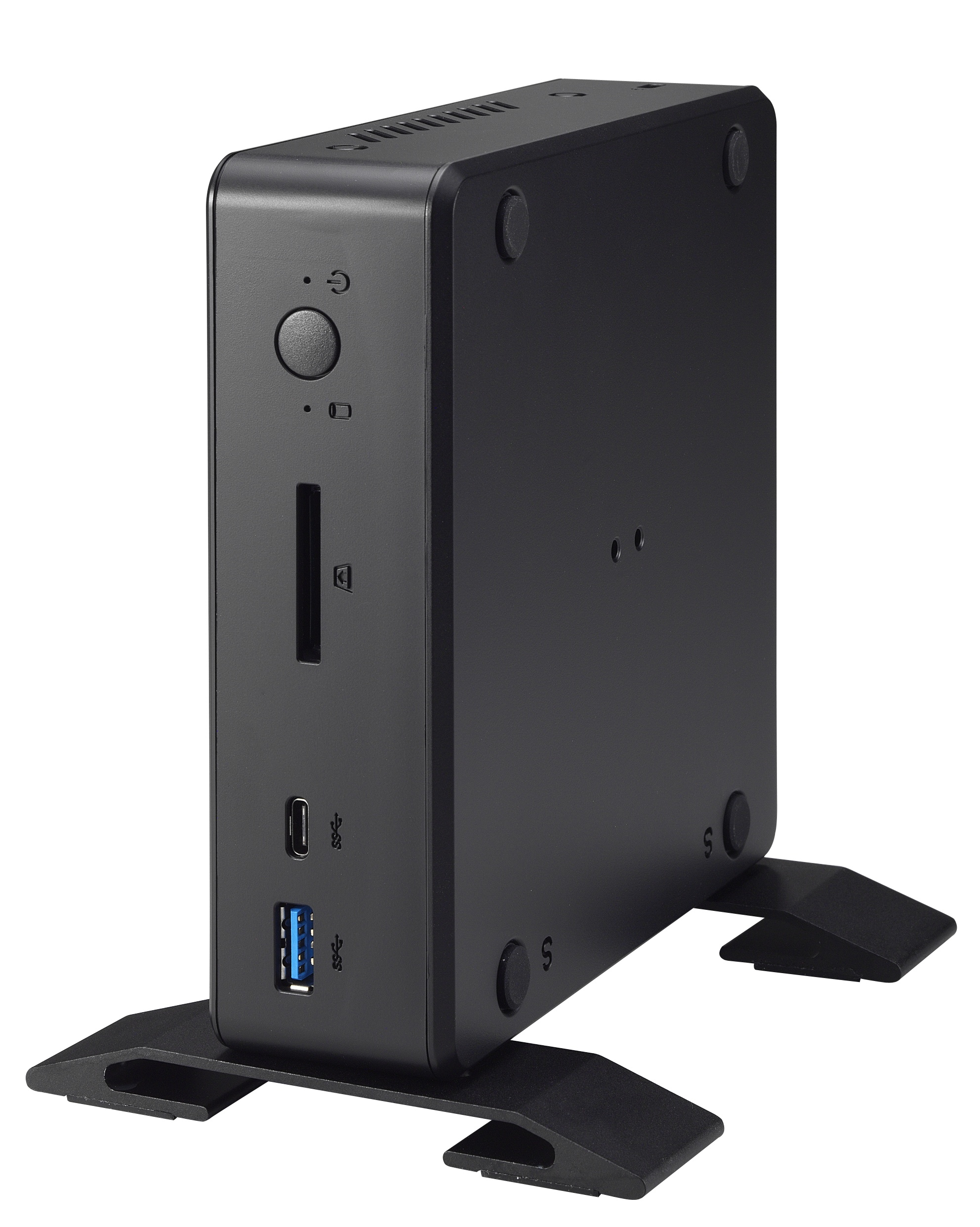

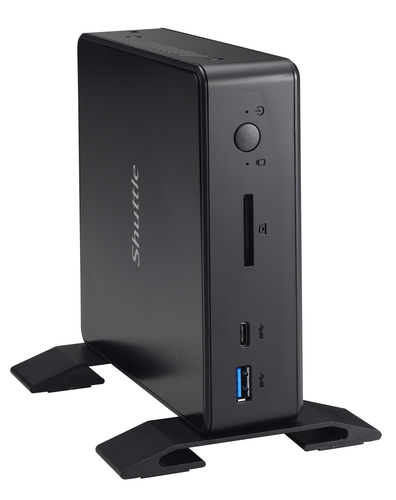

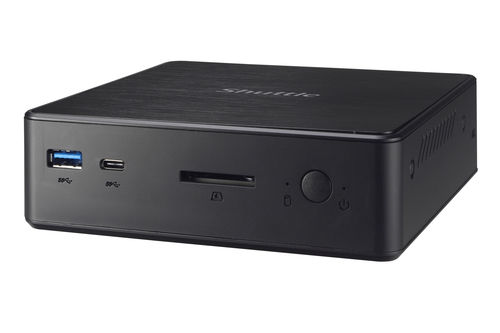

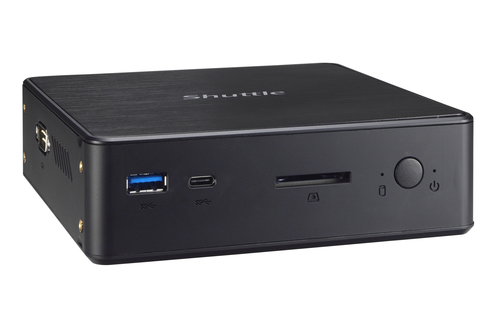

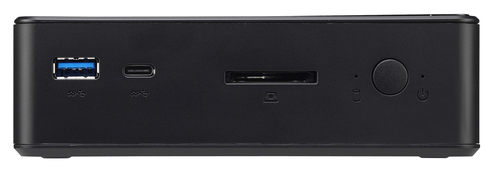

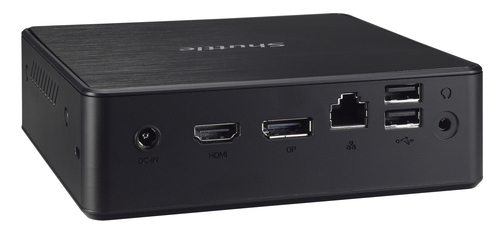

Shuttle Nano PC NC10U7 , Intel i7-8565U, 1x HDMI, 1x DP
Shuttle

Nano PC NC10U7 , Intel i7-8565U, 1x HDMI, 1x DP

1x 2.5" bay, 1x M.2, 1x LAN, 1x COM, Wifi, 24/7 permanent operation, incl. VESA & Stand

Model NC10U7EAN 887993002002

112 specifications
  • ProcessorIntel® Core™ i7
  • TypeMini PC barebone
  • Weight400 g
  • ColourBlack
  • Built-in processorYes
  • Memory slots typeSO-DIMM
See all specifications

Overview

Processor
Intel® Core™ i7
Type
Mini PC barebone
Weight
400 g
Colour
Black
Built-in processor
Yes
Memory slots type
SO-DIMM
Brand
Shuttle
Model
NC10U7
Part number
NC10U7
EAN / UPC
887993002002, 887993003009
Also known as
Shuttle Nano PC NC10U7 , Intel i7-8565U, 1x HDMI, 1x DP, 1x 2.5" bay, 1x M.2, 1x LAN, 1x COM, Wifi, 24/7 permanent operation, incl. VESA & Stand

Specifications

112 specifications in 19 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation8th gen Intel® Core™ i7
Processor modeli7-8565U
Processor cores4
Processor threads8
Processor boost frequency4.6 GHz
Processor frequency1.8 GHz
Processor lithography14 nm
L3 cache8 MB
Thermal Design Power (TDP)15 W
CPU configuration (max)1
Processor codenameWhiskey Lake

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2133,2400,2666 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA III
Number of storage drives supported1
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics 620

Performance

Motherboard chipsetIntel SoC
Processor socketBGA 1528
BIOS typeAMI
BIOS memory size8 Mbit
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
LAN controllerIntel® I211

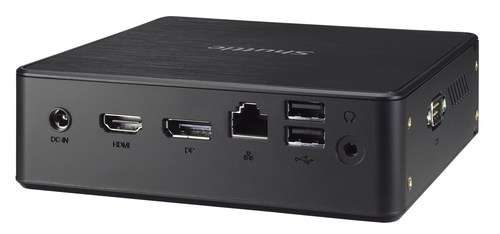

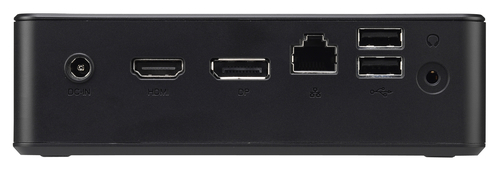

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Expansion slots

PCI Express slots version3.0
Number of M.2 (M) slots1
PCI Express configurations1x4, 2x2

Design

Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsHDD, Power
Housing materialPlastic
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone
SafetyCB, BSMI, ETL

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Flex Memory AccessYes
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Thermal Monitoring TechnologiesYes

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84713000

Certificates

CertificationCE, FCC, BSMI, RCM, RED, VCCI RoHS, ErP

Power

Power supply typeExternal AC adapter
AC adapter output current3.42 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width142 mm
Depth142 mm
Height42 mm
Weight400 g
Package weight1.2 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
Processor ARK ID149091
