Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356
1.8 GHz
Model NC03UPart no. NC03U8G128M2HOMEEAN 887993001135
106 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- Weight400 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Weight
- 400 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- NC03U
- Part numbers
- NC03U8G128M2HOME, NC03U8G128M2PRO, NC03U8G128PRO, NC03U8G1THOME, NC03U8G1TPRO, NC03U8G256M2PRO +4 more
- EAN / UPC
- 887993001135, 887993001272, 887993002279
- Also known as
- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 1.8 GHz
Specifications
106 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 3865U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 610 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| BIOS type | UEFI |
| Optical drive type | No |
| Audio system | HD |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | Power, Status |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL, CCC |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows 10 64-bit - Linux 64-bit |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, RCM, R&TTE, VCCI, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 142 mm |
| Depth | 142 mm |
| Height | 42 mm |
| Weight | 400 g |
| Package weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Compare Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356
Compare any products- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsShuttle XPC nano NC03U3 PC/workstation barebone Nettop Black i3-7100U Intel SoC BGA 1356Compare specs
- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsShuttle XPC nano NC03U7 PC/workstation barebone Nettop Black i7-7500U Intel SoC BGA 1356Compare specs

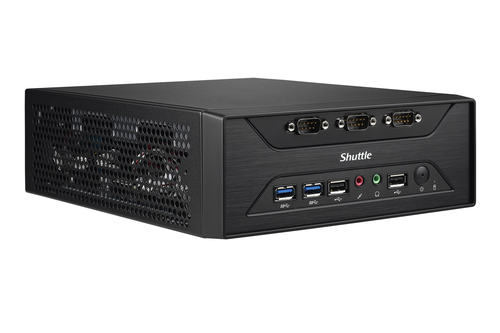

- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsShuttle XPС slim XC60J PC/workstation bareboneCompare specs
- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsShuttle XPС slim DS77U7 PC/workstation bareboneCompare specs

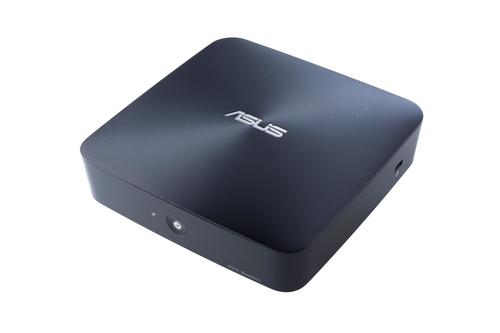

- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsASUS VivoMini UN65U-BM107M PC/workstation bareboneCompare specs
- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsASUS VivoMini UN65U-BM105M PC/workstation bareboneCompare specs
- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsASUS UN45-VM065M 0.73L sized PC Blue N3700 BGA 1170 1.6 GHzCompare specs

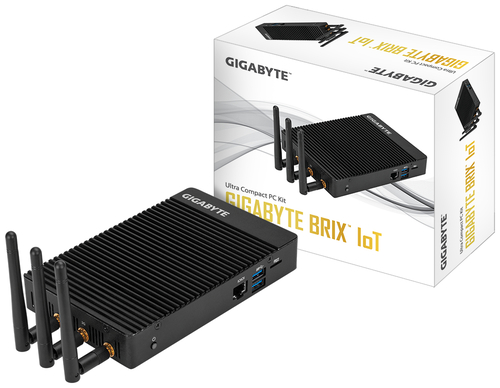

- Shuttle XPC nano NC03U PC/workstation barebone Nettop Black 3865U Intel SoC BGA 1356 vsGIGABYTE GB-EACE-3450 PC/workstation bareboneCompare specs
