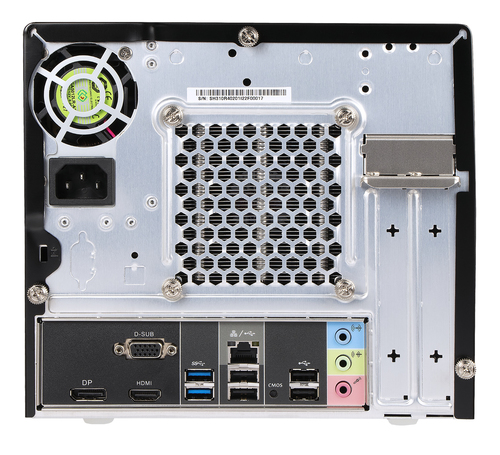

Shuttle Mini PC SH310R4

Shuttle Mini PC SH310R4

Model Mini PC SH310R4Part no. SH310R4EAN 887993001593

65 specifications
  • TypePC barebone
  • OSNo
  • Weight3.4 kg
  • ColourBlack
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
PC barebone
OS
No
Weight
3.4 kg
Colour
Black
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
Mini PC SH310R4
Part number
SH310R4
EAN / UPC
887993001593
Also known as
Shuttle XPC cube Mini PC SH310R4 Black Intel® H310 LGA 1151 (Socket H4)

Specifications

65 specifications in 14 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported3.5,M.2
Storage drive interfacePCI Express, Serial ATA III

Graphics

On-board graphics cardNo

Performance

Motherboard chipsetIntel® H310
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS typeUEFI AMI
ACPI version3.0
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel I219LM

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Internal USB 2.0 ports quantity1
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.2
Microphone inYes
Headphone outputs2
Ethernet LAN (RJ-45) ports1

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
Number of M.2 (M) slots1

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Housing materialAcrylic, Aluminium
Product typePC barebone
Number of 3.5" bays2
Number of 5.25" bays1

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Operating system installedNo

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply300 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width215 mm
Depth329 mm
Height190 mm
Weight3.4 kg
Package weight4.5 kg

Packaging content

Power cord includedYes
Quick start guideYes
Drivers includedYes
