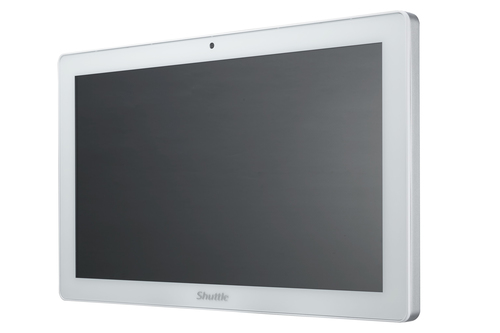

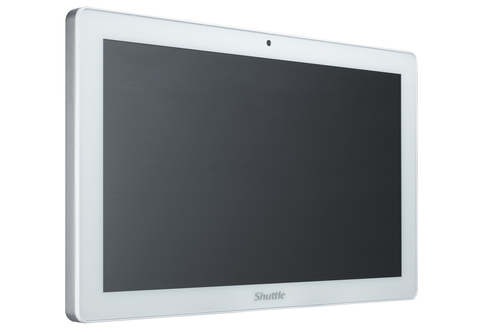

Shuttle All-In-One Panel Medical PC Barebone M21WL01-i5
Shuttle

All-In-One Panel Medical PC Barebone M21WL01-i5

21.5" Multi-Touch-Screen, Intel Intel Core i5-8365UE , 2xLAN, IP65, fanless, 24/7 permanent operation

Model M21WL01-i5Part no. M21WL01-I5EAN 887993005522

87 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • GraphicsNot available
  • SpeedWi-Fi 5 (802.11ac)
  • TypeAll-in-One PC barebone
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Graphics
Not available
Speed
Wi-Fi 5 (802.11ac)
Type
All-in-One PC barebone
Brand
Shuttle
Model
M21WL01-i5
Part number
M21WL01-I5
EAN / UPC
887993005522
Also known as
Shuttle All-In-One Panel Medical PC Barebone M21WL01-i5, 21.5" Multi-Touch-Screen, Intel Intel Core i5-8365UE , 2xLAN, IP65, fanless, 24/7 permanent operation

Specifications

87 specifications in 16 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation8th gen Intel® Core™ i5
Processor modeli5-8365UE
Processor cores4
Processor threads8
Processor boost frequency4.1 GHz
Processor frequency1.6 GHz
Processor lithography14 nm
Thermal Design Power (TDP)15 W
CPU configuration (max)1

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesSSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics 620
Discrete graphics card modelNot available

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
BIOS typeUEFI AMI
Built-in cameraYes
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
Aspect ratio16:9
Display brightness300 cd/m²
Panel typeTFT

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
LAN controllerIntel® I211, Intel® I219-LM

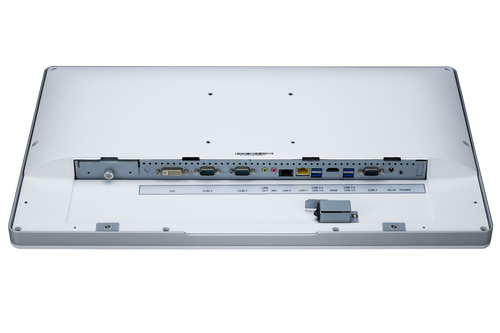

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version1.4b
VGA (D-Sub) ports quantity0
DVI portYes
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity3
DC-in jackYes

Design

Chassis typeAll-in-One
Product colourWhite
Cooling typePassive
On/off switchYes
LED indicatorsYes
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeAll-in-One PC barebone

Technical details

Compliance certificatesCB, CE, Federal Communications Commission (FCC), cTUVus

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84714100

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage90 - 264 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width543 mm
Depth49.9 mm
Height334 mm
Weight7.6 kg

Packaging content

Power cord includedYes
AC adapter includedYes
