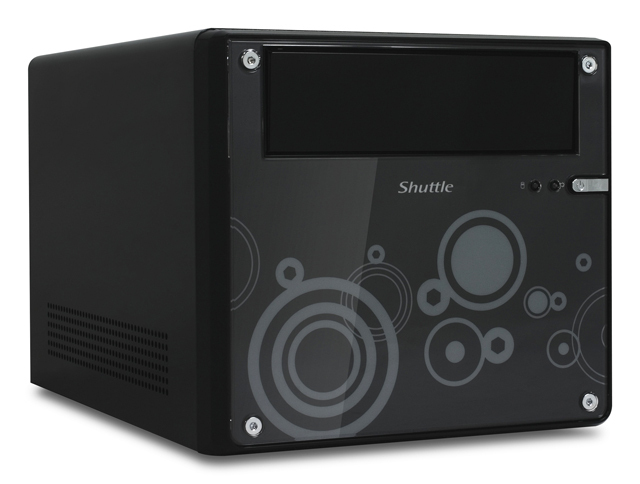

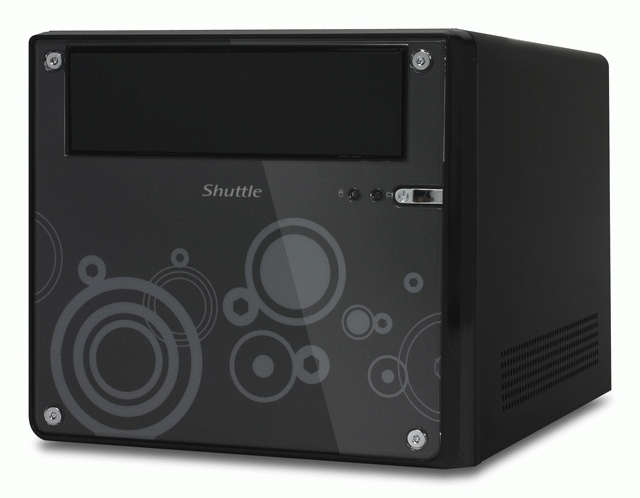

K48 PC/workstation barebone Mini-Tower Black Intel® 945GC Express LGA 775 (Socket T)
Model K48
32 specifications
- ProcessorIntel
- Weight4 kg
- ColourBlack
- Memory slots typeDIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
Overview
- Processor
- Intel
- Weight
- 4 kg
- Colour
- Black
- Memory slots type
- DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- K48
- Part numbers
- K48, XPC-K48, SK48001
- Also known as
- Shuttle K48 PC/workstation barebone Mini-Tower Black Intel® 945GC Express LGA 775 (Socket T)
Specifications
32 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 224 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC 662 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

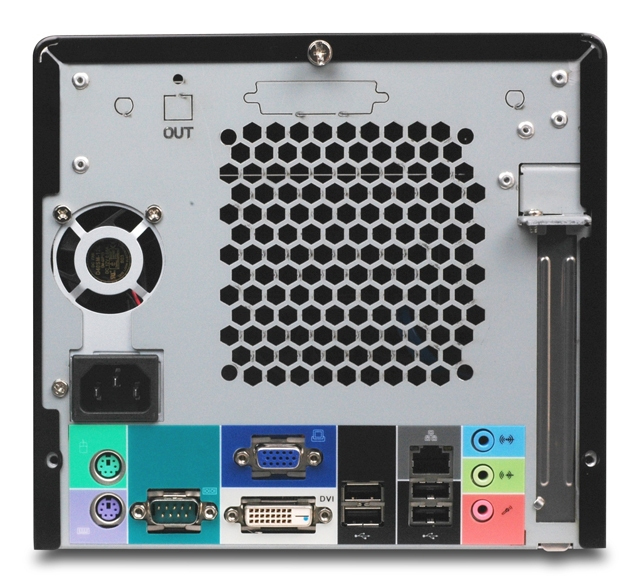

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Housing material | Aluminium |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, UL, TÜV, CB |
Power
| Specification | Value |
|---|---|
| Power supply | 100 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 295 x 185 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 2 |
| Power requirements | 100-240V AC, 47-63 Hz |
| Drive bays | 2x 3.5", 1x 5.25" |
