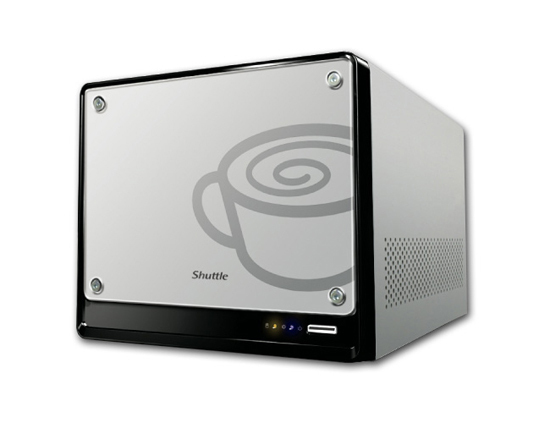

K45S PC/workstation barebone Mini-Tower Silver Intel® 945GC Express LGA 775 (Socket T)
Model K45SEAN 811686002598
30 specifications
- Weight4.7 kg
- ColourSilver
- Memory slots typeDIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
- Networking featuresGigabit Ethernet
Overview
- Weight
- 4.7 kg
- Colour
- Silver
- Memory slots type
- DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Networking features
- Gigabit Ethernet
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- K45S
- Part numbers
- K45S, XPC-K45S
- EAN / UPC
- 811686002598
- Also known as
- Shuttle K45S PC/workstation barebone Mini-Tower Silver Intel® 945GC Express LGA 775 (Socket T)
Specifications
30 specifications in 10 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC 662 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |

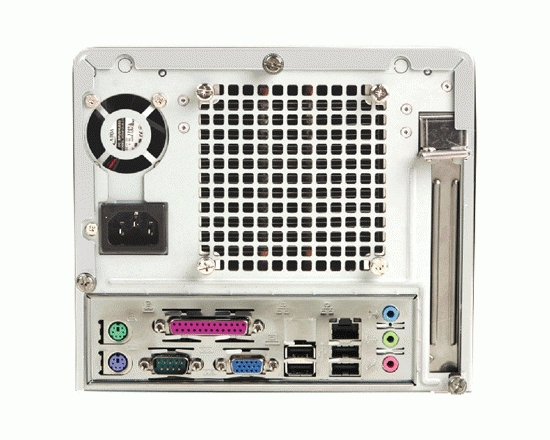

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Silver |
| Housing material | Aluminium |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, UL, TÜV, CB |
Power
| Specification | Value |
|---|---|
| Power supply | 100 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.7 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 19 x 28 x 17 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 2 |
| Power requirements | 100-240V AC, 47-63 Hz |
| Drive bays | 2 x 3.5“ |
| Expansion slots | 1x PCI 32 bit |
