Shuttle Industry-grade Panel PC P15AL01-i5
Shuttle

Industry-grade Panel PC P15AL01-i5

Model Industry-grade Panel PC P15AL01-i5Part no. P15AL01-I5 BLUEEAN 887993006307

89 specifications
  • Display39.6 cm (15.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • SpeedWi-Fi 5 (802.11ac)
  • TypeAll-in-One PC barebone
  • Weight4.6 kg
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Speed
Wi-Fi 5 (802.11ac)
Type
All-in-One PC barebone
Weight
4.6 kg
Brand
Shuttle
Model
Industry-grade Panel PC P15AL01-i5
Part number
P15AL01-I5 BLUE
EAN / UPC
887993006307, 887993007885
Also known as
Shuttle All-In-One Panel PC Barebone P15AL01-i5 blue, 15.6" Multi-Touch-Screen, Intel Core i5-1235U, 2xLAN, 1x COM, IP65, fanless, 24/7 permanent operation

Specifications

89 specifications in 16 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation12th gen Intel® Core™ i5
Processor modeli5-1235U
Processor cores10
Processor threads12
Processor boost frequency4.4 GHz
Performance cores2
Efficient cores8
Performance-core Max Turbo Frequency4.4 GHz
Efficient-core Max Turbo Frequency3.3 GHz
Processor cache12 MB
Processor cache typeSmart Cache

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.1 V
Supported memory clock speeds4800 MHz
Supported memory typesDDR5-SDRAM

Storage

Supported storage drive typesSSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
BIOS typeUEFI
Built-in cameraYes
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC888S

Display

Display diagonal39.6 cm (15.6")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
Aspect ratio16:9
Display brightness350 cd/m²
Panel typeTFT-LCD

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power4 W

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
Bluetooth version4.2
LAN controllerIntel I226-LM, Intel I226-V

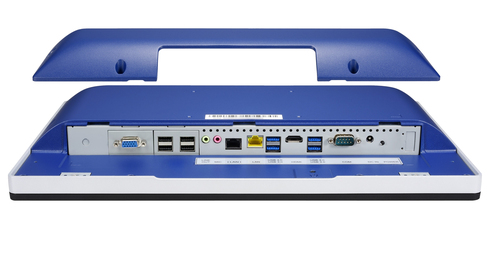

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity1
DC-in jackYes

Design

Chassis typeAll-in-One
Product colourBlack, Blue
Cooling typePassive
On/off switchYes
Housing materialAluminium, Plastic
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeAll-in-One PC barebone

Technical details

Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), cTUVus

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84714900

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width394.3 mm
Depth48.9 mm
Height256.2 mm
Weight4.6 kg
