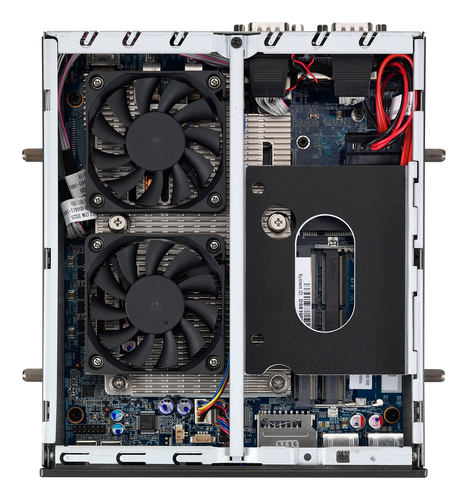

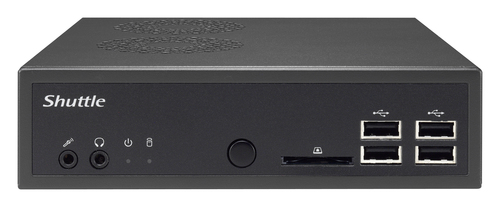

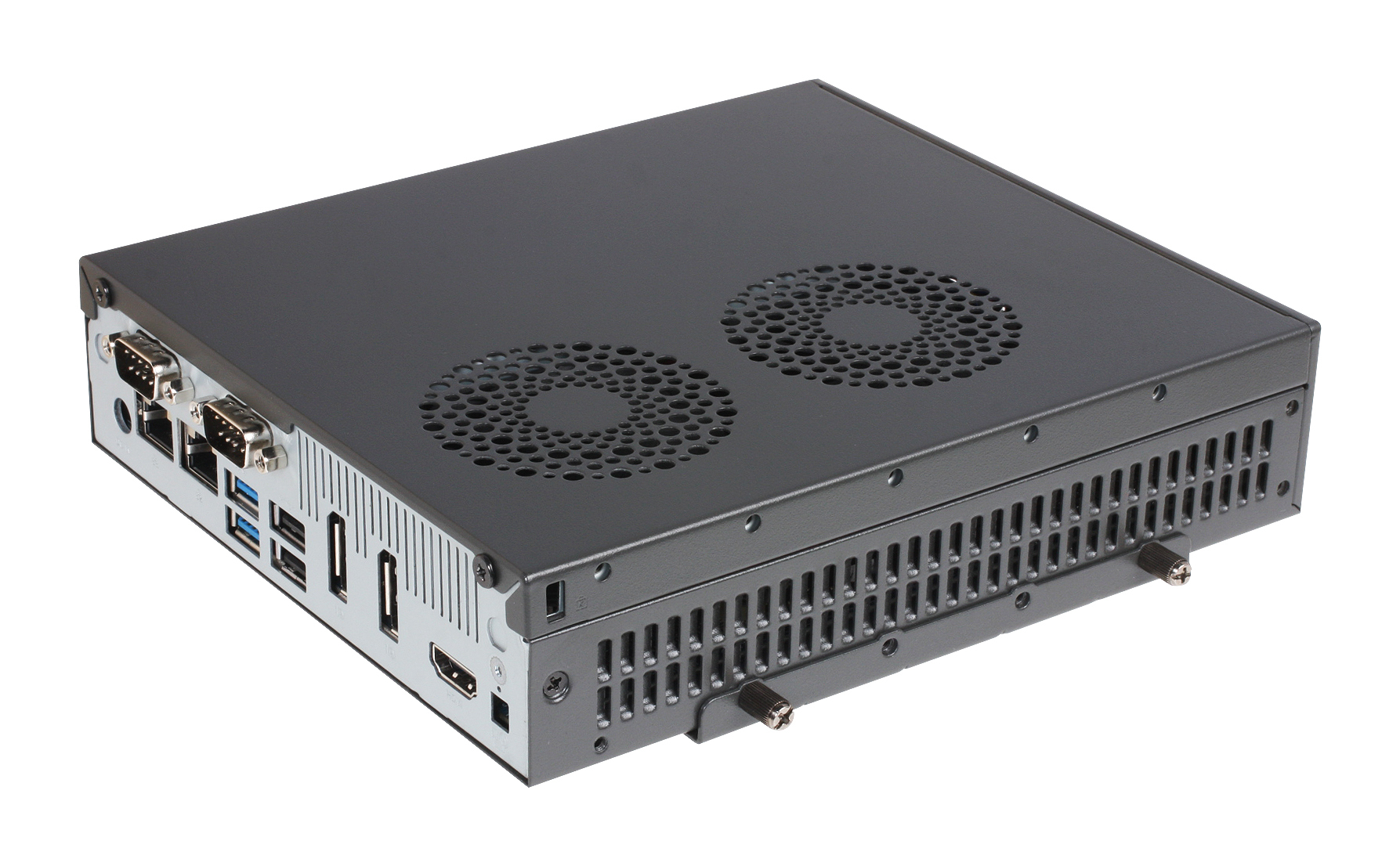

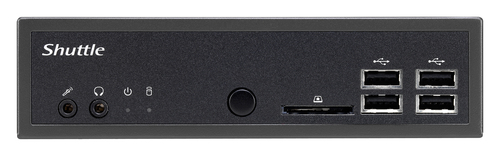

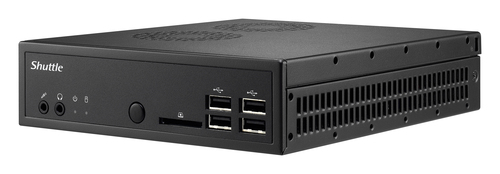

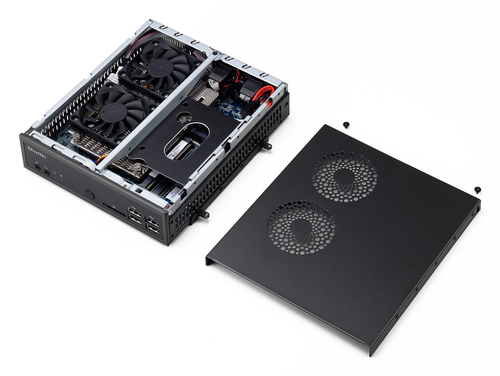

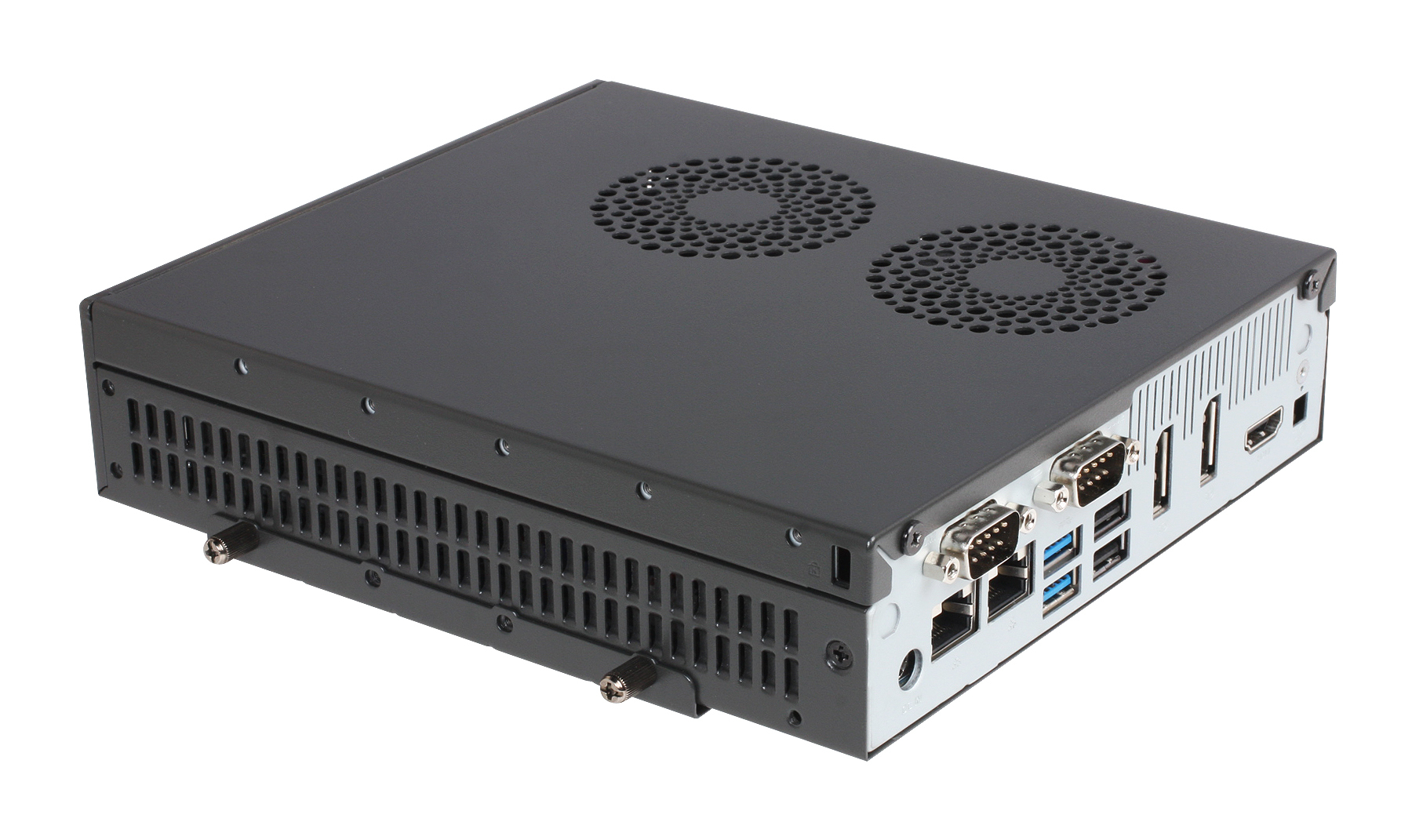

Shuttle DS81L PC/workstation barebone
1.3L sized PC Black Intel® H81 LGA 1150 (Socket H3)
Model DS81LEAN 887993000015
34 specifications
- ProcessorIntel
- TypeMini PC barebone
- OSNo
- ColourBlack
- Memory slots typeSO-DIMM
- Compatible memory cardsSD
Overview
- Processor
- Intel
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Memory slots type
- SO-DIMM
- Compatible memory cards
- SD
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DS81L
- Part number
- DS81L
- EAN / UPC
- 887993000015, 887993000176, 5054629092781
- Also known as
- Shuttle DS81L PC/workstation barebone 1.3L sized PC Black Intel® H81 LGA 1150 (Socket H3)
Specifications
34 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H81 |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Pentium® |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |

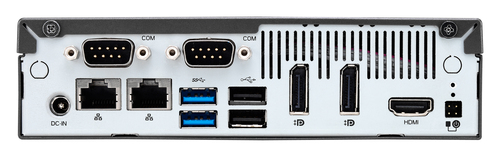

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | 1.3L sized PC |
| Product colour | Black |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 84 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
What people say
Reviews & ratings
Shuttle DS81L PC/workstation barebone
No reviews yet
Be the first to tell others how Shuttle DS81L PC/workstation barebone works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Shuttle DS81L PC/workstation barebone
All pc/workstation barebones comparisons- Shuttle DS81L PC/workstation barebone vsShuttle DS57U PC/workstation barebone Nettop Black 3205U BGA 1168Compare specs
- Shuttle DS81L PC/workstation barebone vsShuttle DS407T PC/workstation barebone Nettop Black 1007U Intel® NM70 Express BGA 1023Compare specs
- Shuttle DS81L PC/workstation barebone vsShuttle SH97R6 PC/workstation barebone Black Intel® H97 LGA 1150 (Socket H3)Compare specs
- Shuttle DS81L PC/workstation barebone vsShuttle DS87 PC/workstation barebone Black Intel® H87 LGA 1150 (Socket H3)Compare specs

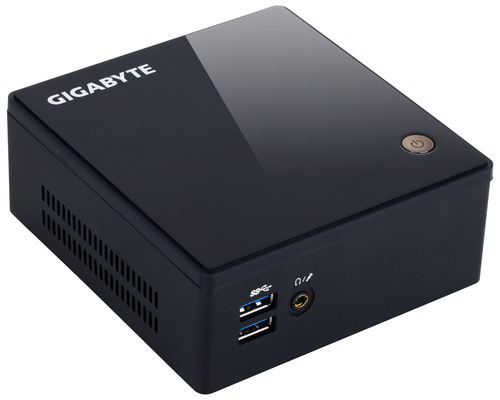

- Shuttle DS81L PC/workstation barebone vsGIGABYTE GB-BXI5-5200 PC/workstation barebone UCFF Black i5-5200U BGA 1168Compare specs
