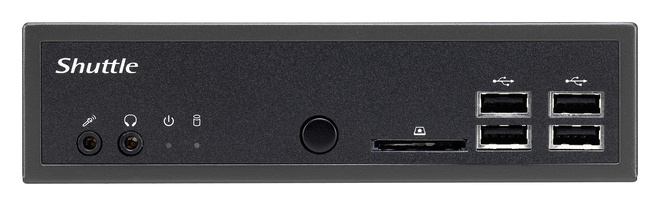

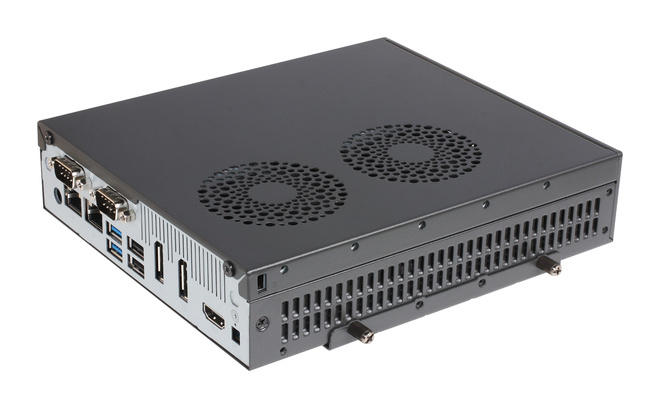

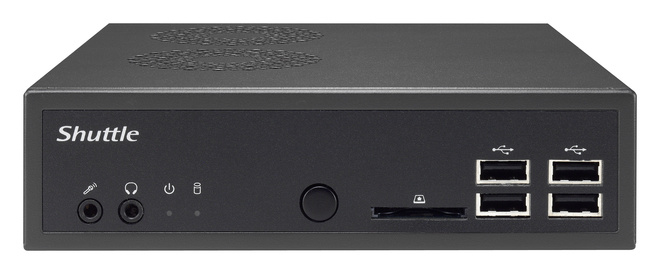

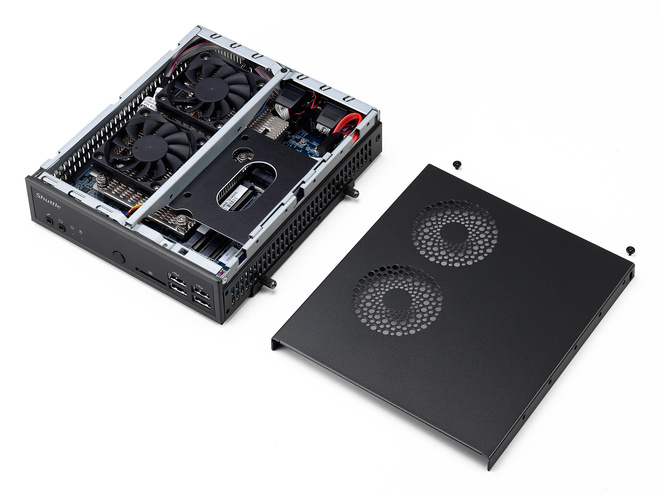

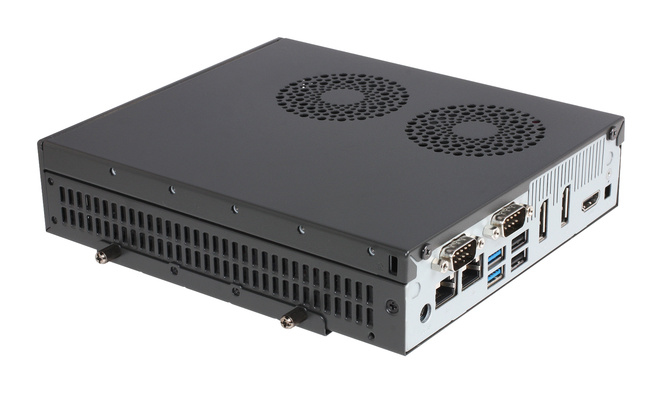

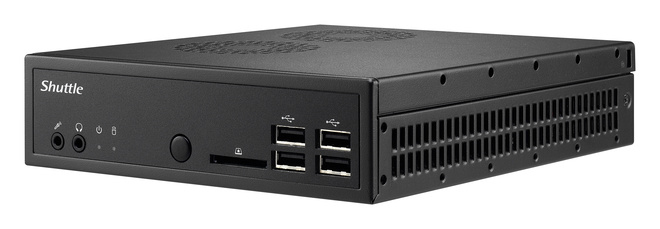

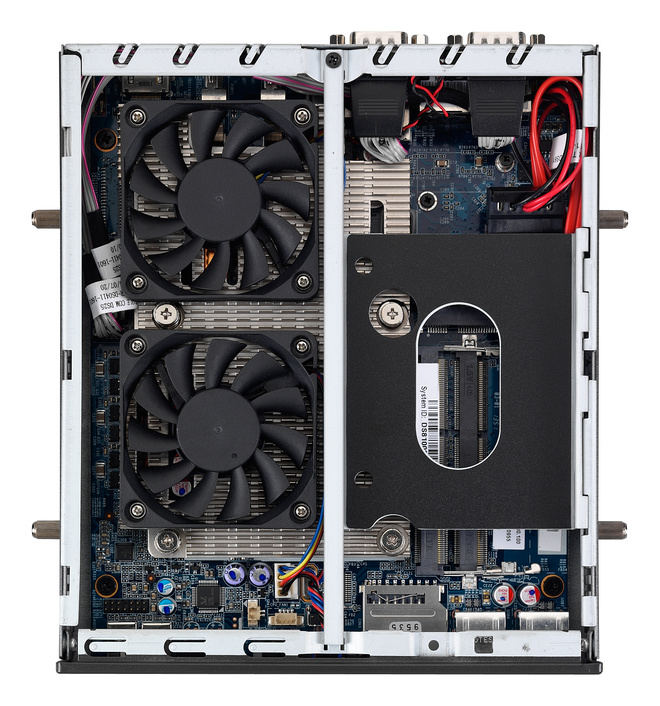

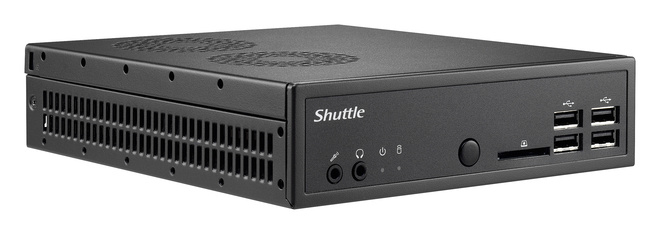

Shuttle DS81 PC/workstation barebone Net-top Black Intel® H81 LGA 1150 (Socket H3)
Model DS81EAN 8116860065348
51 specifications
- ProcessorIntel
- TypeMini PC barebone
- OSNo
- Weight1.3 kg
- ColourBlack
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1.3 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DS81
- Part number
- DS81
- EAN / UPC
- 8116860065348, 163121441258, 803982990938, 811686006534 +2 more
- Also known as
- Shuttle DS81 PC/workstation barebone Net-top Black Intel® H81 LGA 1150 (Socket H3)
Specifications
51 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor family | Intel |
| Processor lithography | 22 nm |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H81 |
| Processor socket | LGA 1150 (Socket H3) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Pentium® |
| Audio system | Realtek ALC 662-VC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek 8111G |
| Networking features | Gigabit Ethernet |

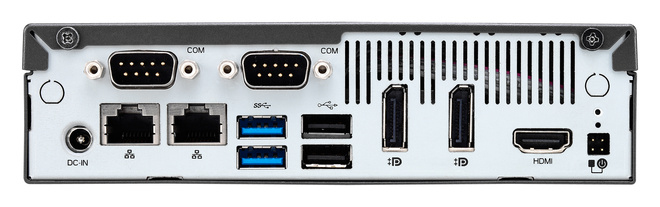

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Net-top |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Misrosoft Windows 8, Windows 8.1, Windows 7, Linux |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, CB, BSMI, ETL |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
Other features
| Specification | Value |
|---|---|
| DC input voltage | 19 V |
| Power LED | Yes |
| Power requirements | AC 100-240@50/60Hz |
