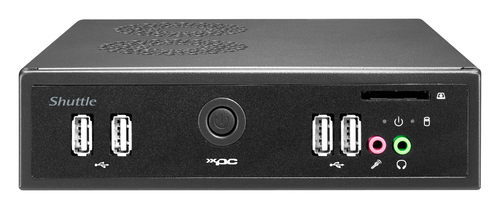

Shuttle DS61 PC/workstation barebone Black Intel® H61 Express LGA 1155 (Socket H2)
Model DS61EAN 8116860065898
57 specifications
- ProcessorIntel
- TypeMini PC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DS61
- Part number
- DS61
- EAN / UPC
- 8116860065898, 607266103256, 811686004202, 811686006053 +3 more
- Also known as
- Shuttle DS61 PC/workstation barebone Black Intel® H61 Express LGA 1155 (Socket H2)
Specifications
57 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA II |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Maximum graphics card memory | 1692 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H61 Express |
| Processor socket | LGA 1155 (Socket H2) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| BIOS memory size | 64 Mbit |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC 662 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111E |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| S/PDIF out port | Yes |
| Serial ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 8, Windows 7, Windows Vista, Windows XP |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, CB, BSMI, ETL |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
| Heat sink included | Yes |
| Number of SATA connectors | 2 |
| Number of products included | 1 pc(s) |
| Power LED | Yes |
| Power requirements | 100 - 240 |
