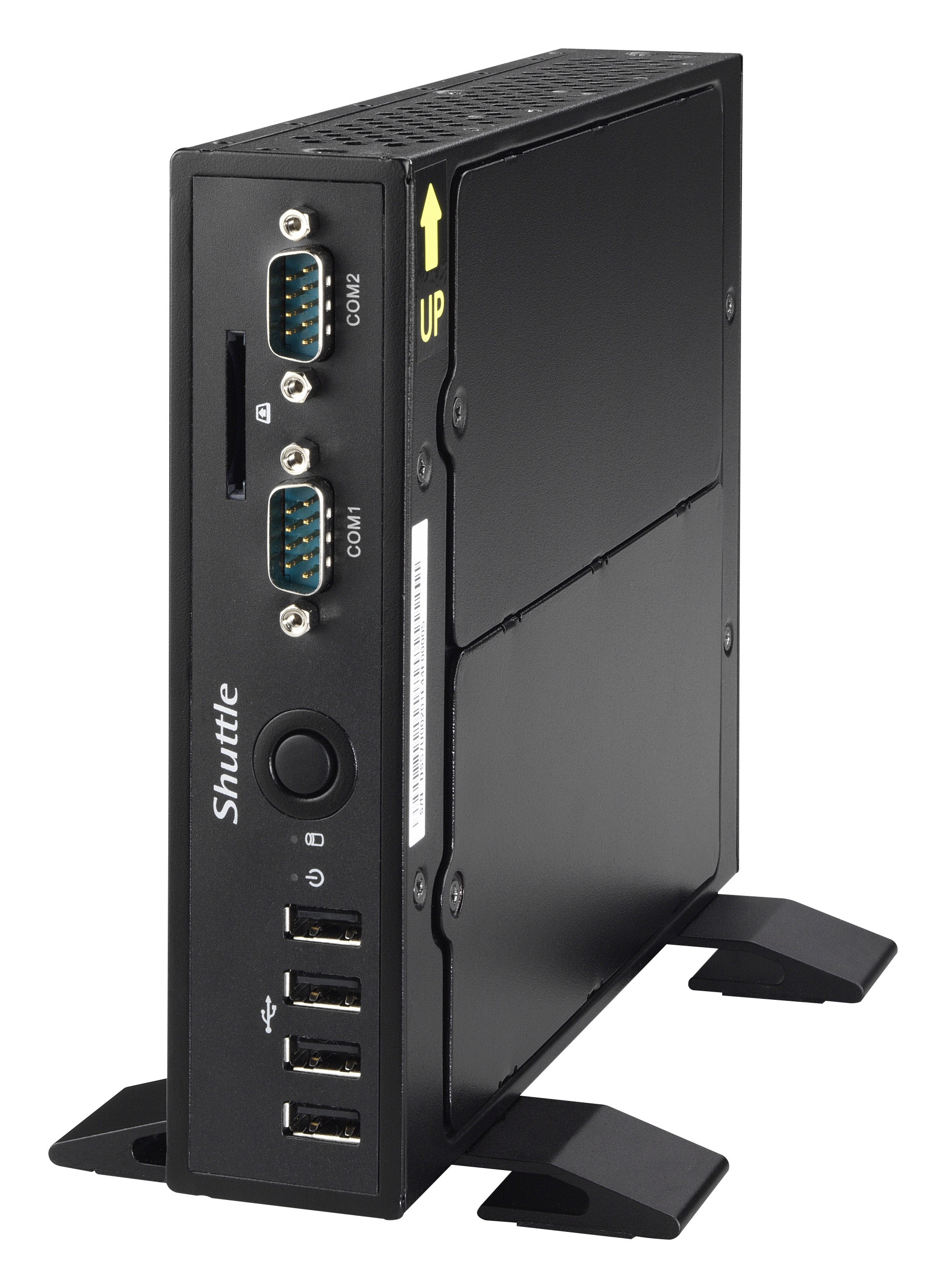

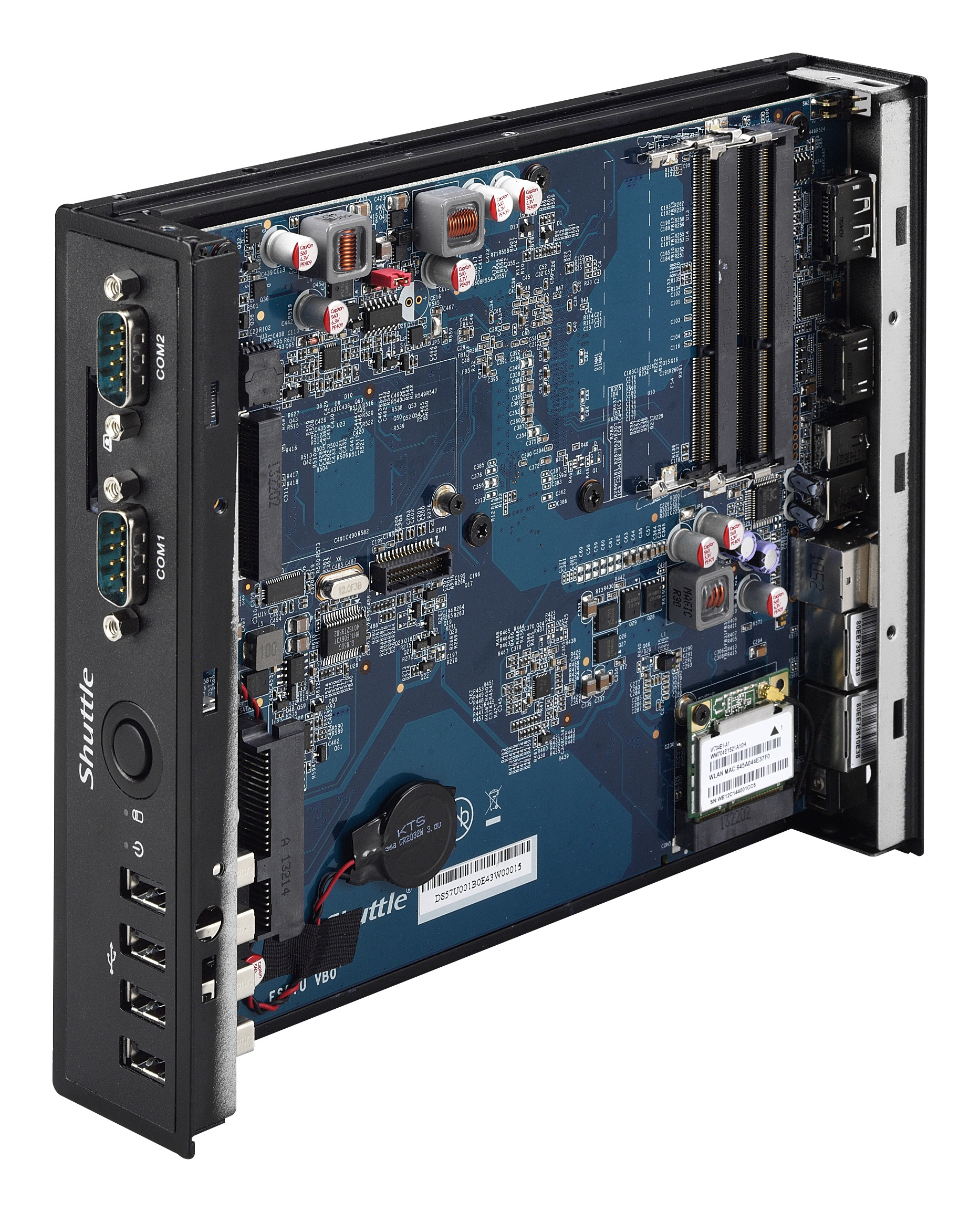

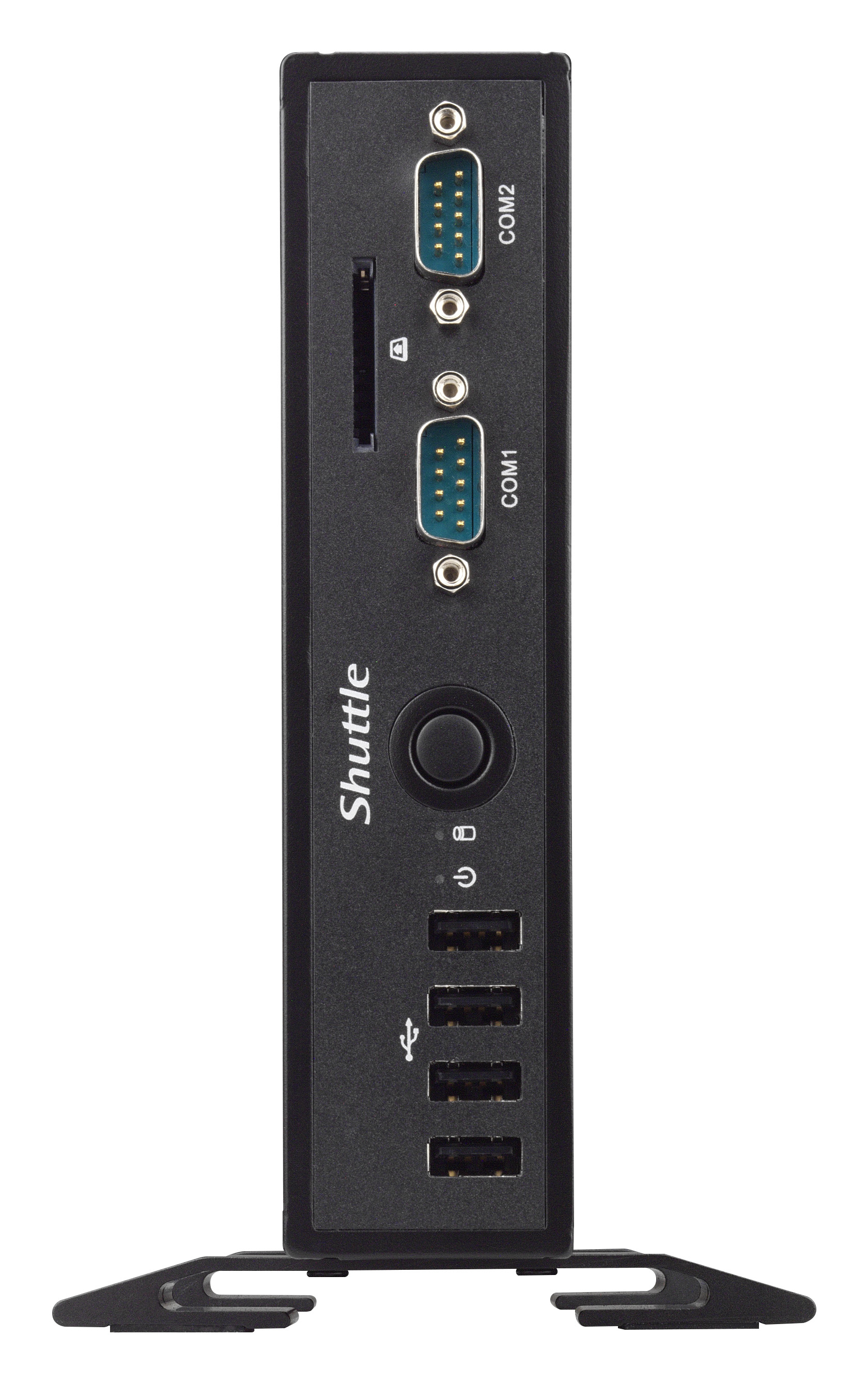

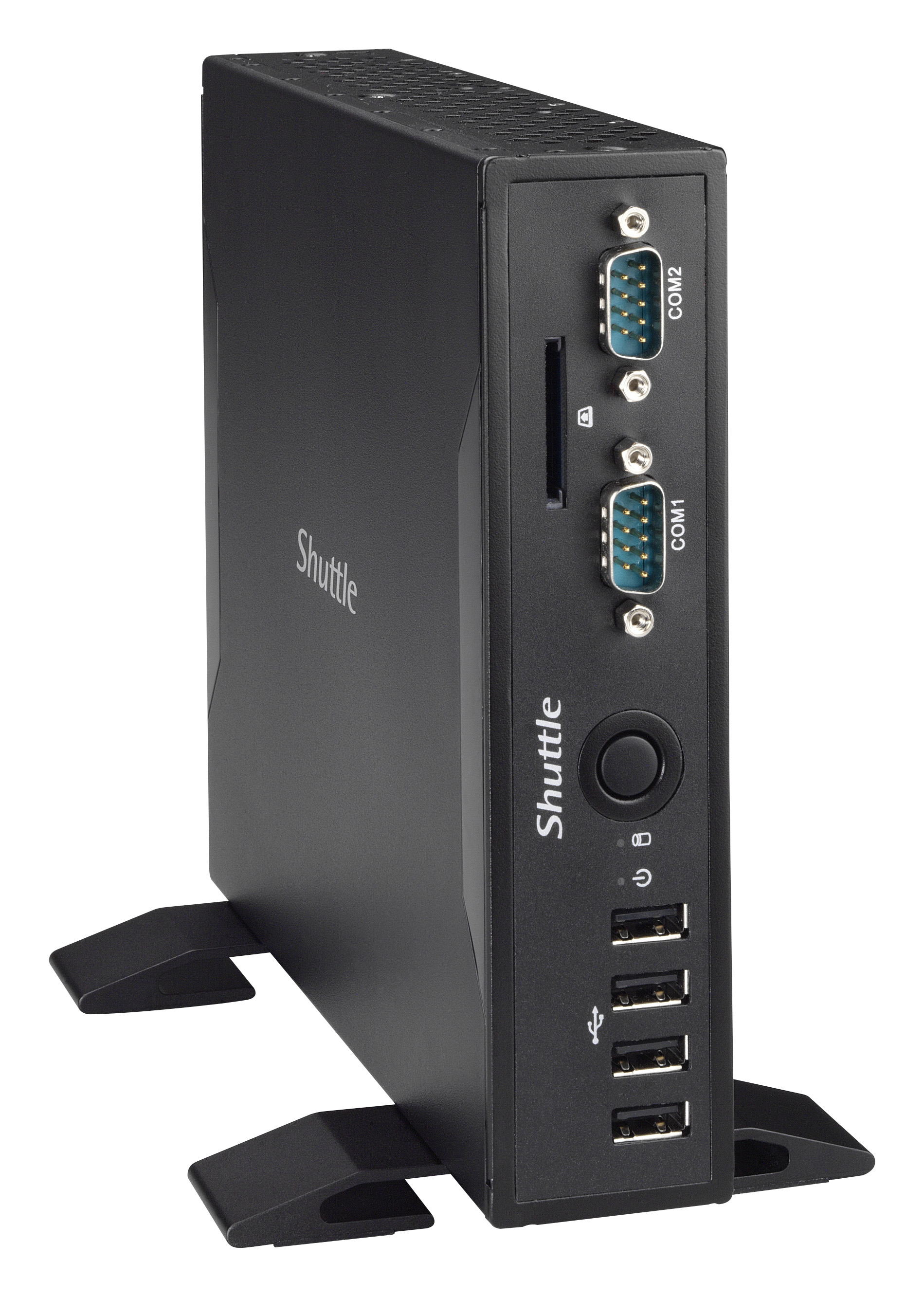

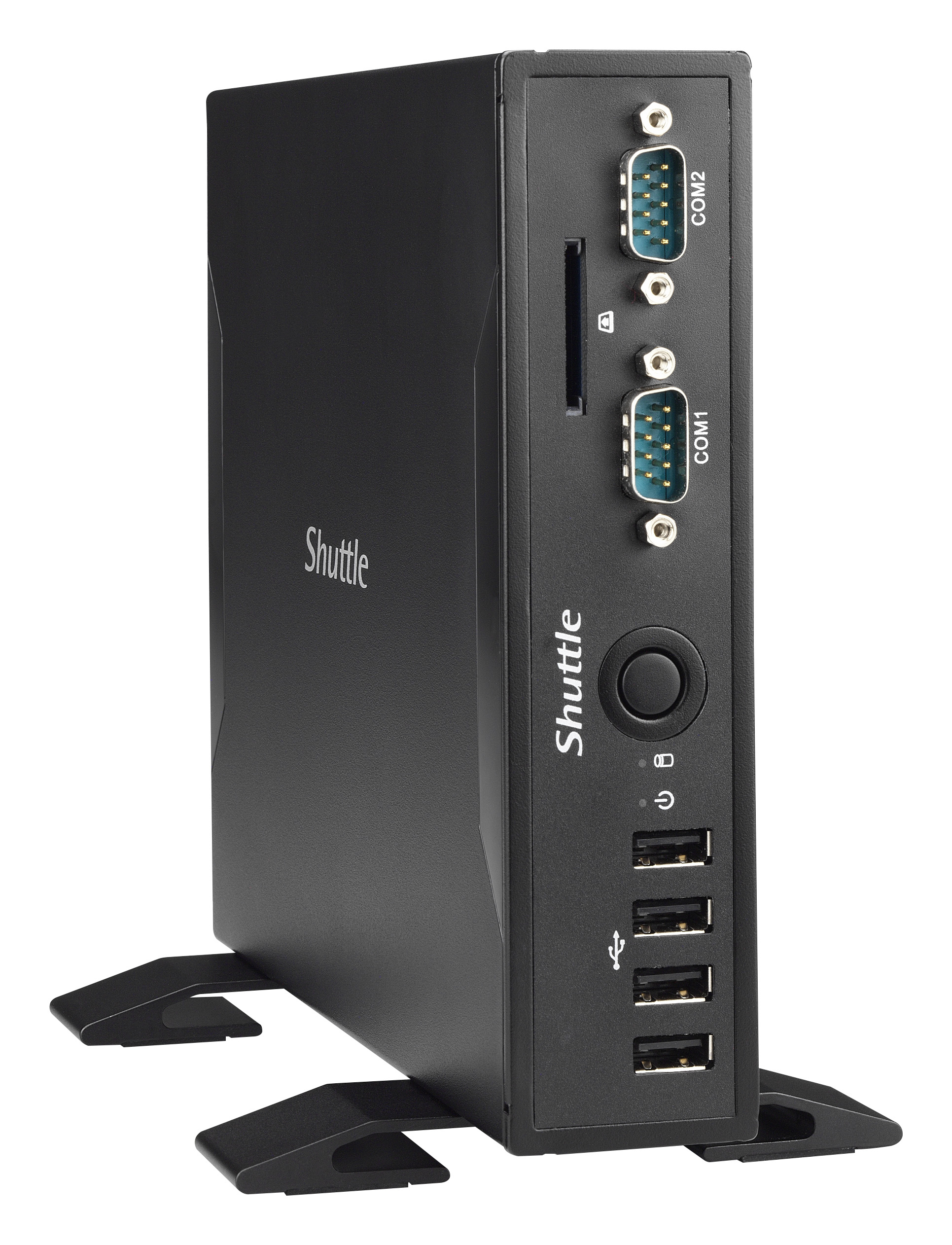

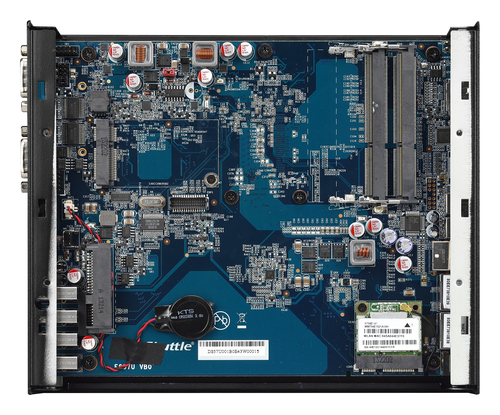

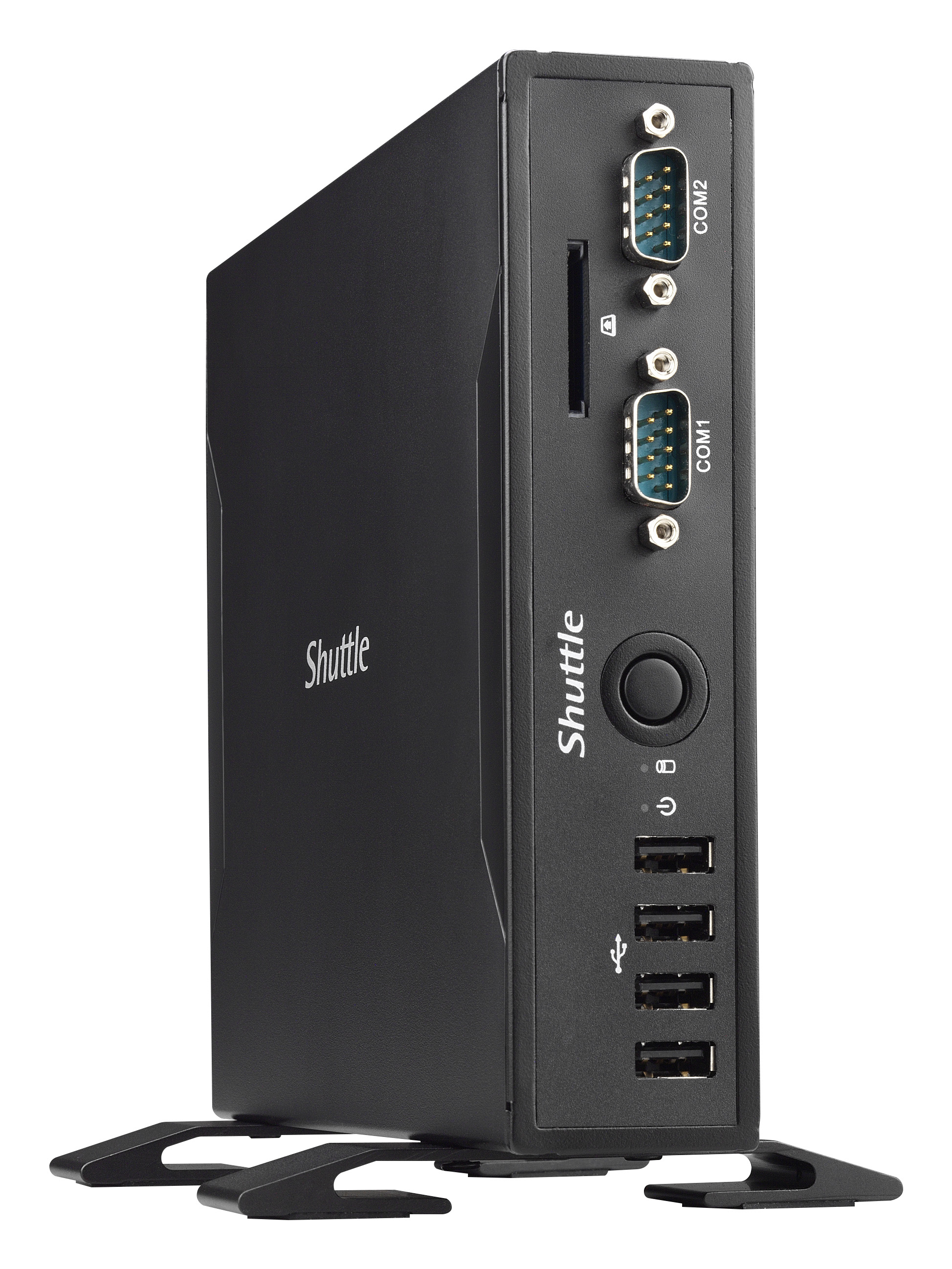

Shuttle DS57U5 PC/workstation barebone Nettop Black i5-5200U BGA 1168

2.2 GHz

Model DS57U5EAN 887993000077

105 specifications

ProcessorIntel® Core™ i5
TypeMini PC barebone
OSNo
Weight1.43 kg
ColourBlack
Built-in processorYes

See all specifications

Overview

Processor: Intel® Core™ i5
Type: Mini PC barebone
OS: No
Weight: 1.43 kg
Colour: Black
Built-in processor: Yes

Brand: Shuttle
Category: PC/Workstation Barebones
Model: DS57U5
Part number: DS57U5
EAN / UPC: 887993000077, 887993000282
Also known as: Shuttle DS57U5 PC/workstation barebone Nettop Black i5-5200U BGA 1168 2.2 GHz

Specifications

105 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	5th gen Intel® Core™ i5
Processor model	i5-5200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	2.2 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Processor codename	Broadwell
Processor series	Intel® Core™ i5-5200 Mobile Series

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	16 GB
Memory channels	Dual-channel
Supported memory clock speeds	1333,1600 MHz
Supported memory types	DDR3L-SDRAM
ECC	No

Storage

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	1
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics 5500

Performance

Specification	Value
Processor socket	BGA 1168
Number of processors supported	1
BIOS type	UEFI AMI
Audio system	HD

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes

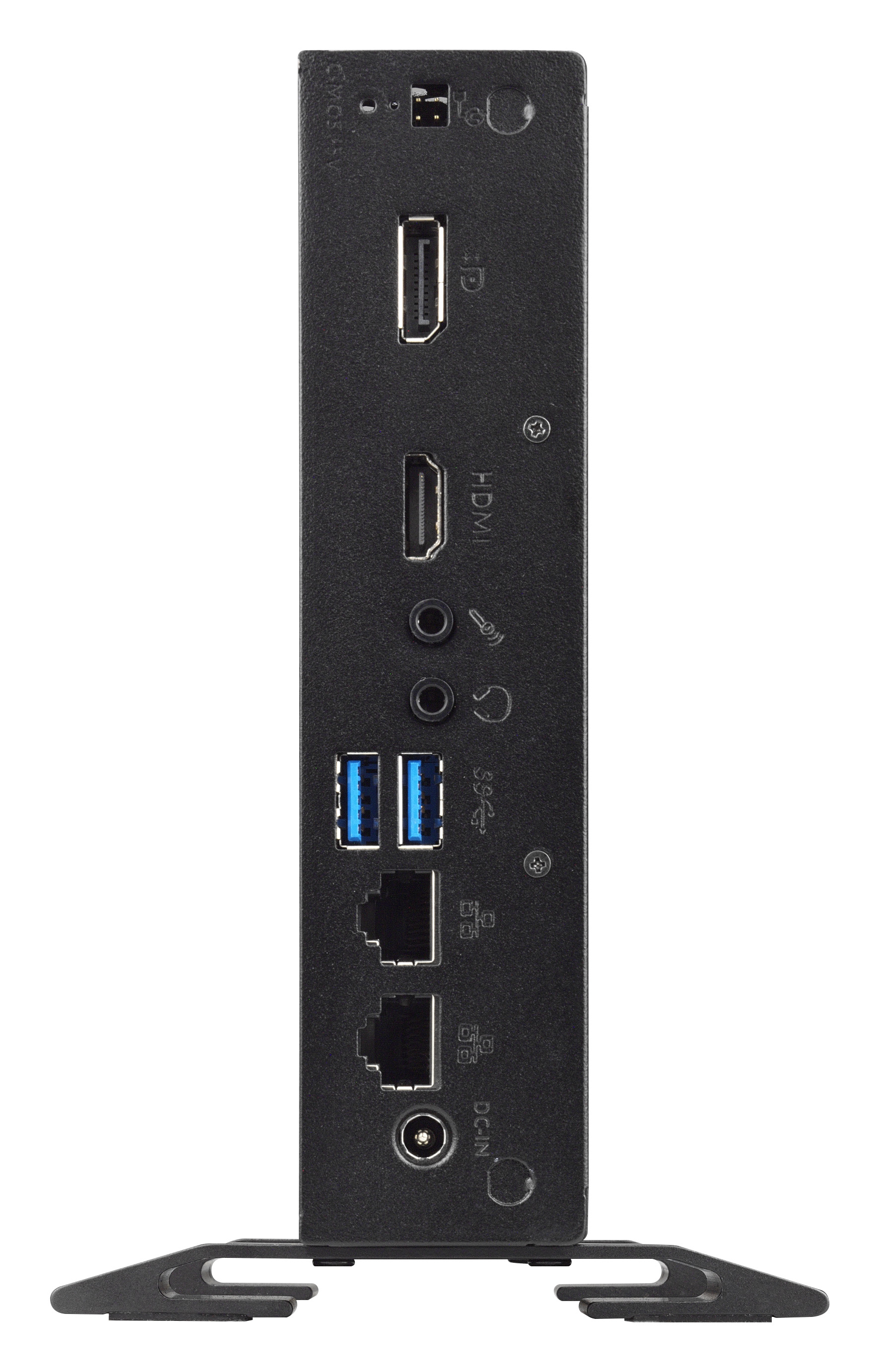

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	1.4a
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	1
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	2.0
PCI Express configurations	4x1, 2x4

Design

Specification	Value
Chassis type	Nettop
Product colour	Black
Cooling type	Passive
LED indicators	HDD, Power
Housing material	Steel
Cable lock slot	Yes
Cable lock slot type	Kensington
Panel mounting interface	100 x 75 mm
Product type	Mini PC barebone
Safety	CB, BSMI, ETL, CCC

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Compatible operating systems	Windows 8, Windows 7, Linux
Operating system installed	No

Certificates

Specification	Value
Certification	FCC, CE, BSMI, C-Tick

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output current	3.42 A
AC adapter output voltage	19 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	65 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Width	165 mm
Depth	39.5 mm
Height	200 mm
Weight	1.43 kg
Package weight	2.13 kg

Packaging content

Specification	Value
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
