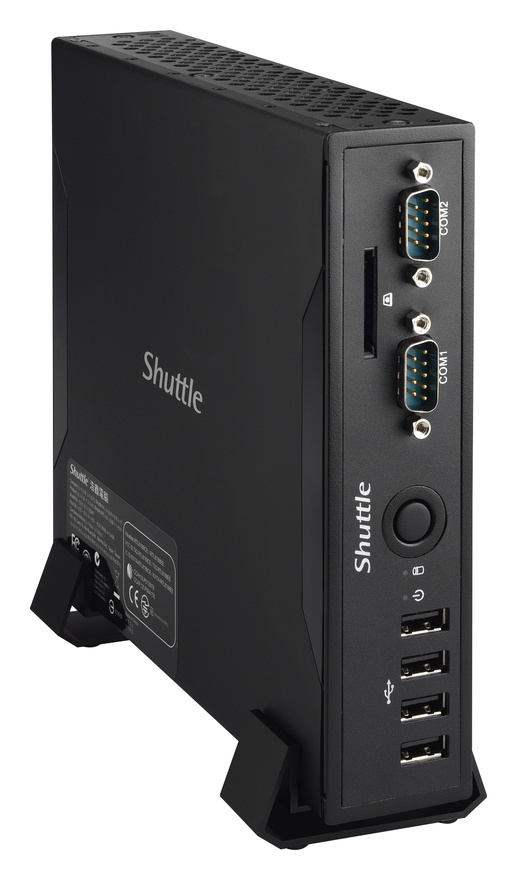

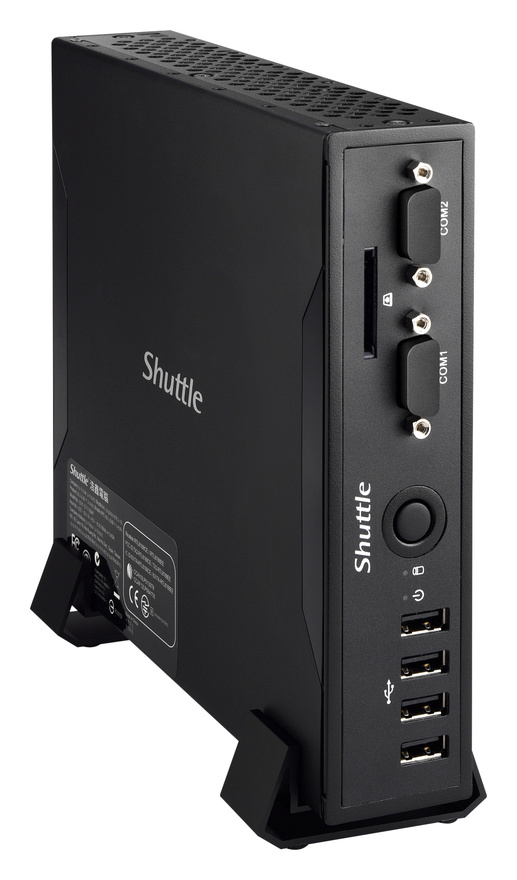

Shuttle DS437 PC/workstation barebone USFF Black 1037U BGA 1023
1.8 GHz
Model DS437EAN 8116860064594
91 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- Weight1.43 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1.43 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DS437
- Part number
- DS437
- EAN / UPC
- 8116860064594, 811686006459, 811686006664, 887993000596 +2 more
- Also known as
- Shuttle DS437 PC/workstation barebone USFF Black 1037U BGA 1023 1.8 GHz
Specifications
91 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 1037U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 22 nm |
| Thermal Design Power (TDP) | 17 W |
| CPU configuration (max) | 1 |
| Processor codename | Ivy Bridge |
| Processor series | Intel Celeron 1000 series for Mobile |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1023 |
| Number of processors supported | 1 |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC662 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek 8111G |

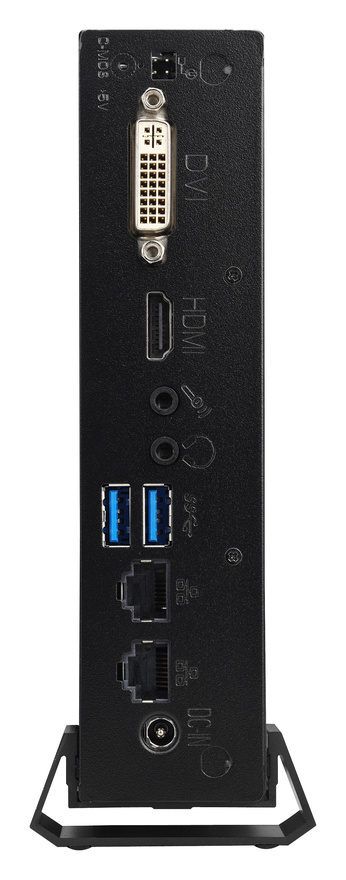

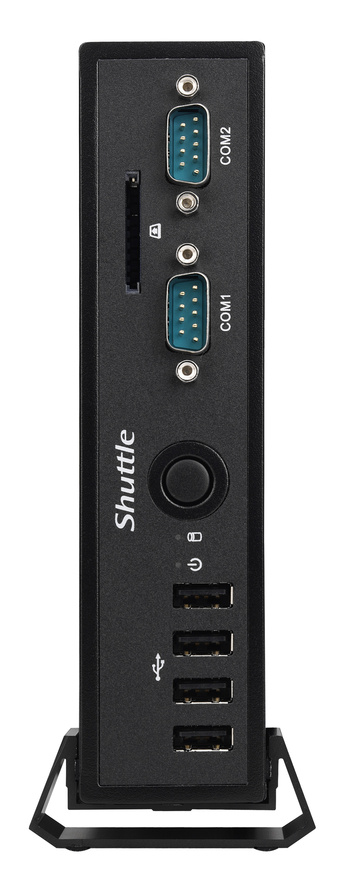

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| Mini PCI Express slots | 2 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD |

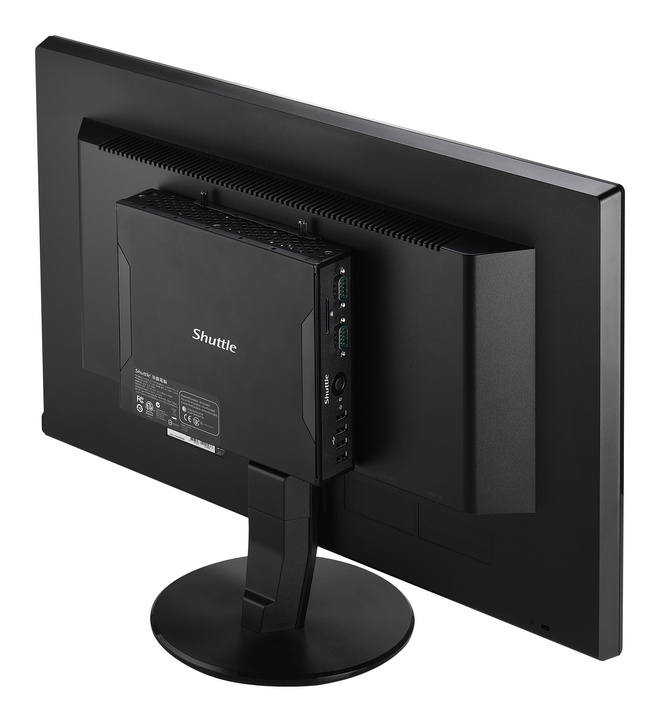

| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL, CCC |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 8, Windows 7, Windows XP, Linux |
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick |
Power
| Specification | Value |
|---|---|
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.43 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| DC input voltage | 19 V |
| Dimensions (WxDxH) | 39.5 x 200 x 165 mm |
| Number of products included | 1 pc(s) |
| Power LED | Yes |
