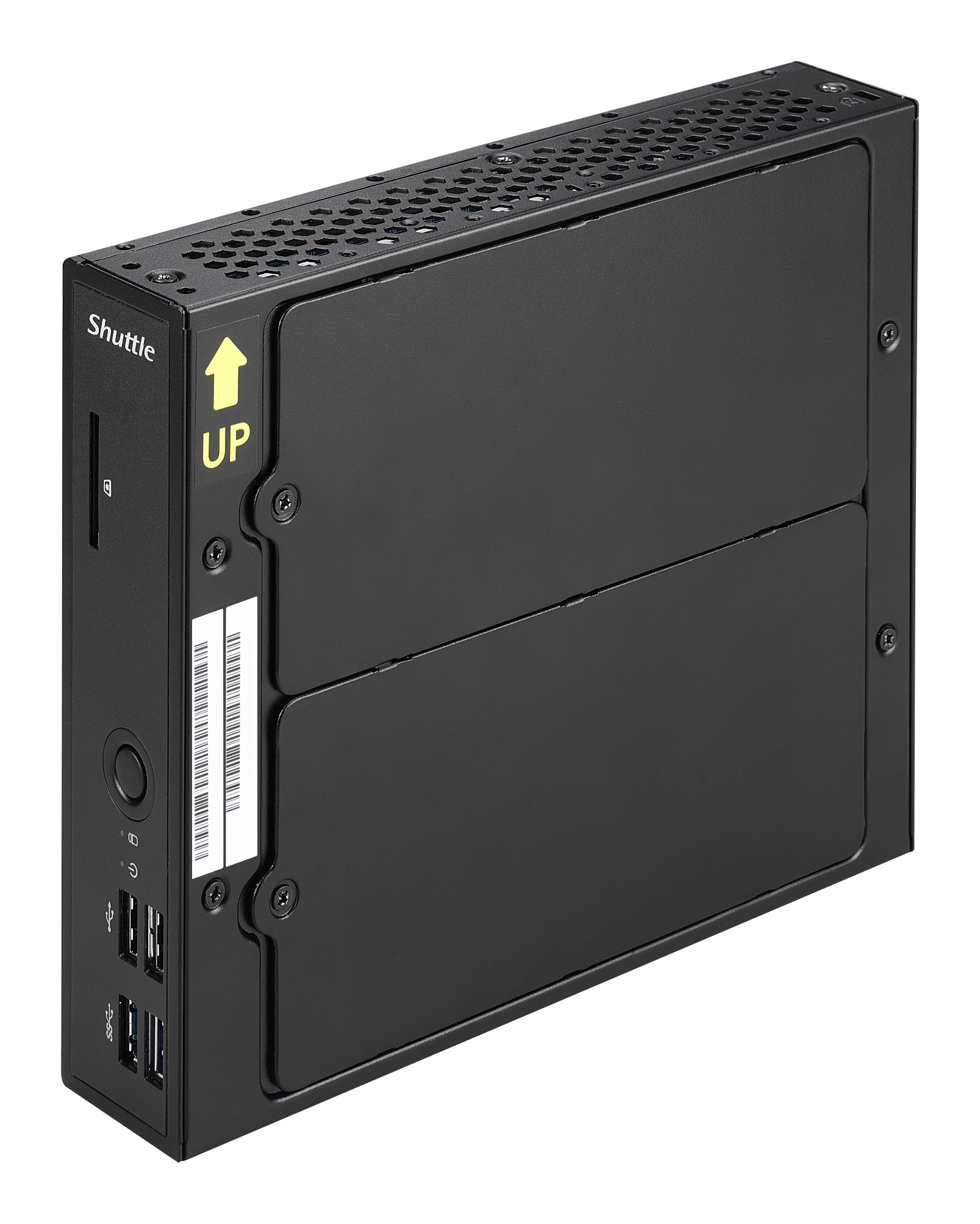

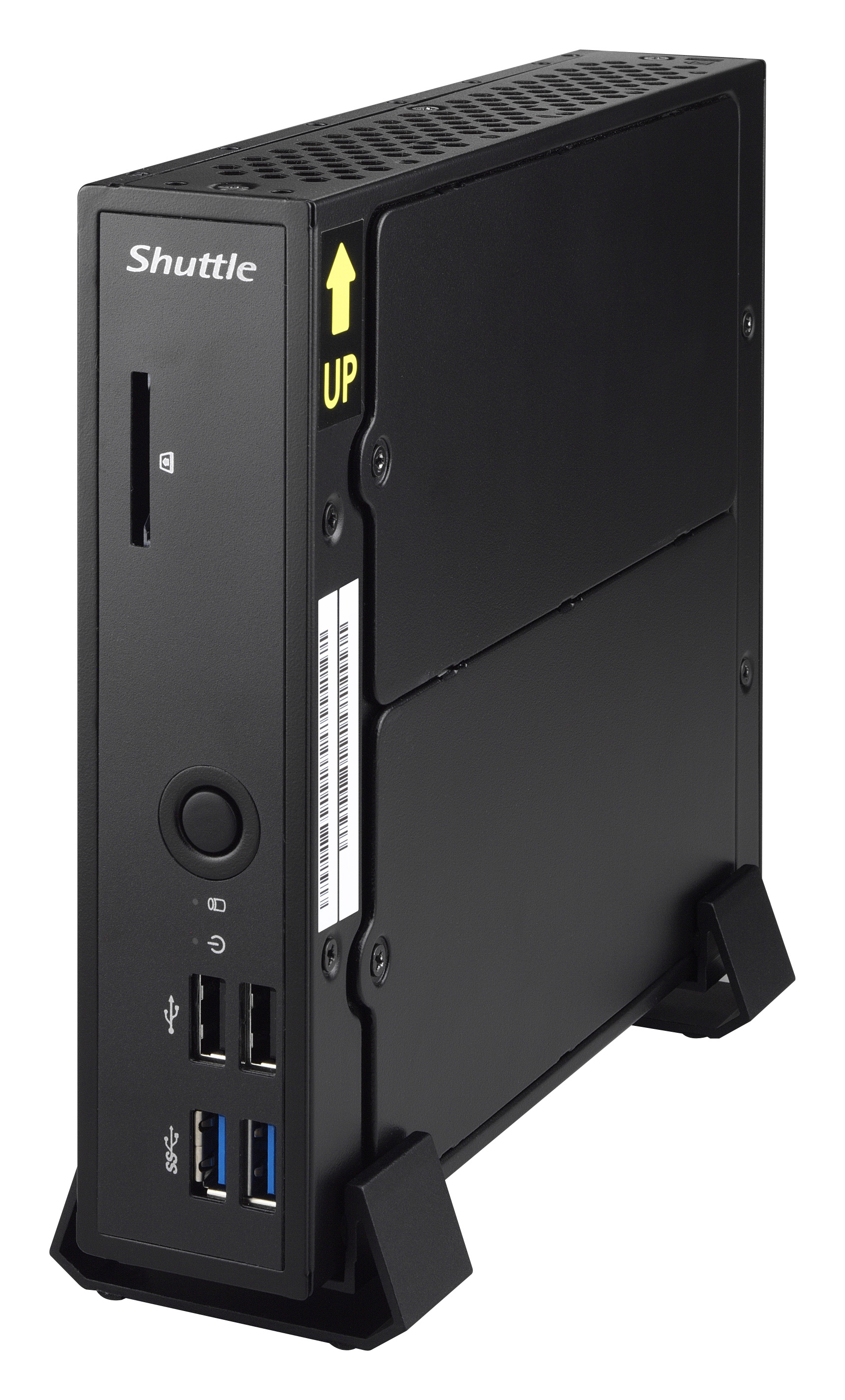

Shuttle DS407T PC/workstation barebone Nettop Black 1007U Intel® NM70 Express BGA 1023

1.5 GHz

Model DS407TEAN 887993000114

108 specifications

ProcessorIntel® Celeron®
TypeMini PC barebone
OSNo
Weight1.43 kg
ColourBlack
Built-in processorYes

See all specifications

Overview

Processor: Intel® Celeron®
Type: Mini PC barebone
OS: No
Weight: 1.43 kg
Colour: Black
Built-in processor: Yes

Brand: Shuttle
Category: PC/Workstation Barebones
Model: DS407T
Part number: DS407T
EAN / UPC: 887993000114
Also known as: Shuttle DS407T PC/workstation barebone Nettop Black 1007U Intel® NM70 Express BGA 1023 1.5 GHz

Specifications

108 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	1007U
Processor cores	2
Processor threads	2
Processor frequency	1.5 GHz
Processor lithography	22 nm
L3 cache	2 MB
Thermal Design Power (TDP)	17 W
CPU configuration (max)	1
Processor codename	Ivy Bridge
Processor series	Intel Celeron 1000 series for Mobile

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	16 GB
Memory channels	Dual-channel
Supported memory clock speeds	1333,1600 MHz
Supported memory types	DDR3-SDRAM

Storage

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	1
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics

Performance

Specification	Value
Motherboard chipset	Intel® NM70 Express
Processor socket	BGA 1023
Number of processors supported	1
BIOS type	UEFI AMI
Audio output channels	5.1 channels
Audio system	Realtek ALC 662

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek 8111G
Networking features	Gigabit LAN, WLAN

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	1.3
VGA (D-Sub) ports quantity	0
DVI port	Yes
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	2.0
PCI Express configurations	1x16, 2x8, 1x8+2x4

Design

Specification	Value
Chassis type	Nettop
Product colour	Black
Cooling type	Passive
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	100 x 75 mm
Product type	Mini PC barebone
Safety	CB, BSMI, ETL

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Compatible operating systems	Windows 8, Windows 7, Windows XP, Linux
Operating system installed	No

Certificates

Specification	Value
Certification	FCC, CE, BSMI, C-Tick

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output current	3.42 A
AC adapter output voltage	19 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	65 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions

Specification	Value
Width	200 mm
Depth	39.5 mm
Height	165 mm
Weight	1.43 kg
Package weight	2.13 kg

Packaging content

Specification	Value
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Drivers included	Yes
