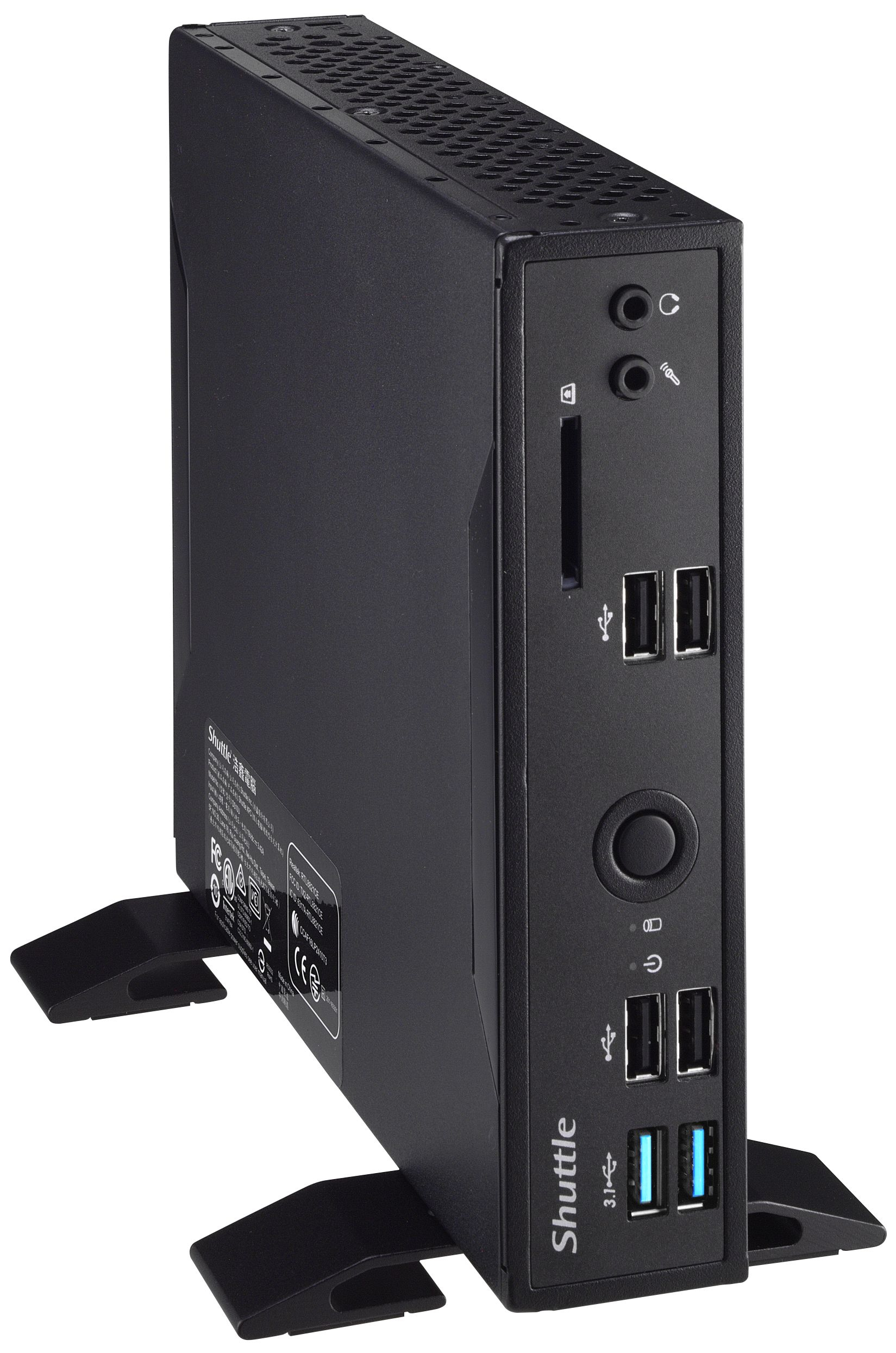

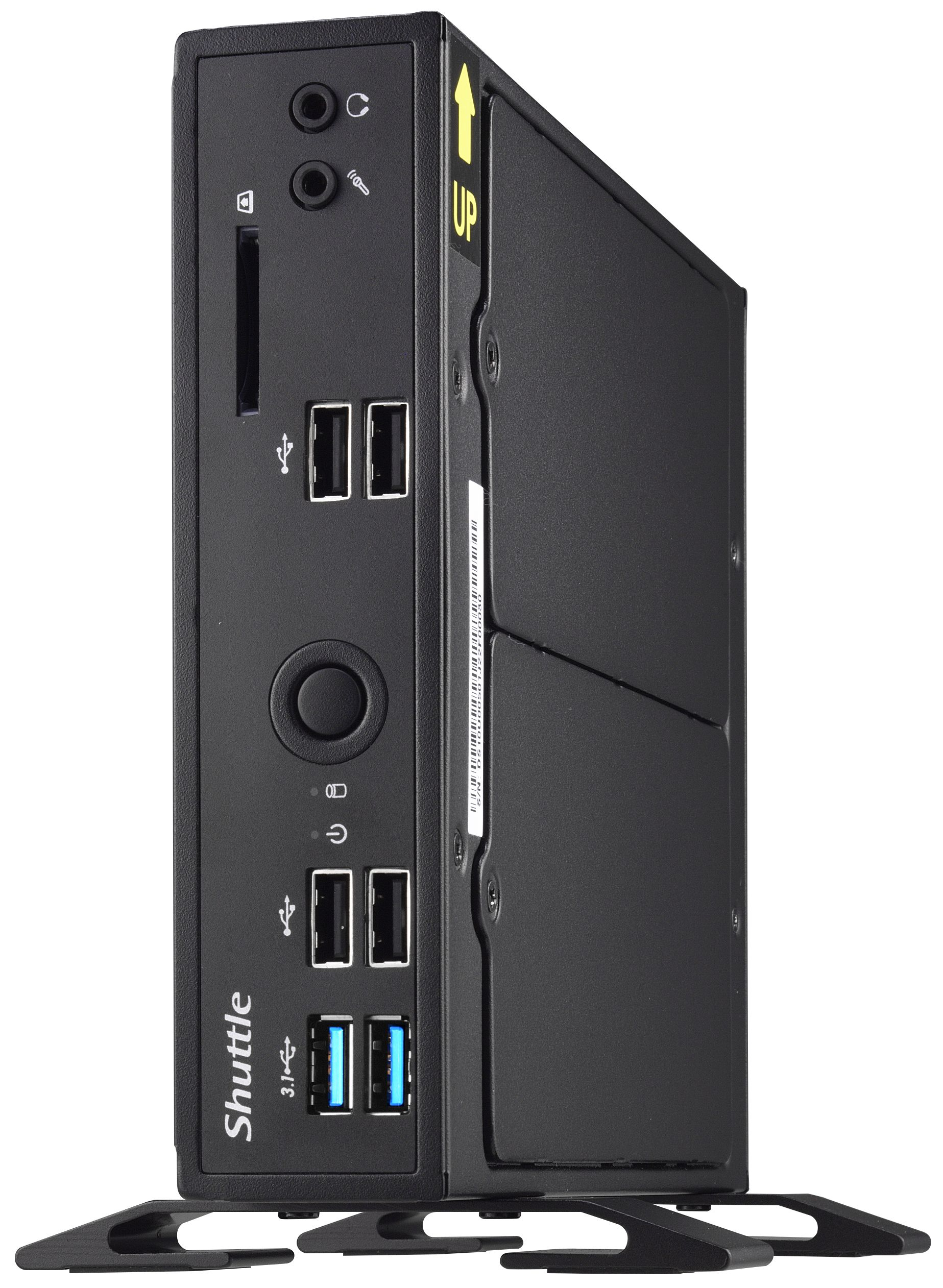

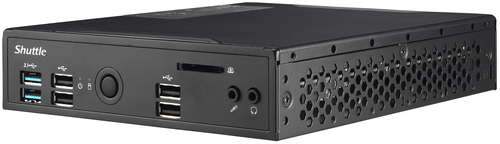

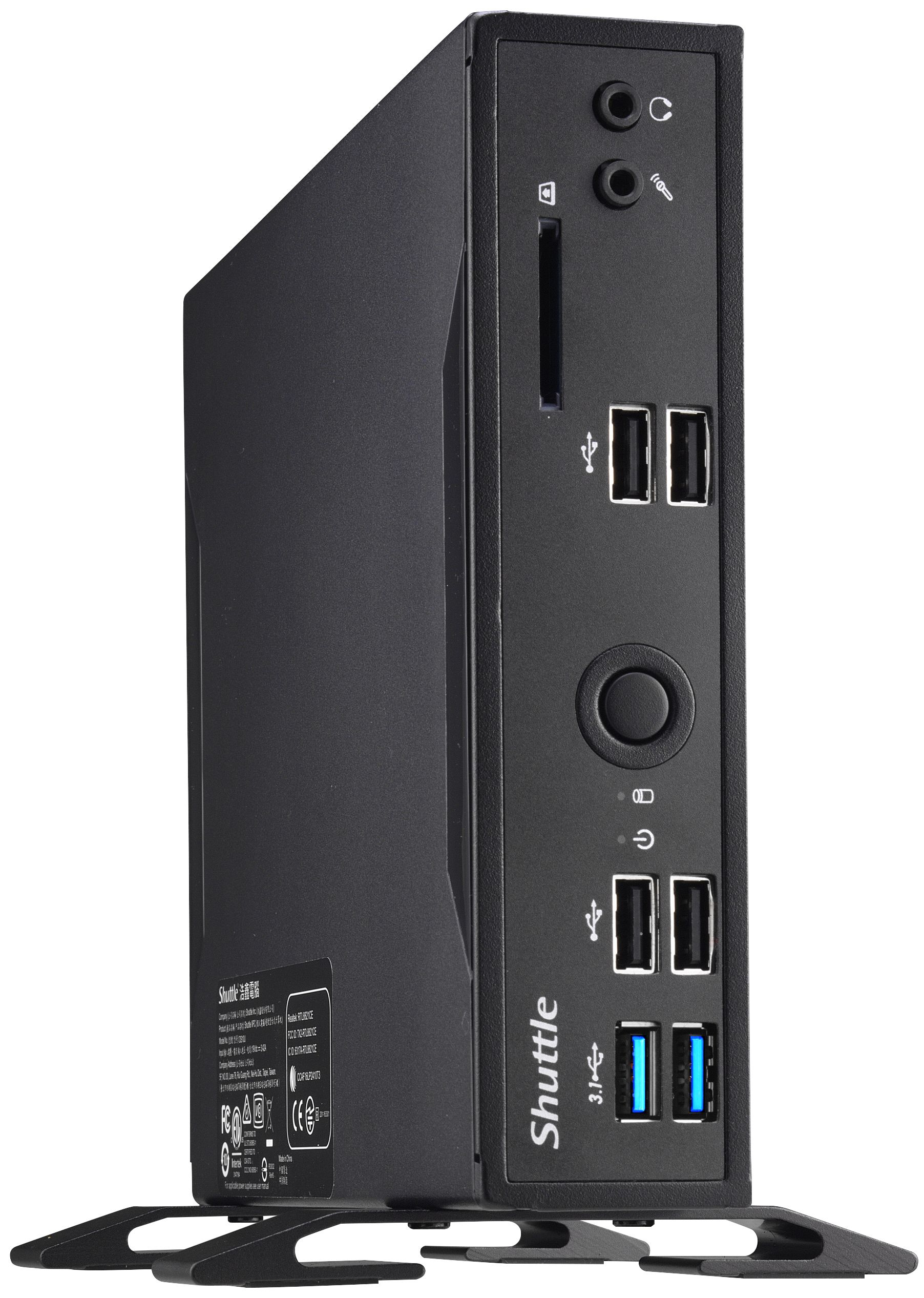

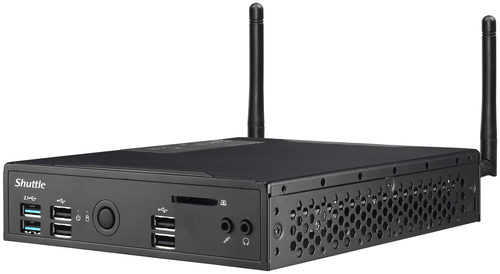

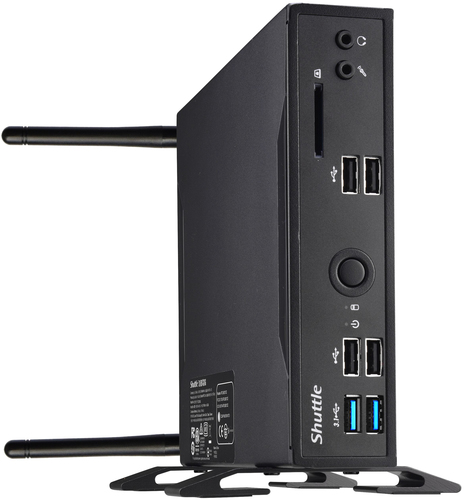

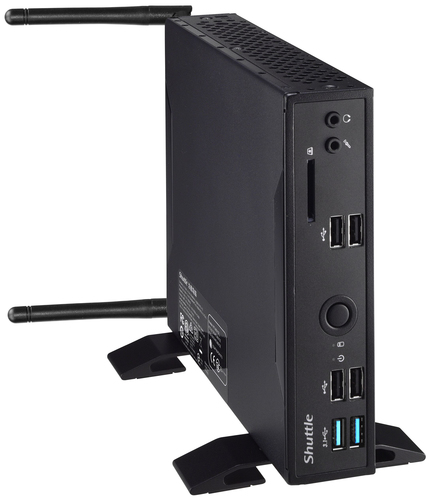

Shuttle XPC slim Barebone DS10U, Celeron 4205U, 1xHDMI,1xDP,1x VGA, 2x LAN,1xCOM, 8x USB, fanless, 24/7 permanent operation
Shuttle

XPC slim Barebone DS10U, Celeron 4205U, 1xHDMI,1xDP,1x VGA, 2x LAN,1xCOM, 8x USB, fanless, 24/7 permanent operation

Model DS10UEAN 887993005638

109 specifications
  • ProcessorIntel® Celeron®
  • OSNo
  • Weight1.5 kg
  • ColourBlack
  • Built-in processorYes
  • Memory slots typeSO-DIMM
See all specifications

Overview

Processor
Intel® Celeron®
OS
No
Weight
1.5 kg
Colour
Black
Built-in processor
Yes
Memory slots type
SO-DIMM
Brand
Shuttle
Model
DS10U
Part number
DS10U
EAN / UPC
887993005638, 887993001883, 887993002521, 887993002873 +2 more
Also known as
Shuttle XPC slim Barebone DS10U, Celeron 4205U, 1xHDMI,1xDP,1x VGA, 2x LAN,1xCOM, 8x USB, fanless, 24/7 permanent operation

Specifications

109 specifications in 19 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor model4205U
Processor cores2
Processor threads2
Processor frequency1.8 GHz
Processor lithography14 nm
Thermal Design Power (TDP)15 W
CPU configuration (max)1
Processor codenameWhiskey Lake

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2133,2400 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® HD Graphics 610

Performance

Motherboard chipsetIntel SoC
Processor socketBGA 1528
Number of processors supported1
BIOS typeUEFI AMI
Audio output channels2.0 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version4.0
LAN controllerIntel® I211, Intel I219LM

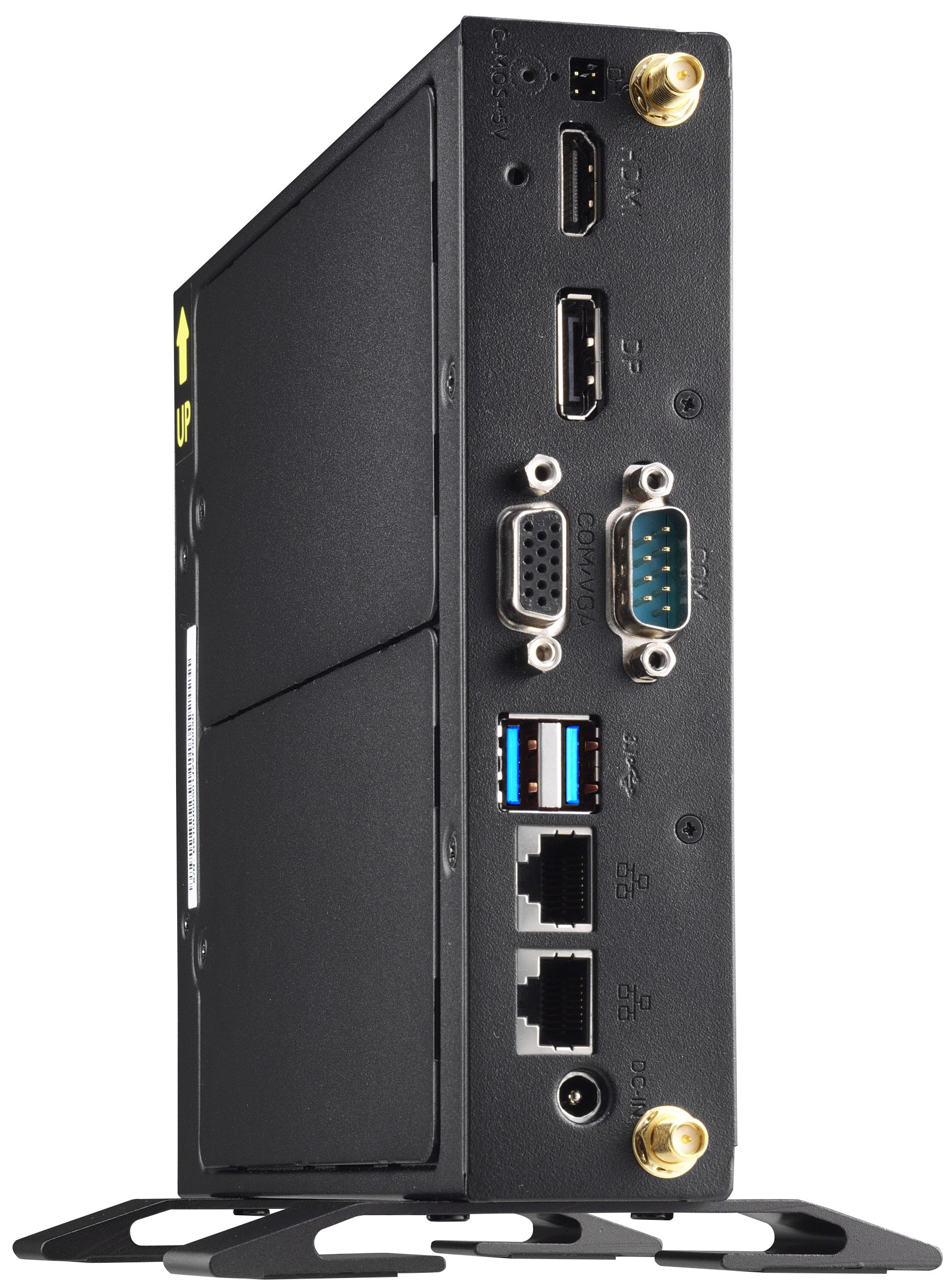

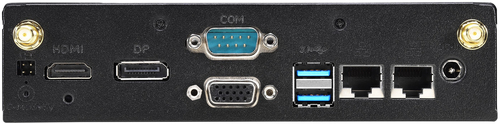

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.2
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity1
DC-in jackYes

Expansion slots

PCI Express slots version2.0
PCI Express configurations1x4, 2x2, 1x2+2x1, 4x1

Design

Chassis type1.3L sized PC
Product colourBlack
Cooling typePassive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
SafetyETL, CB, BSMI

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Flex Memory AccessYes
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost TechnologyNo
Thermal Monitoring TechnologiesYes

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Certificates

CertificationFCC, CE, BSMI, C-Tick, ErP

Power

Power supply typeExternal AC adapter
AC adapter output current3.42 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width165 mm
Depth200 mm
Height39.5 mm
Weight1.5 kg
Package weight2.2 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
