Shuttle DQ170 PC/workstation barebone Nettop Black Intel® Q170 LGA 1151 (Socket H4)

Model DQ170EAN 887993000879

66 specifications

Overview

Brand: Shuttle
Category: PC/Workstation Barebones
Model: DQ170
Part number: DQ170
EAN / UPC: 887993000879, 5057103189809
Also known as: Shuttle DQ170 PC/workstation barebone Nettop Black Intel® Q170 LGA 1151 (Socket H4)

66 specifications in 15 groups

Specification	Value
Built-in processor	No

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	32 GB
Memory channels	Dual-channel
Memory voltage	1.35 V
Supported memory clock speeds	1333,1600 MHz
Supported memory types	DDR3L-SDRAM

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	1
Card reader integrated	Yes
Compatible memory cards	SD

Specification	Value
On-board graphics card	No
Graphics card family	Intel

Specification	Value
Motherboard chipset	Intel® Q170
Processor socket	LGA 1151 (Socket H4)
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Audio output channels	5.1 channels
Audio system	HD

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

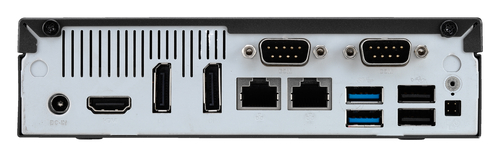

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Yes

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8 Enterprise x64, Windows 8 Pro x64, Window
Linux operating systems supported	Yes
Operating system installed	No

Specification	Value
Certification	FCC, CE, BSMI, C-Tick, RoHS, ErP

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C

Specification	Value
AC adapter included	Yes
