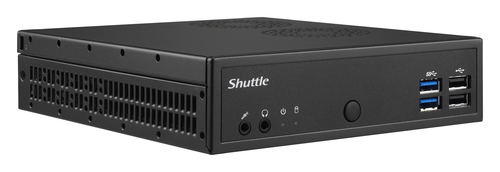

Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090
2 GHz
Model DL10JPart no. PEB-DL10J001EAN 818215945920
99 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- Weight1.3 kg
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1.3 kg
- Colour
- Black
- Built-in processor
- Yes
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DL10J
- Part number
- PEB-DL10J001
- EAN / UPC
- 818215945920, 887993001418, 887993002446
- Also known as
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 2 GHz
Specifications
99 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J4005 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 2 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 10 W |
| CPU configuration (max) | 1 |
| Processor codename | Gemini Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 600 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1090 |
| BIOS type | UEFI AMI |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| LAN controller | Intel® I211 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10 (64-bit) Linux |
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, RCM, VCCI, RED, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 2.1 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Processor ARK ID | 128992 |
What people say
Reviews & ratings
Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090
No reviews yet
Be the first to tell others how Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090
All pc/workstation barebones comparisons- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsShuttle XPС slim DH02U7 PC/workstation bareboneCompare specs
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsShuttle XPС slim DH02U3 PC/workstation bareboneCompare specs
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsShuttle XPС slim DH02U5 PC/workstation barebone Black i5-7200U BGA 1356Compare specs
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsShuttle XPC slim Barebone DH02U, Intel Celeron 3865U, 4x HDMI 2.0b 1x LAN, 1x COM, incl. VESA 24/7 permanent operationCompare specs

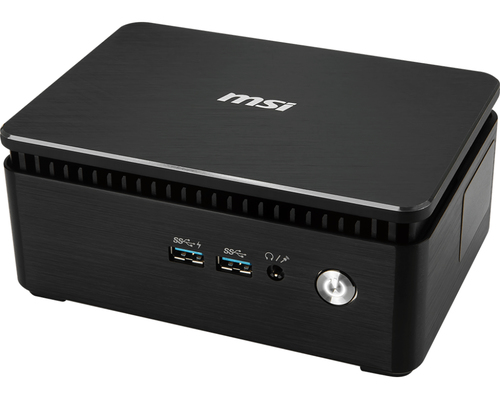

- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsMSI Cubi N 8GL-006BDECompare specs
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsMSI Cubi N 8GL-005BDECompare specs
- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsMSI Cubi 3 Silent S-005BCompare specs

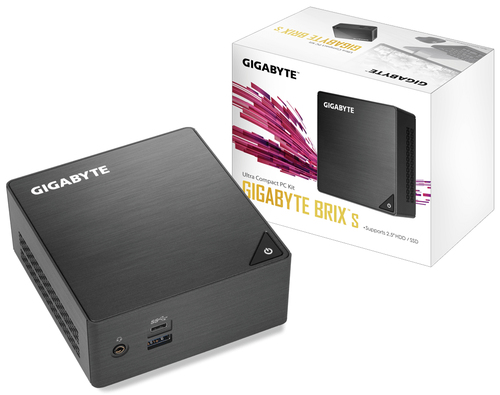

- Shuttle XPС slim DL10J Black J4005 Intel SoC BGA 1090 vsGIGABYTE GB-BLCE-4105 PC/workstation barebone UCFF Black J4105 BGA 1090Compare specs
